Polyx™

Polyx™ polyester acoustic panel is made by a process of tumbling, needle-punching, and baking low and high melting-point polyester fibres. The high-density fibrous network absorbs sounds and reduces reverberation.

A spacious indoor area with a large, wavy ceiling design above a water body. The room is filled with greenery, including trees and plants, with tiered seating in the background and structures resembling tropical huts near the water.

Materials

A multi-colored felt material display arranged in a circular pattern, consisting of different triangular fabric pieces in varying shades of green, blue, gray, and purple.

Wool Felt

Wool felt is the oldest textile material and at the same time a high-tech product. BWF Feltec offers a unique product diversity with traditional wool felts and a wide variety of natural as well as synthetic needle felts.

A minimalist arrangement of green leaves scattered alongside brown and green rectangular felt swatches on a white surface.

100% PET

Polyx™ Board comes in 4 different thickness: 6mm, 9mm, 12mm and 25mm. They are lightweight, easy to cut and install. They can be easily installed on walls and hung vertically or horizontally from the ceiling as baffles or clouds respectively.

Diagonal

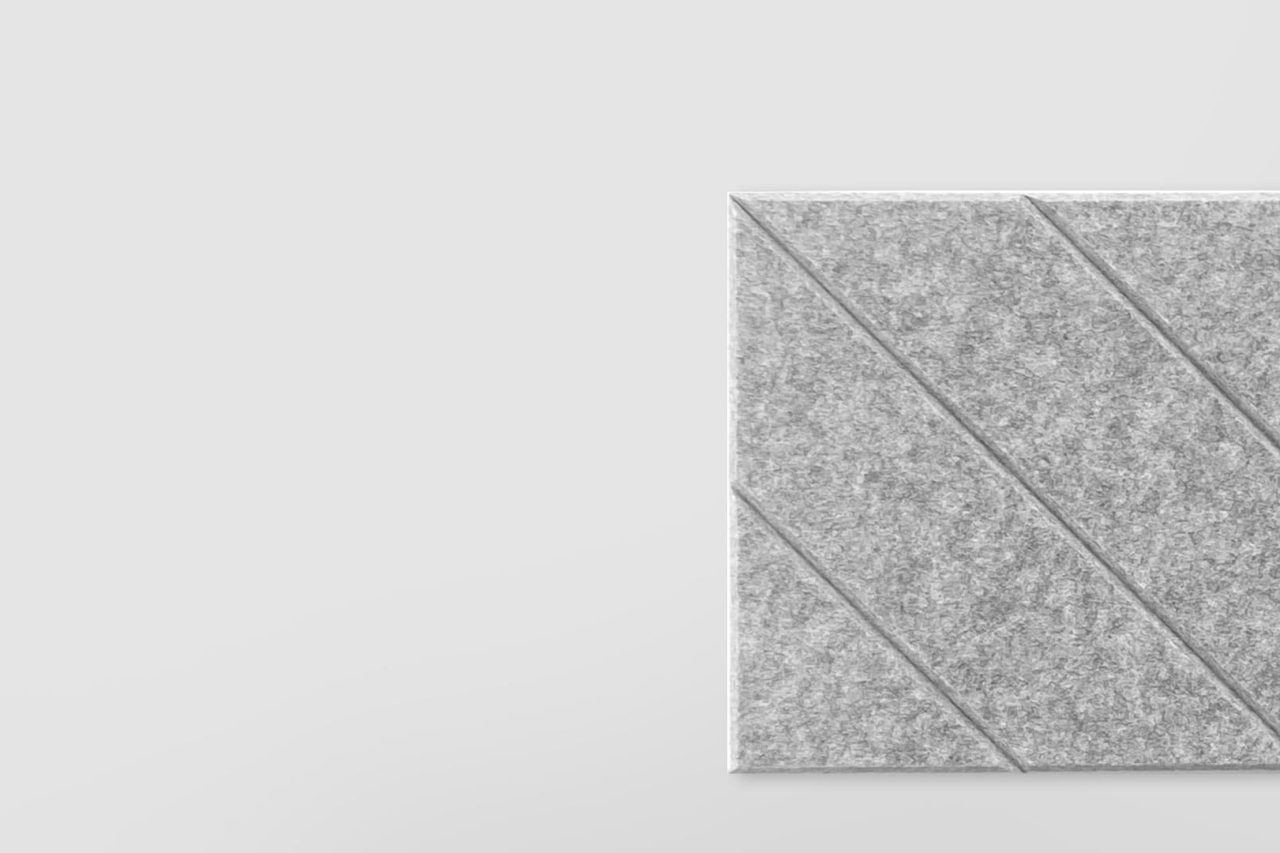

Diagonal-300

Diagonal 300

Polyx™ Diagonal 300 panels have grooved lines for texture, with 12mm polyester absorbing sound and reducing reverberation.

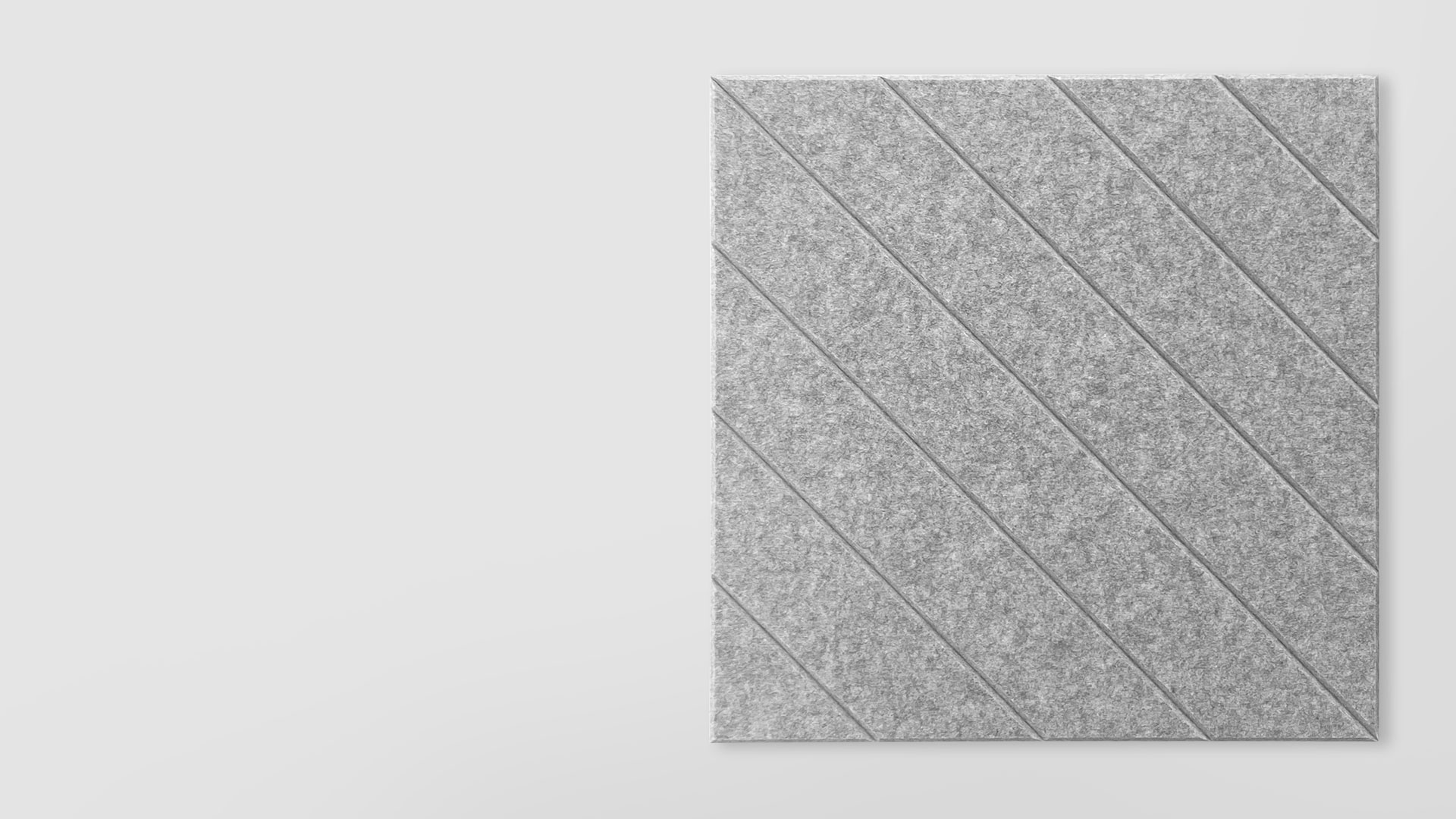

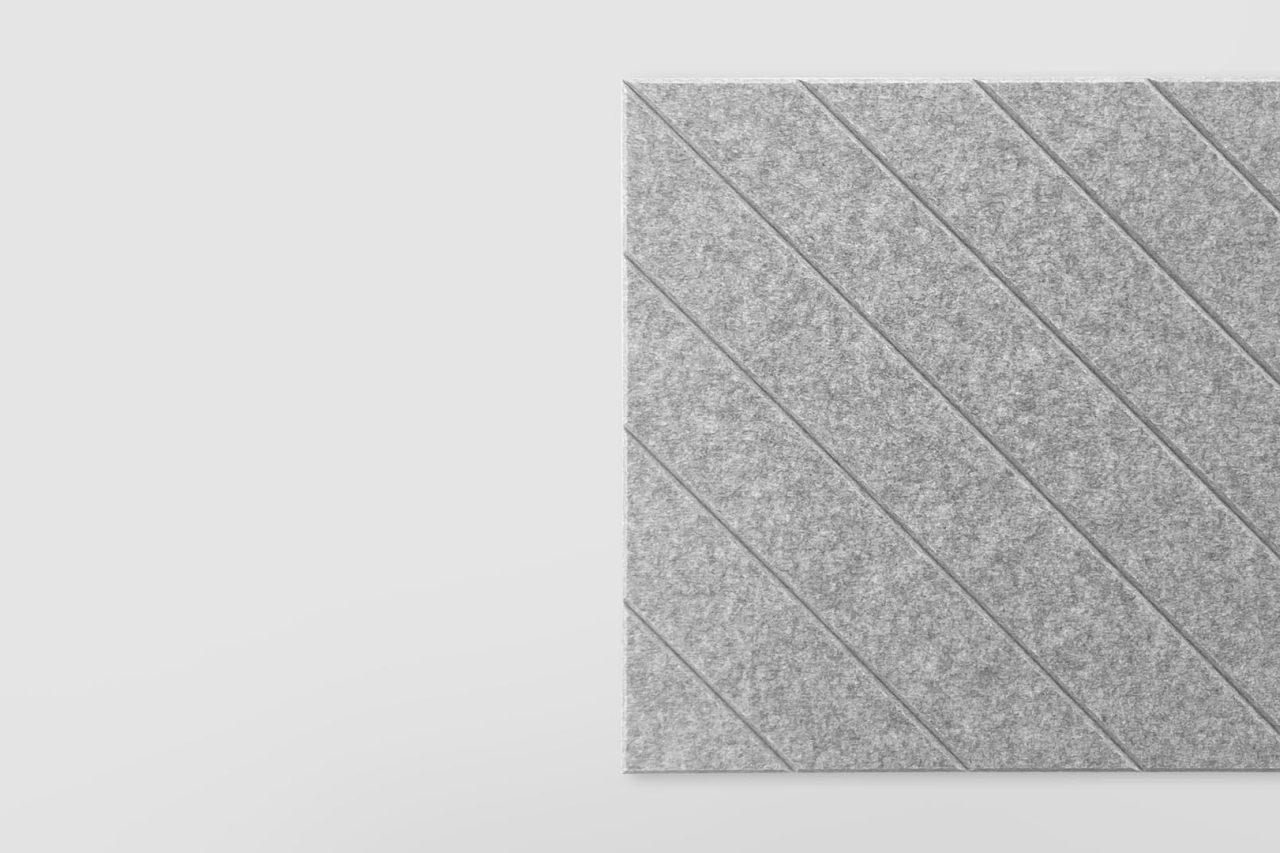

Diagonal-600

Diagonal 600

Polyx™ Diagonal 600 panels have grooved lines for texture, with 12mm polyester absorbing sound and reducing reverberation.

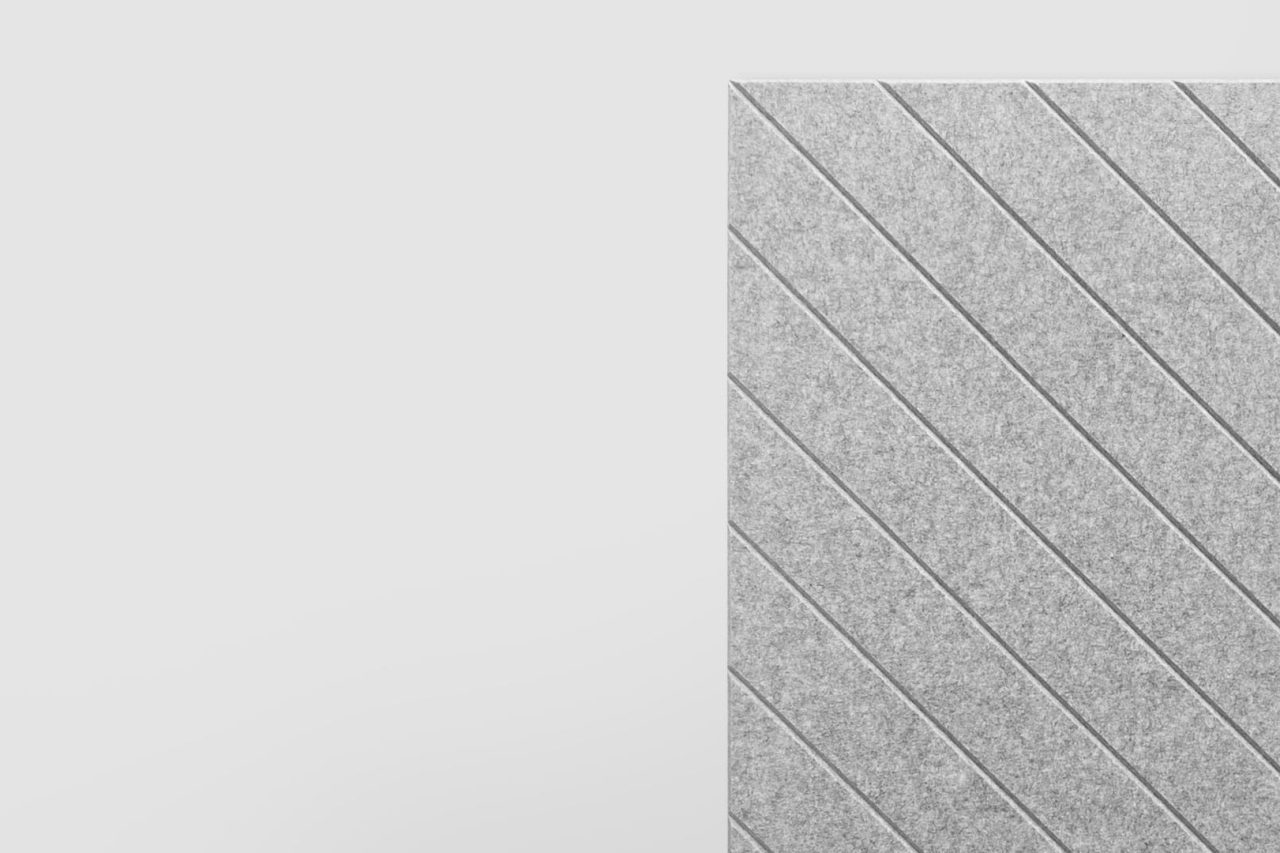

Diagonal-1200

Diagonal 1200

Polyx™ Diagonal 1200 panels have grooved lines for texture, with 12mm polyester absorbing sound and reducing reverberation.

Horizon

Horizon-20L

Horizon 20L

Polyx™ Horizon 20L panels feature horizontal grooves for a sleek, expansive look, with high-density polyester absorbing sound and reducing reverberation.

Horizon-50

Horizon 50

Polyx™ Horizon 50 panels feature horizontal grooves for a sleek, expansive look, with high-density polyester absorbing sound and reducing reverberation.

polyx-horizon-50l

Horizon 50L

Polyx™ Horizon 50L panels feature horizontal grooves for a sleek, expansive look, with high-density polyester absorbing sound and reducing reverberation.

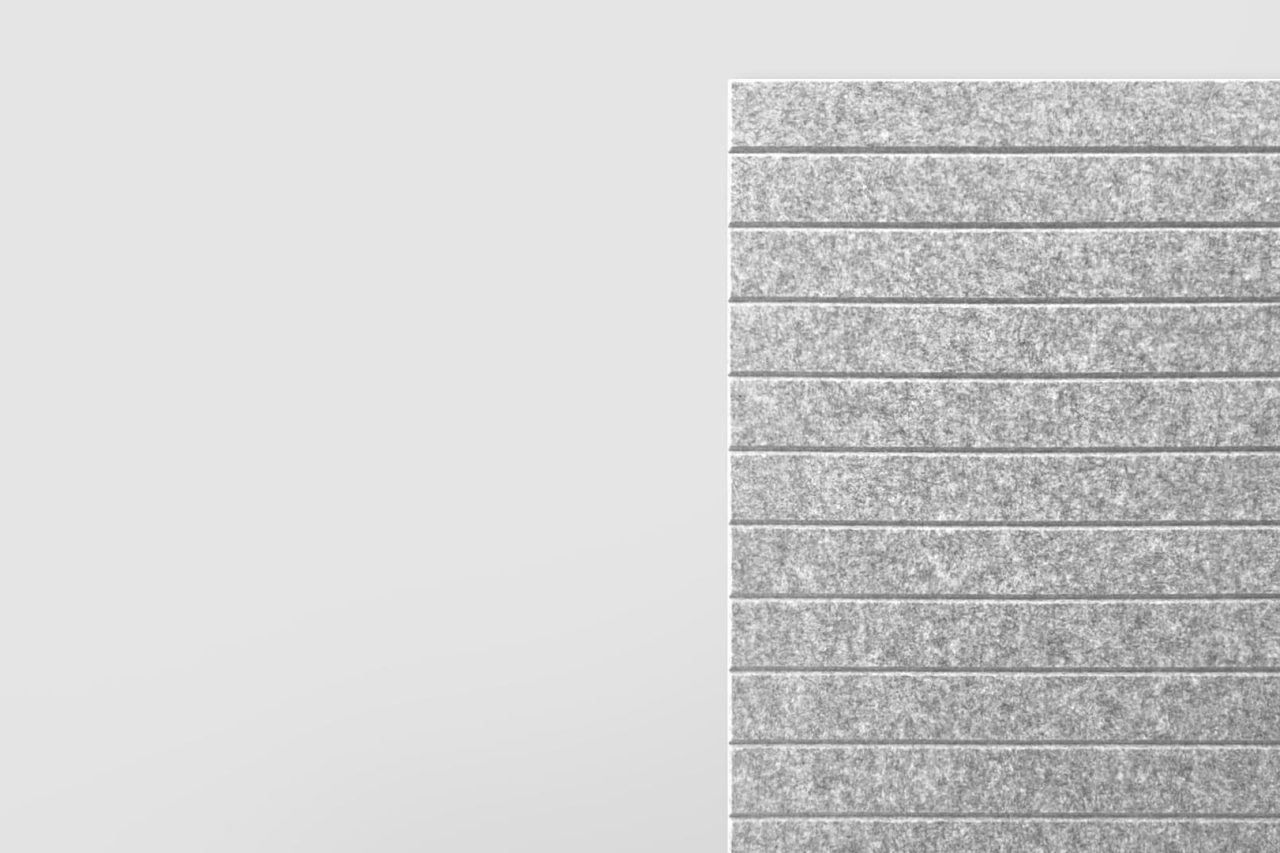

Horizon-75

Horizon 75

Polyx™ Horizon 75 panels feature horizontal grooves for a sleek, expansive look, with high-density polyester absorbing sound and reducing reverberation.

Horizon-75L

Horizon 75L

Polyx™ Horizon 75L panels feature horizontal grooves for a sleek, expansive look, with high-density polyester absorbing sound and reducing reverberation.

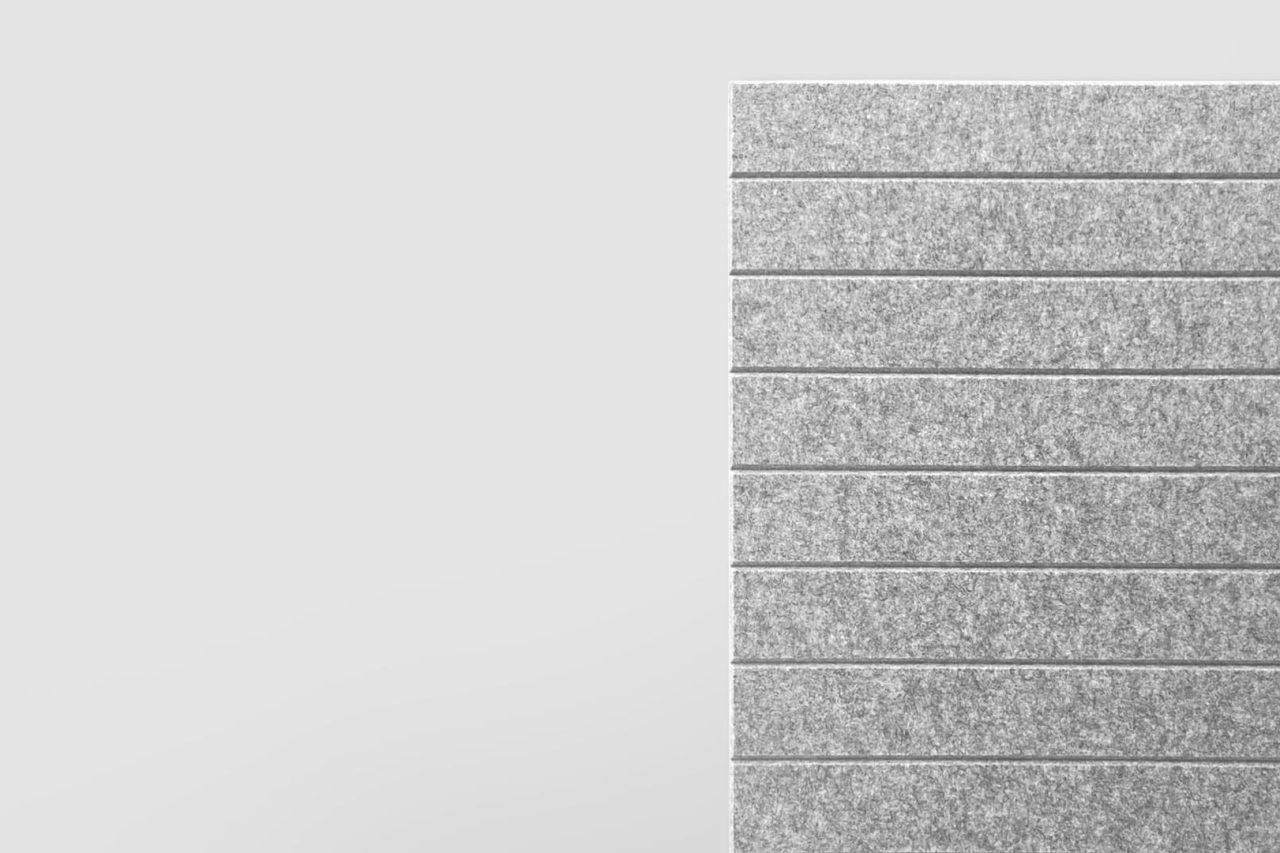

Horizon-100

Horizon 100

Polyx™ Horizon 100 panels feature horizontal grooves for a sleek, expansive look, with high-density polyester absorbing sound and reducing reverberation.

polyx-horizon-100l

Horizon 100L

Polyx™ Horizon 100L panels feature horizontal grooves for a sleek, expansive look, with high-density polyester absorbing sound and reducing reverberation.

Horizon-30L

Horizon 30L

Polyx™ Horizon 30L panels feature horizontal grooves for a sleek, expansive look, with high-density polyester absorbing sound and reducing reverberation.

Horizon-150

Horizon 150

Polyx™ Horizon 150 panels feature horizontal grooves for a sleek, expansive look, with high-density polyester absorbing sound and reducing reverberation.

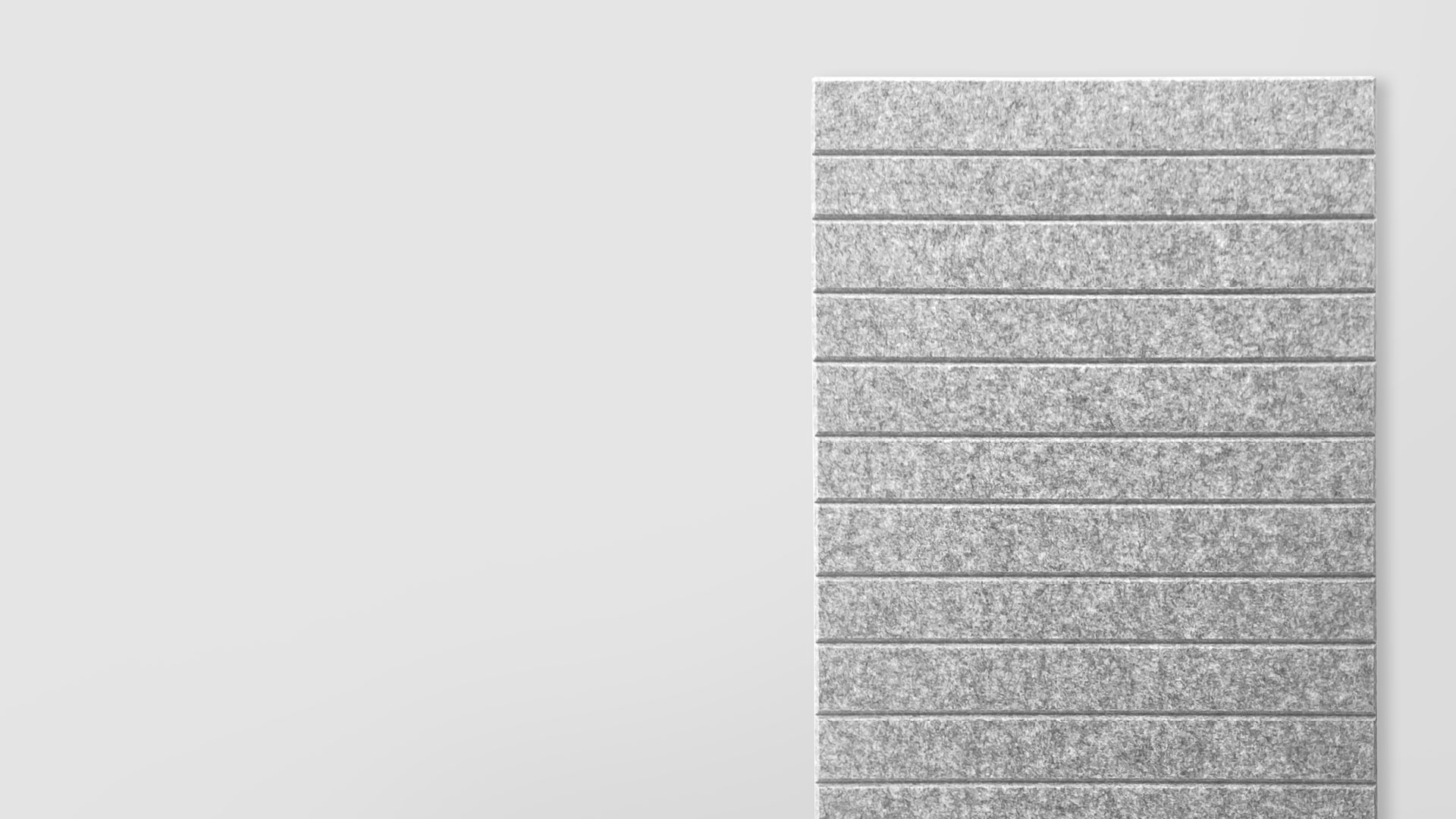

Horizon-150L

Horizon 150L

Polyx™ Horizon 150L panels feature horizontal grooves for a sleek, expansive look, with high-density polyester absorbing sound and reducing reverberation.

Vertical

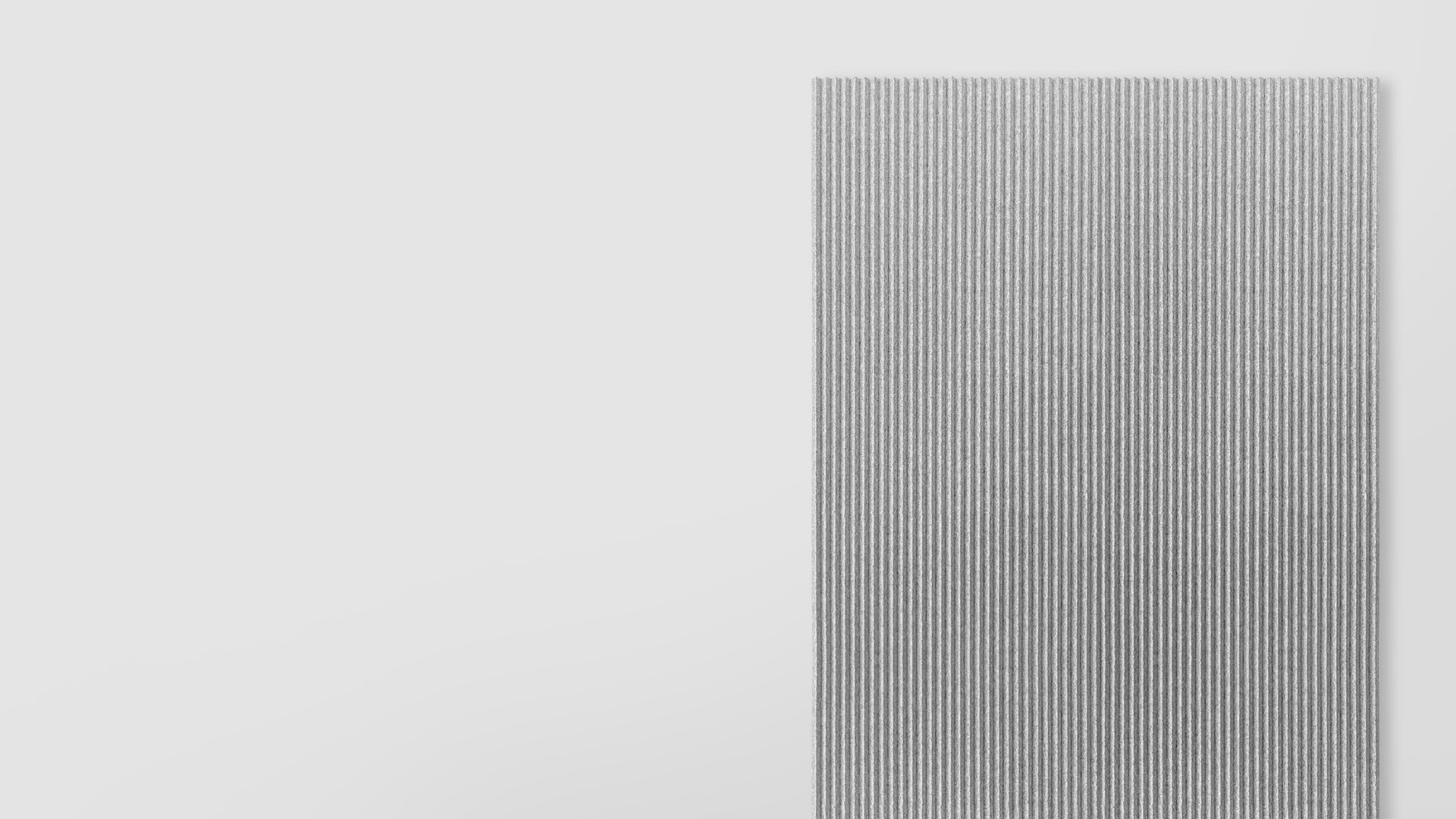

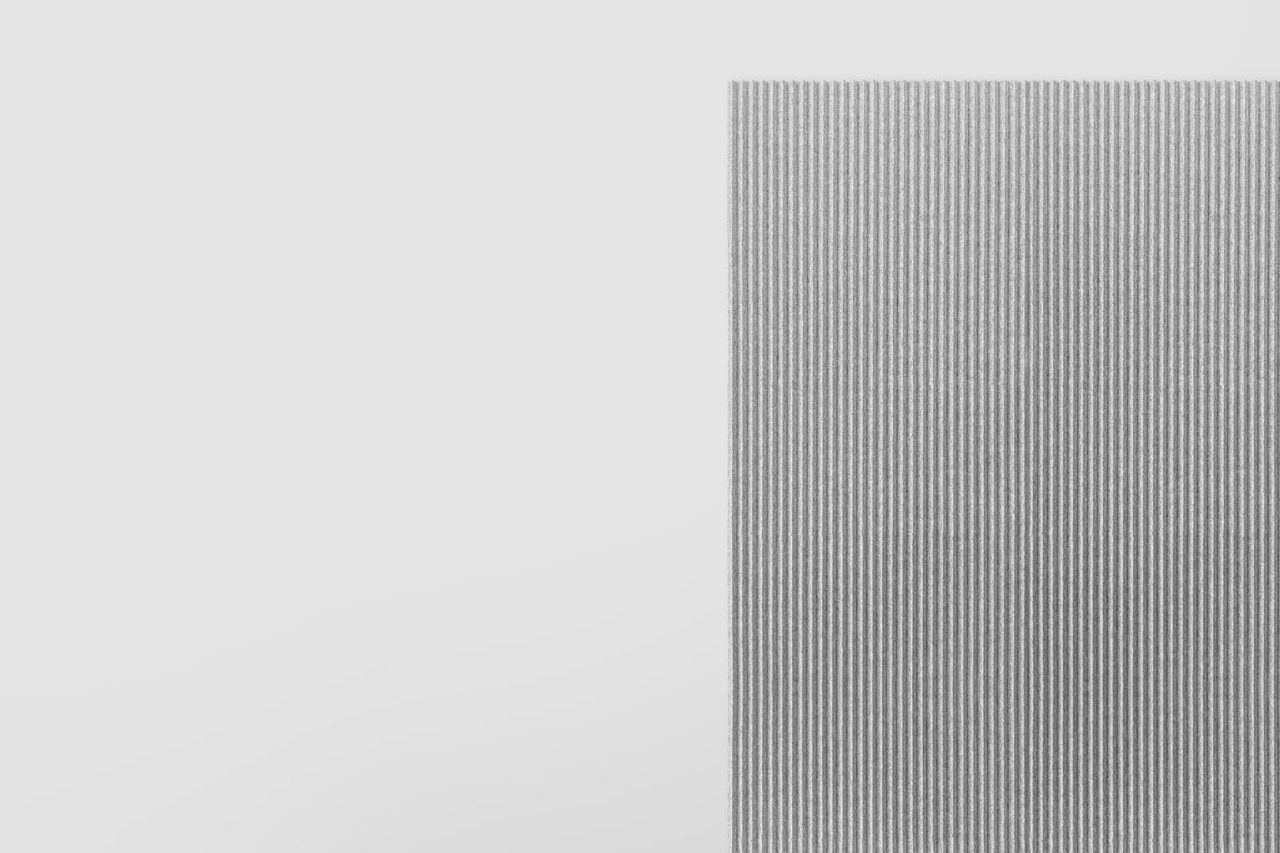

Vertical-20L

Vertical 20L

A graph showing absorption coefficient (α) versus 1/3 octave center frequency (Hz) for ISO 354 with 12mm Polyx™, with α ranging from 0 to 0.8 and frequency from 50 to 5000 Hz.

Polyx™ Vertical 20L panels feature vertical grooves to enhance height, with high-density polyester absorbing sound and reducing reverberation.

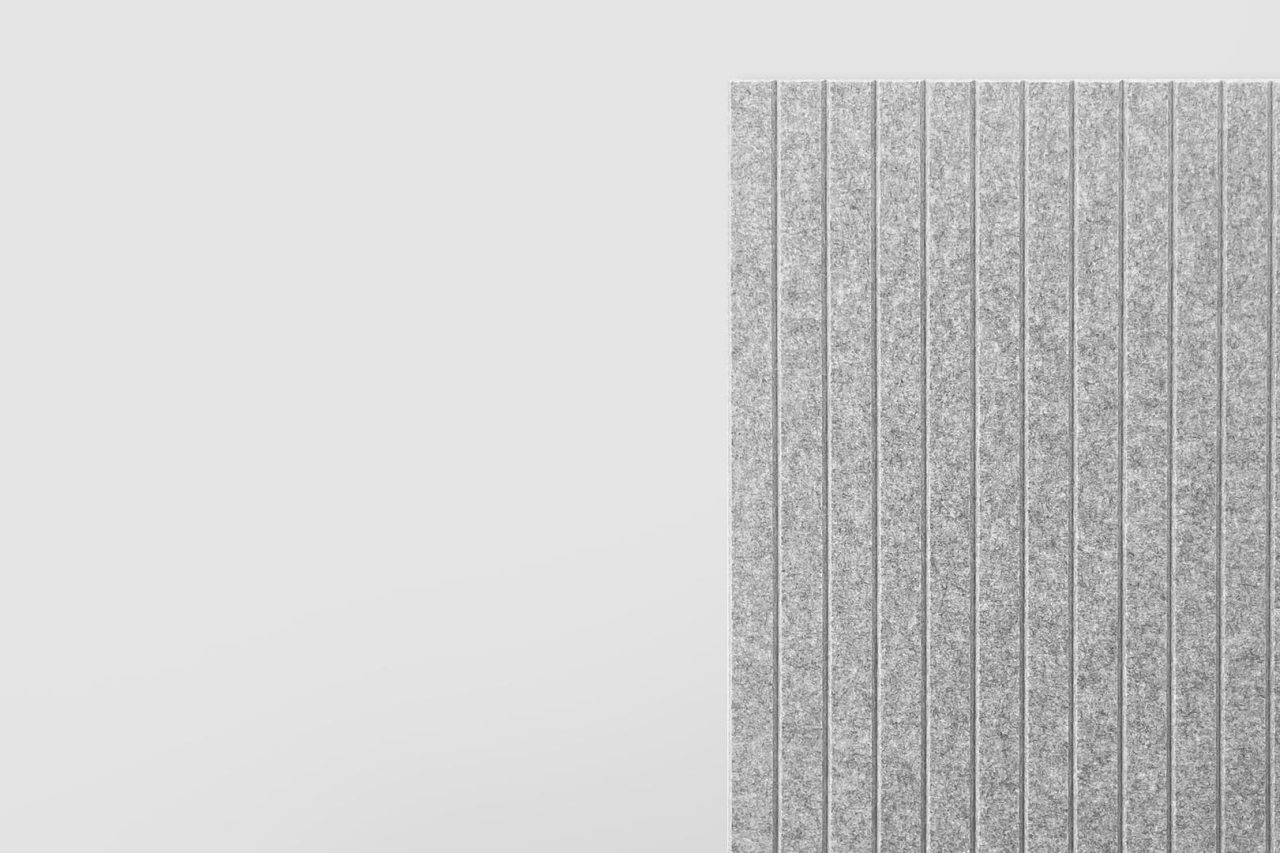

Vertical-50

Vertical 50

A graph displays absorption coefficient (α) versus 1/3 octave center frequency (Hz) for ISO 354 with 12mm Polyx™, showing values rising from 0.2 to around 0.5–0.7 as frequency increases from 50 Hz to 5000 Hz.

Polyx™ Vertical 50 panels feature vertical grooves to enhance height, with high-density polyester absorbing sound and reducing reverberation.

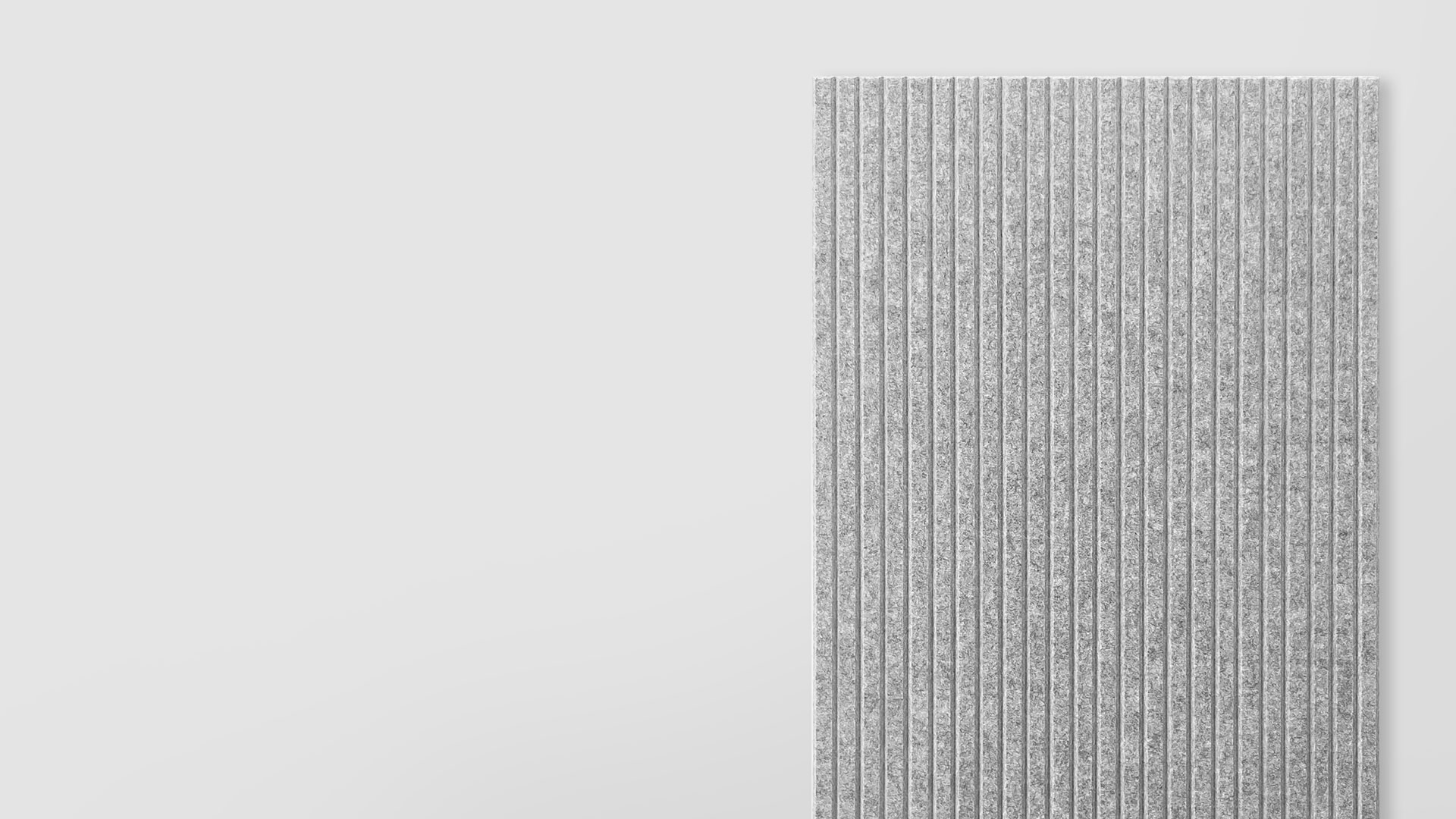

Vertical-50L

Vertical 50L

Polyx™ Vertical 50L panels feature vertical grooves to enhance height, with high-density polyester absorbing sound and reducing reverberation.

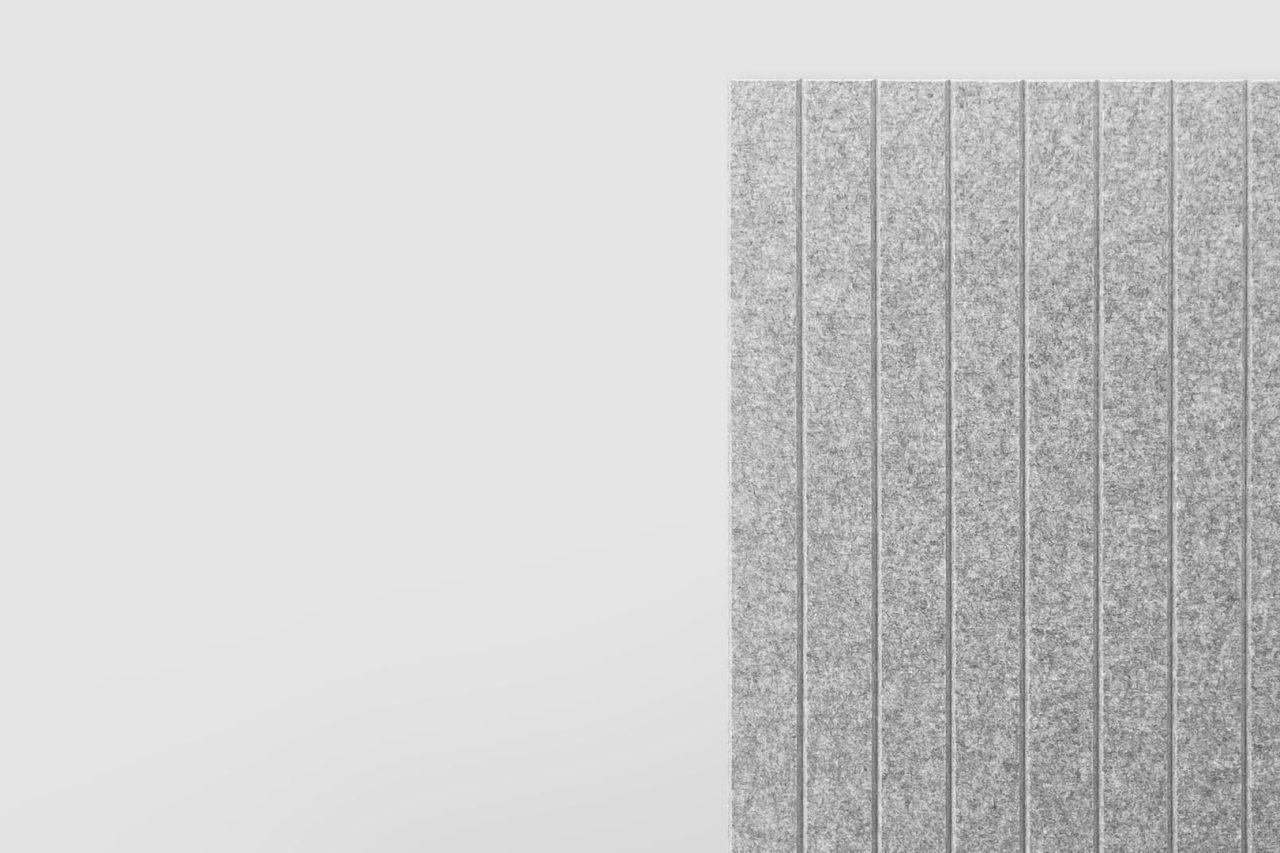

Vertical-75

Vertical 75

Polyx™ Vertical 75 panels feature vertical grooves to enhance height, with high-density polyester absorbing sound and reducing reverberation.

vertical-75l

Vertical 75L

Polyx™ Vertical 75L panels feature vertical grooves to enhance height, with high-density polyester absorbing sound and reducing reverberation.

Vertical-100

Vertical 100

Polyx™ Vertical 100 panels feature vertical grooves to enhance height, with high-density polyester absorbing sound and reducing reverberation.

Vertical-100L

Vertical 100L

Polyx™ Vertical 100L panels feature vertical grooves to enhance height, with high-density polyester absorbing sound and reducing reverberation.

Vertical-30L

Vertical 30L

A graph shows absorption coefficient (y-axis, 0 to 0.8) versus 1/3 octave center frequency (x-axis, 50 to 5000 Hz) for ISO 354 with 12mm Polyx. The curve fluctuates, peaking above 0.6 before 1250 Hz, then slightly drops.

Polyx™ Vertical 30L panels feature vertical grooves to enhance height, with high-density polyester absorbing sound and reducing reverberation.

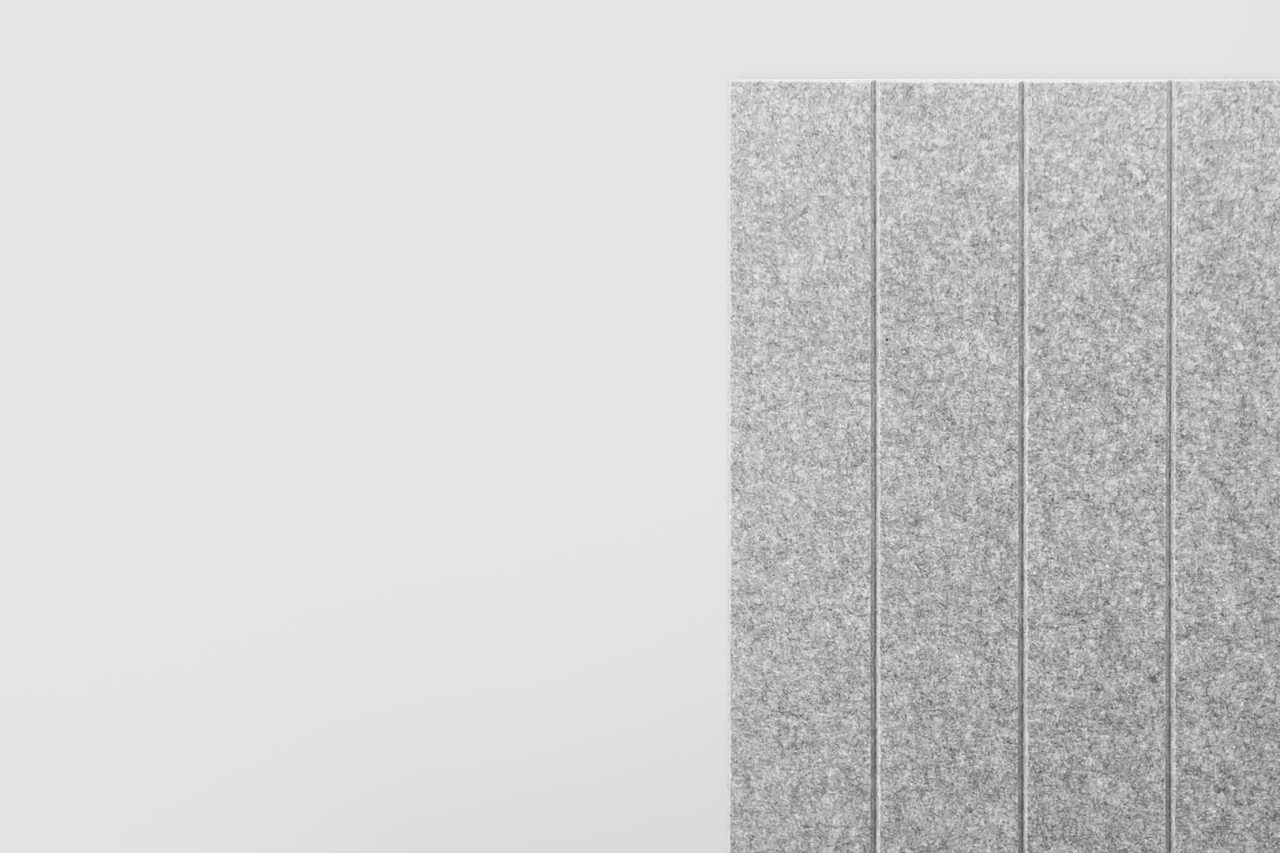

Vertical-150

Vertical 150

Polyx™ Vertical 150 panels feature vertical grooves to enhance height, with high-density polyester absorbing sound and reducing reverberation.

Vertical-150L

Vertical 150L

Polyx™ Vertical 150L panels feature vertical grooves to enhance height, with high-density polyester absorbing sound and reducing reverberation.

Loop & Circuit

Loop-300

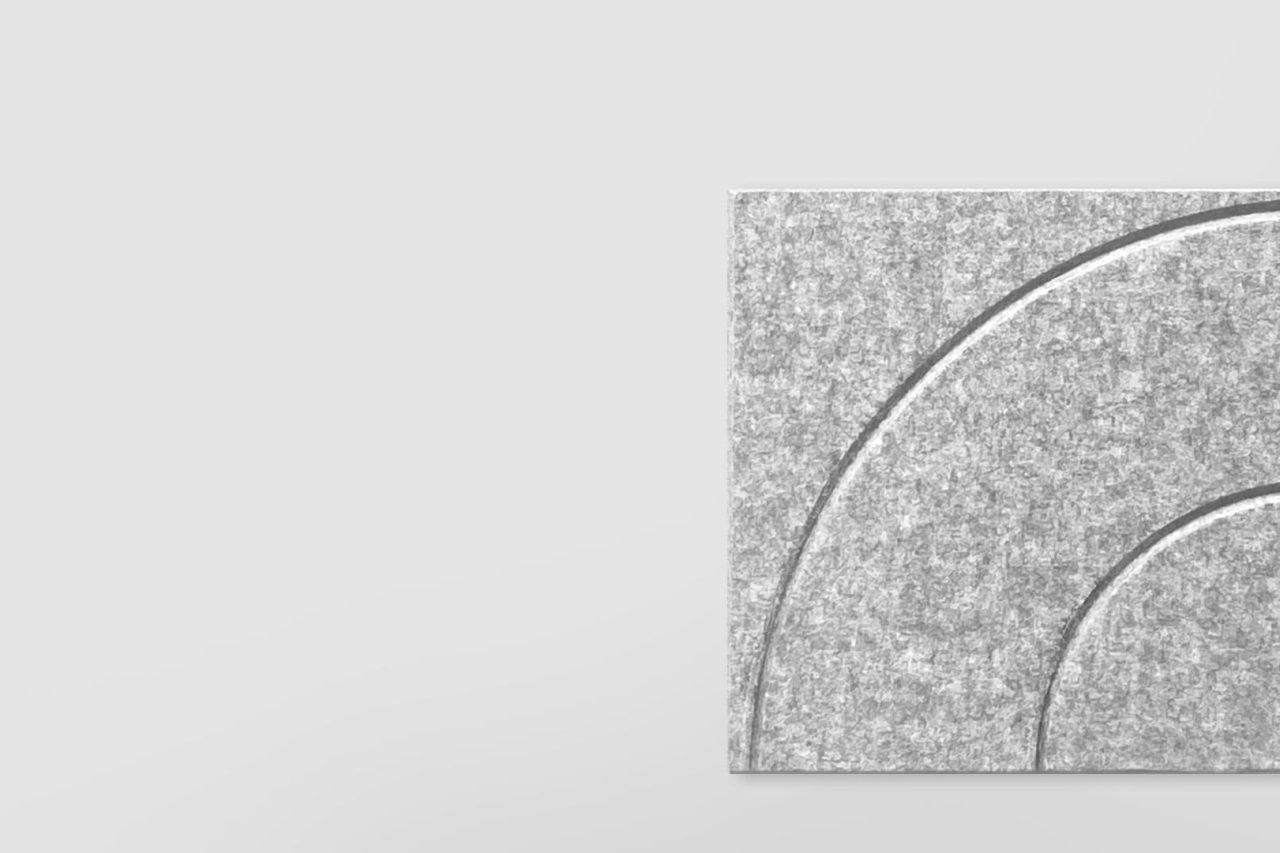

Loop 300

Polyx™ Loop 300 panels feature circular grooves for a rhythmic design, with high-density polyester absorbing sound and reducing reverberation.

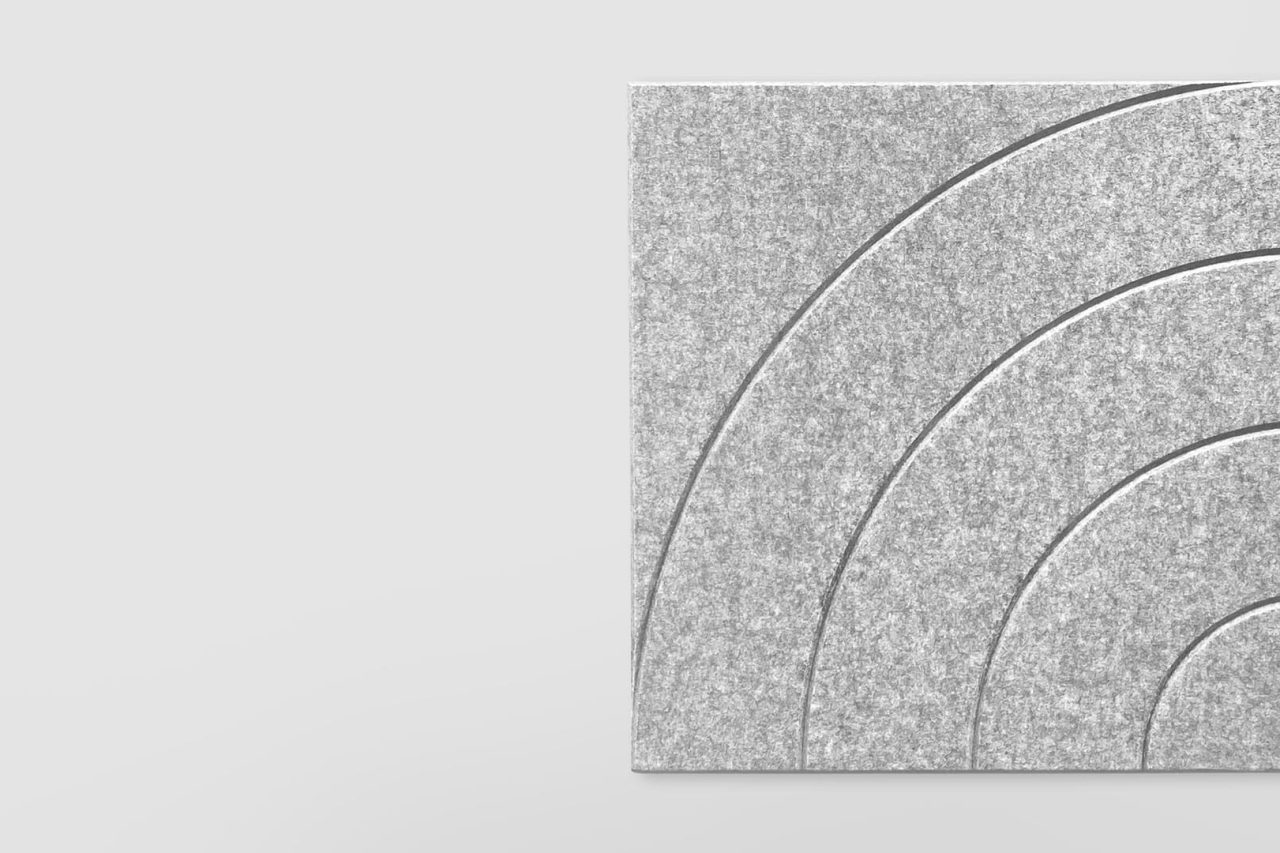

Loop-600

Loop 600

Polyx™ Loop 600 panels feature circular grooves for a rhythmic design, with high-density polyester absorbing sound and reducing reverberation.

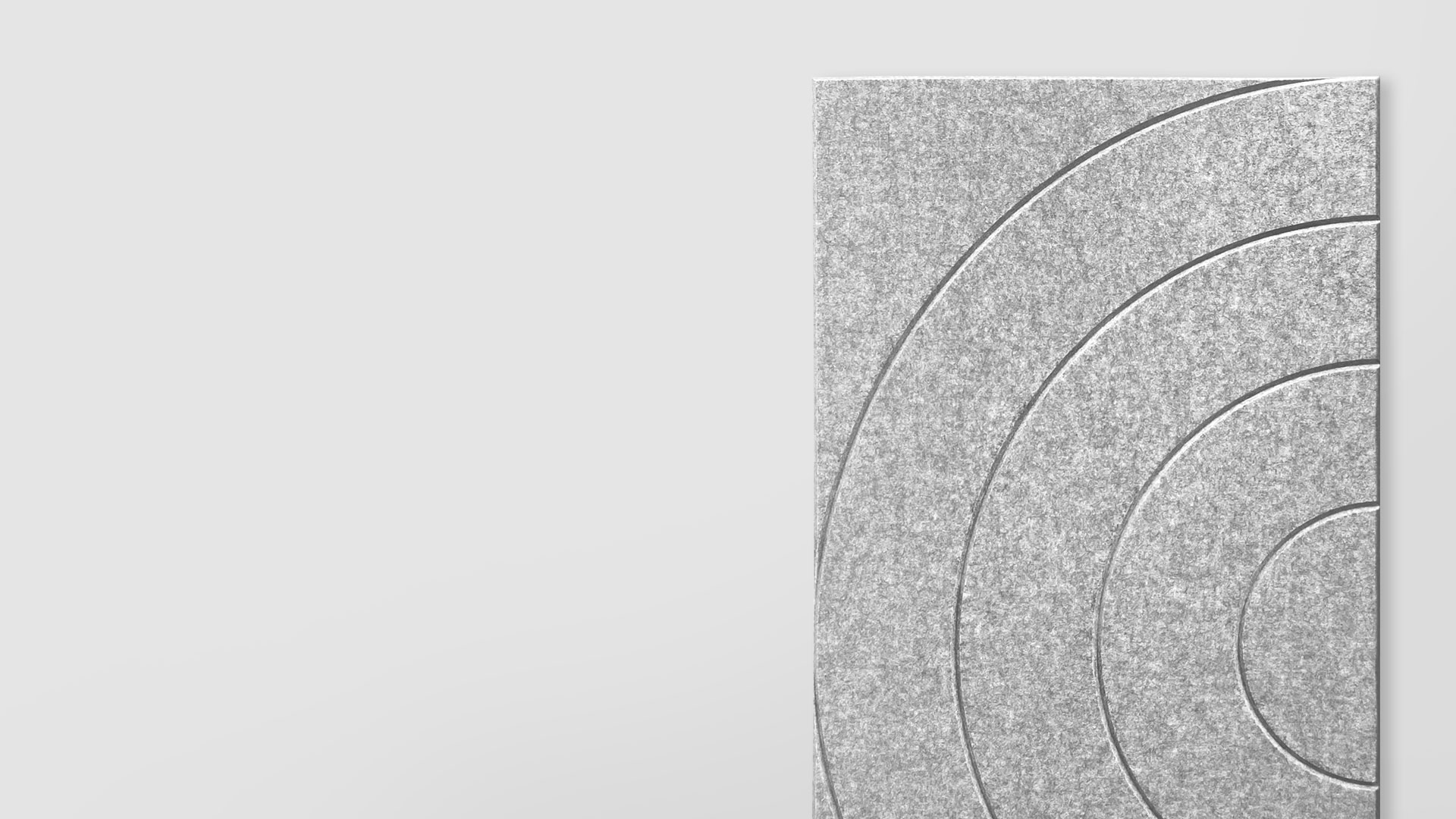

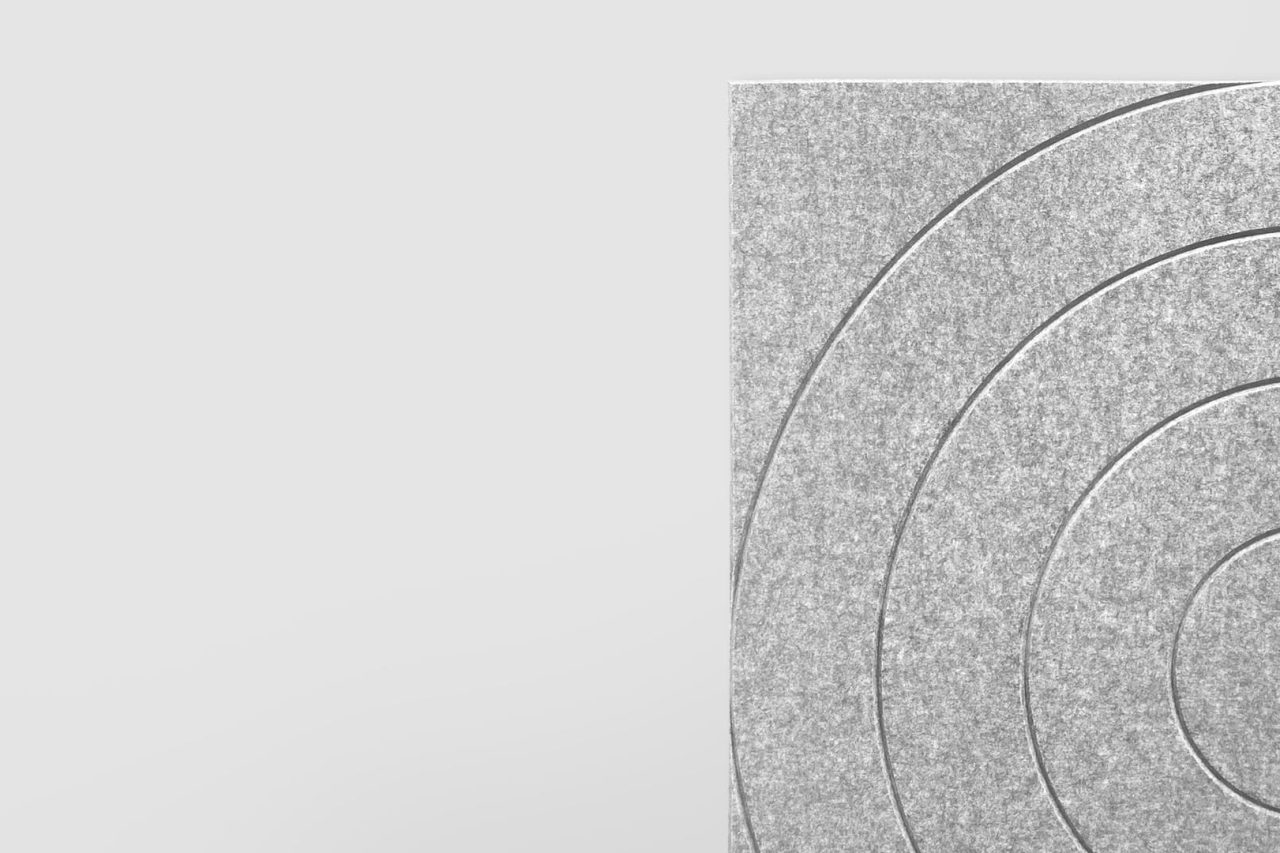

Loop-1200

Loop 1200

Polyx™ Loop 1200 panels feature circular grooves for a rhythmic design, with high-density polyester absorbing sound and reducing reverberation.

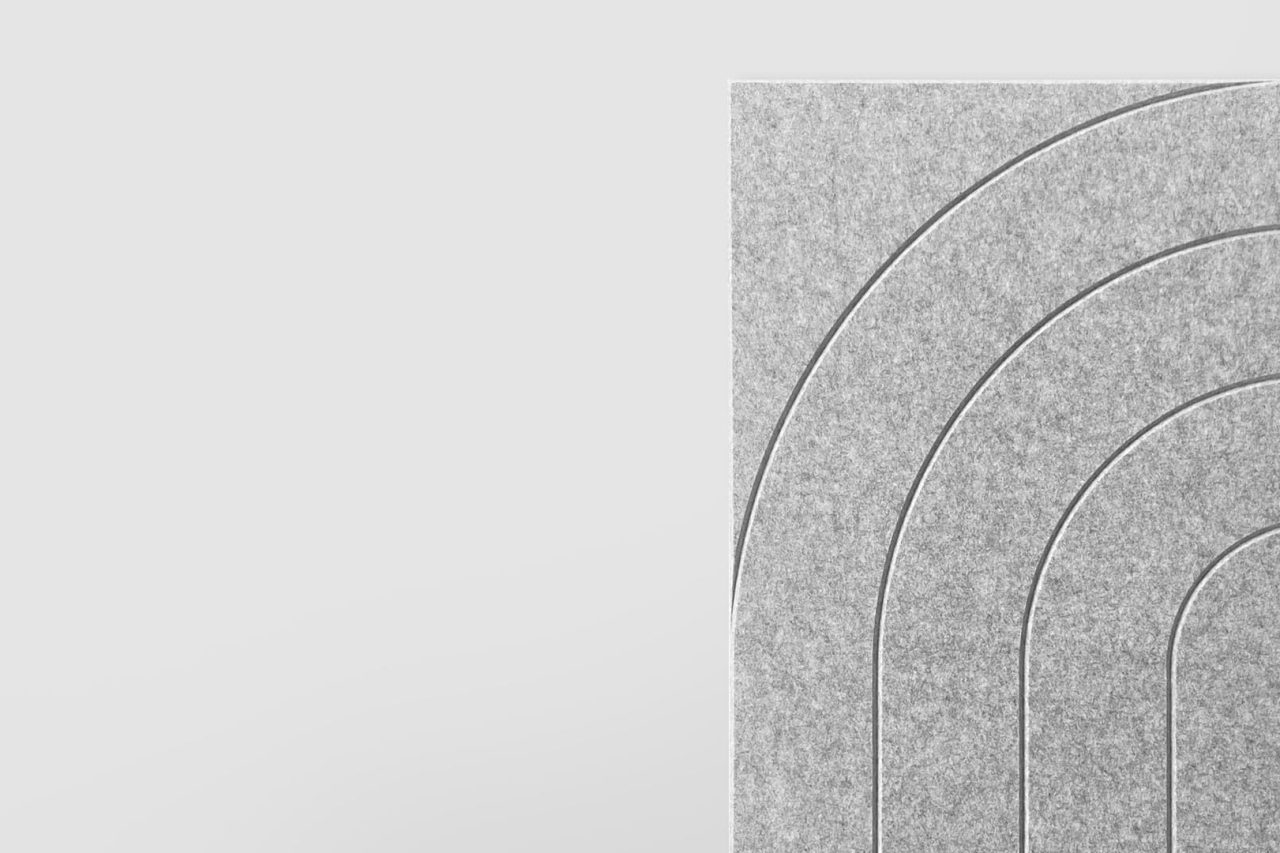

Circuit-1200

Circuit 1200

Polyx™ Circuit 1200 panels feature curved and linear grooves for a dynamic design, with high-density polyester absorbing sound and reducing reverberation.

Baffle

Polyx Baffles 9mm 1280px

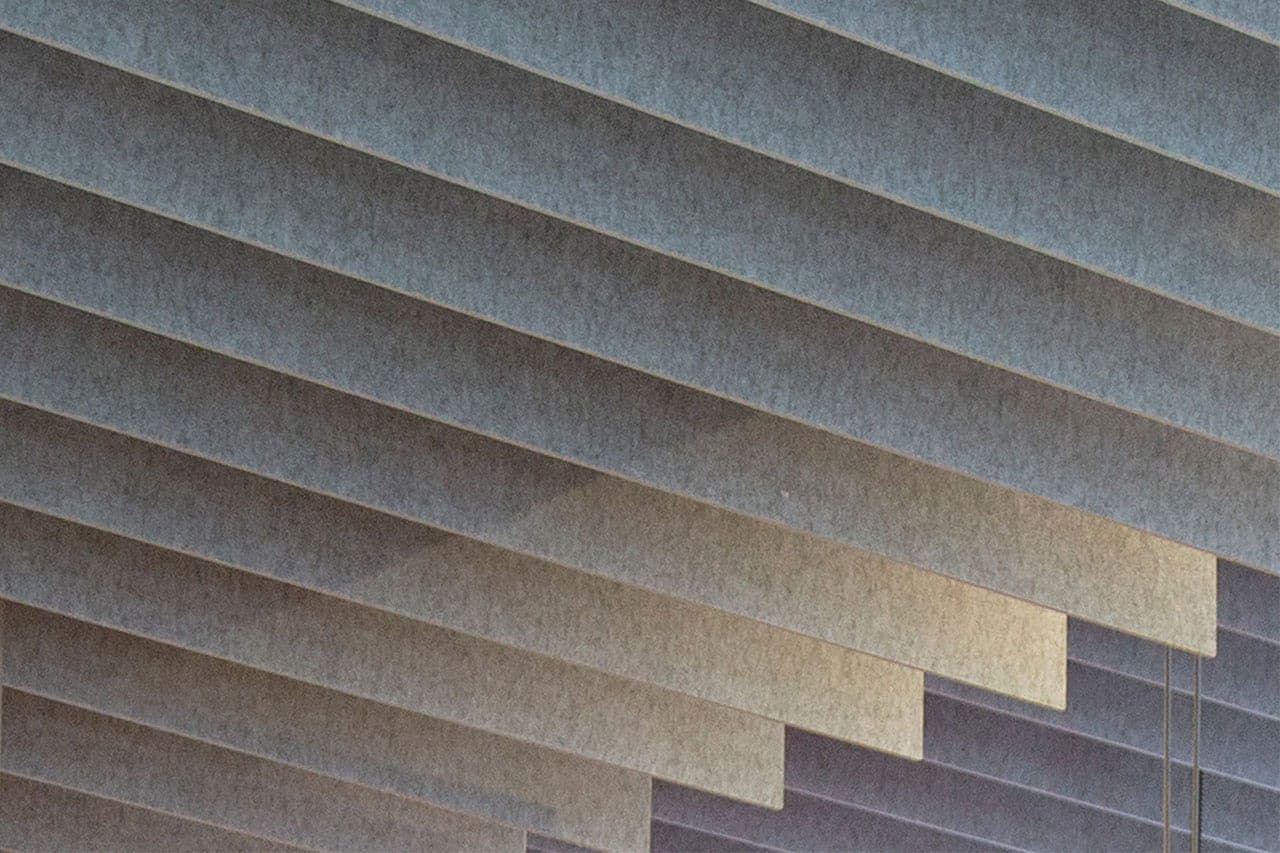

Baffle 9

Line graph titled ISO 354 with 200mm Air Gap showing absorption coefficient (α) increasing with 1/3 octave center frequency (Hz) from 0 at 100 Hz to nearly 1.0 at 5000 Hz.

Polyx™ Baffle 9 acoustic baffles absorb echoes and improve speech clarity, available in 30+ colors, and installed with V-shaped keels 100mm apart.

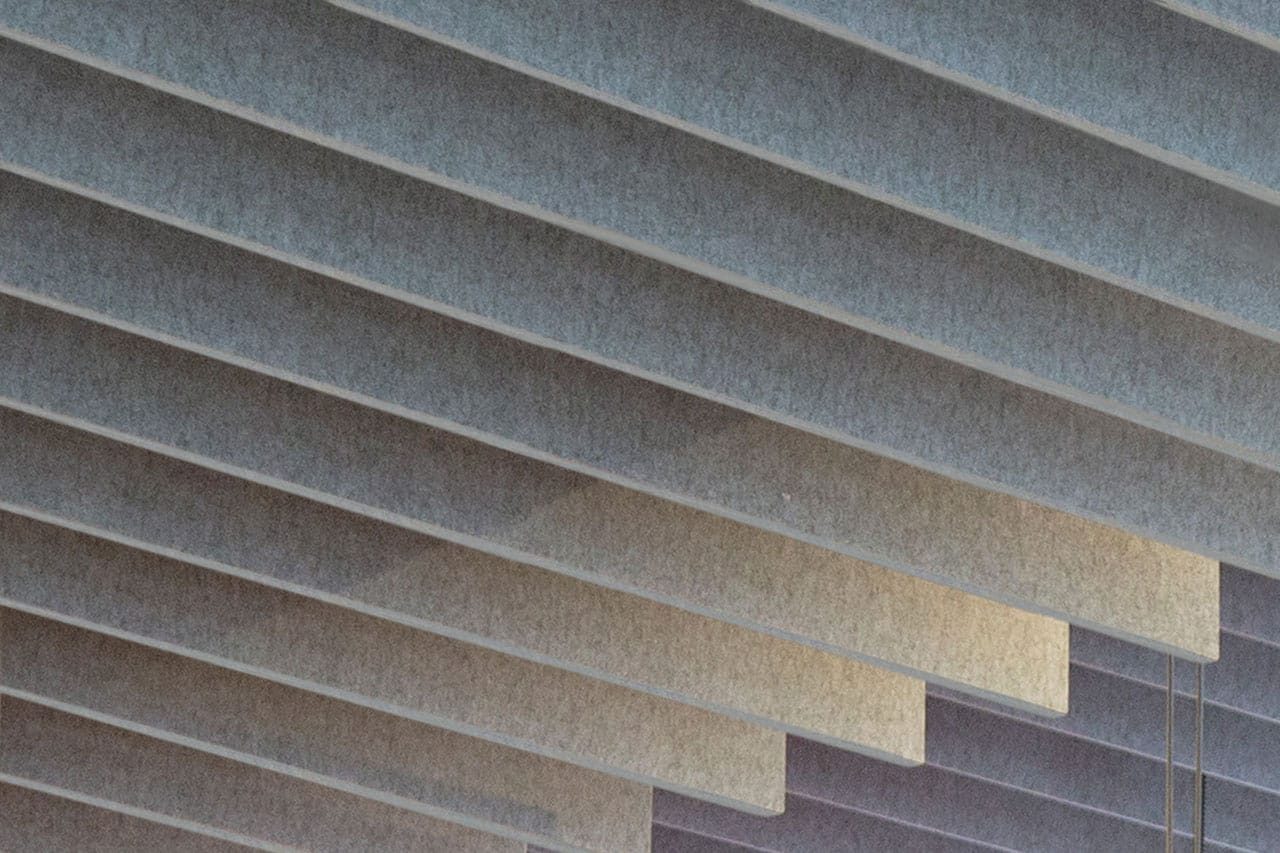

Polyx Baffles 12mm 1280px

Baffle 12

A gray area graph shows absorption coefficient (α) versus 1/3 octave center frequency (Hz) from 315 to 5000 Hz, peaking around 0.7 and ranging between 0.4 and 0.7. Labeled ISO 354 with 100mm Air Gap.

Polyx™ Baffle 12 acoustic baffles absorb echoes and improve speech clarity, available in 30+ colors, and installed with V-shaped keels 100mm apart.

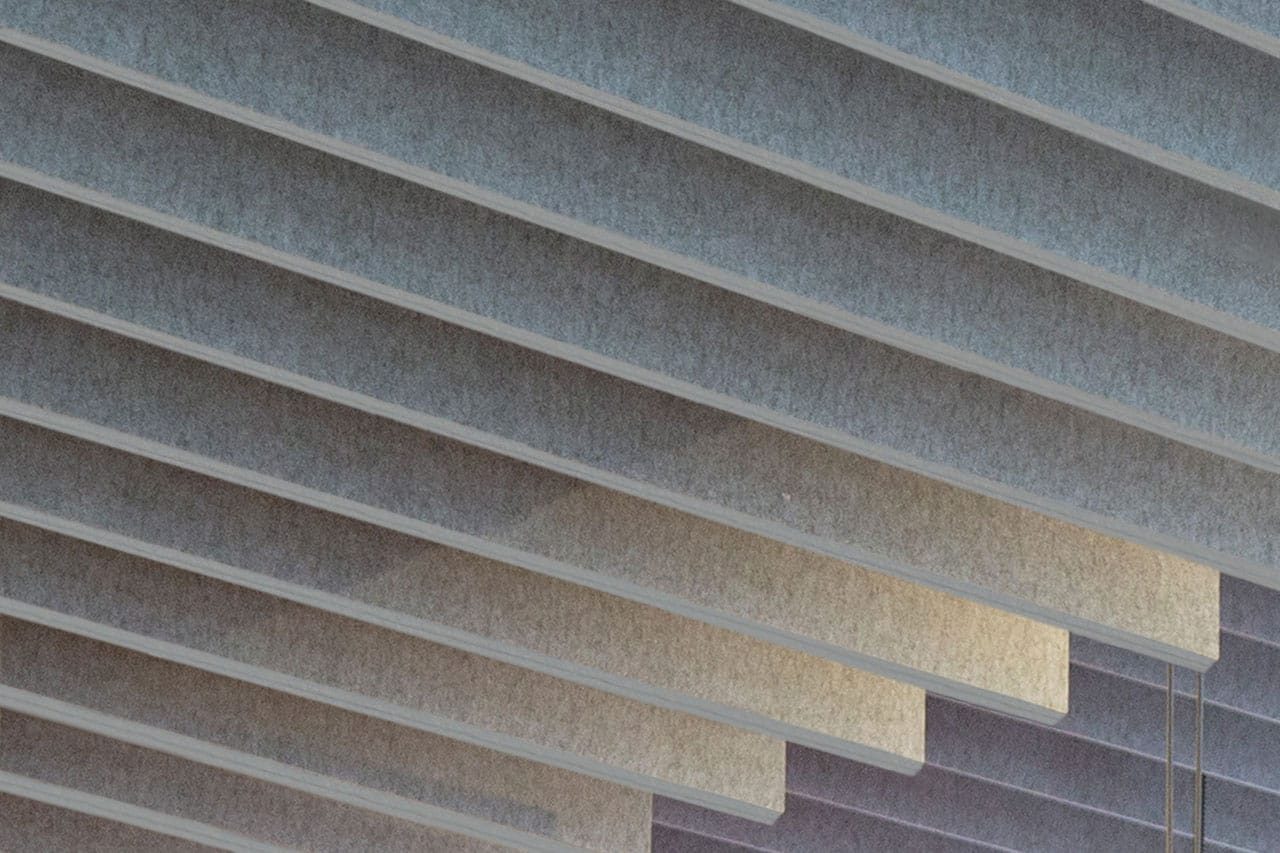

Polyx Baffles 18mm 1280px

Baffle 18

A line graph titled ISO 354 with 200mm Air Gap shows absorption coefficient (α) rising from 0 to 1.0 across 1/3 octave center frequencies (Hz) from 315 to 5000. The curve is shaded under the line.

Polyx™ Baffle 18 acoustic baffles absorb echoes and improve speech clarity, available in 30+ colors, and installed with V-shaped keels 100mm apart.

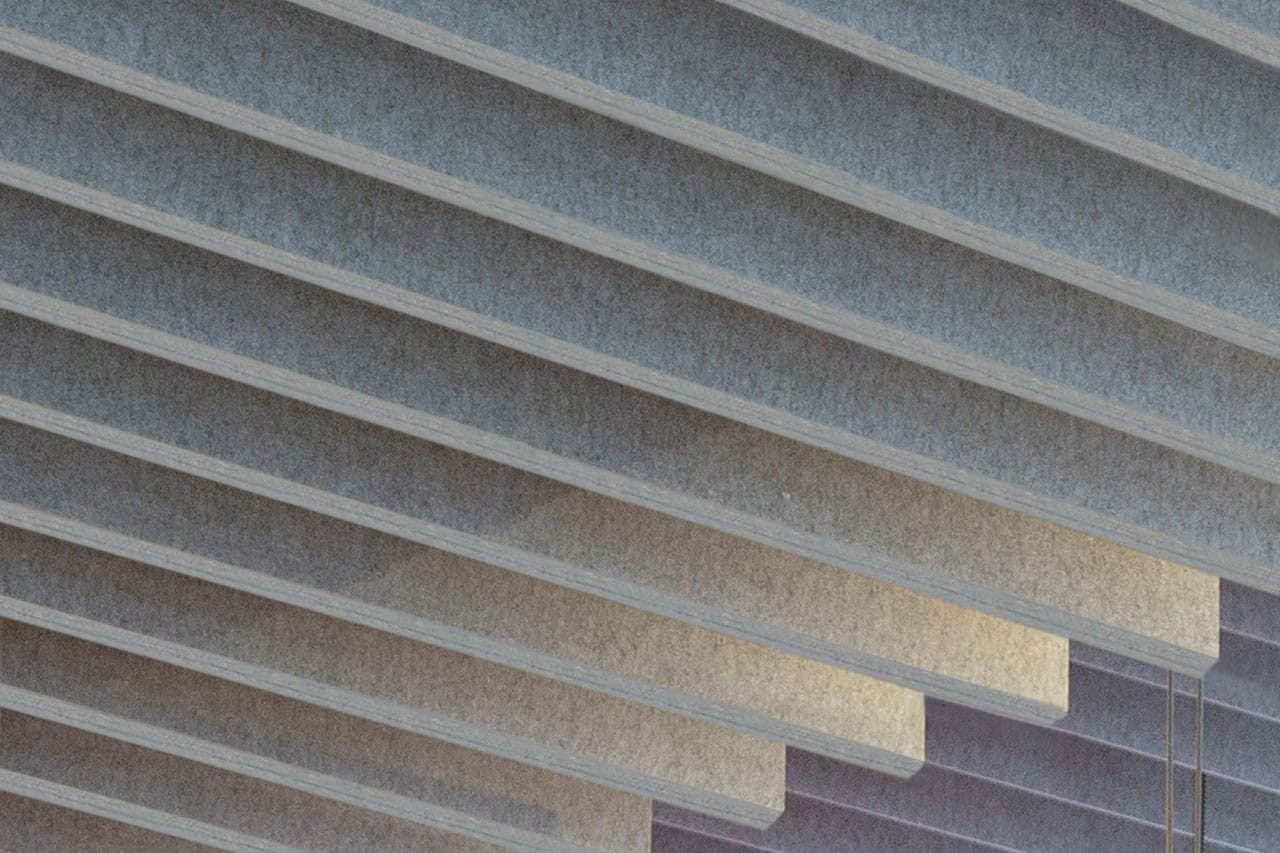

Polyx Baffles 24mm 1280px

Baffle 24

A line graph titled ISO 354 with 200mm Air Gap shows absorption coefficient (α) versus 1/3 octave center frequency (Hz), ranging from 0.0 to 1.0 α and 315 to 5000 Hz, with values increasing then fluctuating.

Polyx™ Baffle 24 acoustic baffles absorb echoes and improve speech clarity, available in 30+ colors, and installed with V-shaped keels 100mm apart.

Board

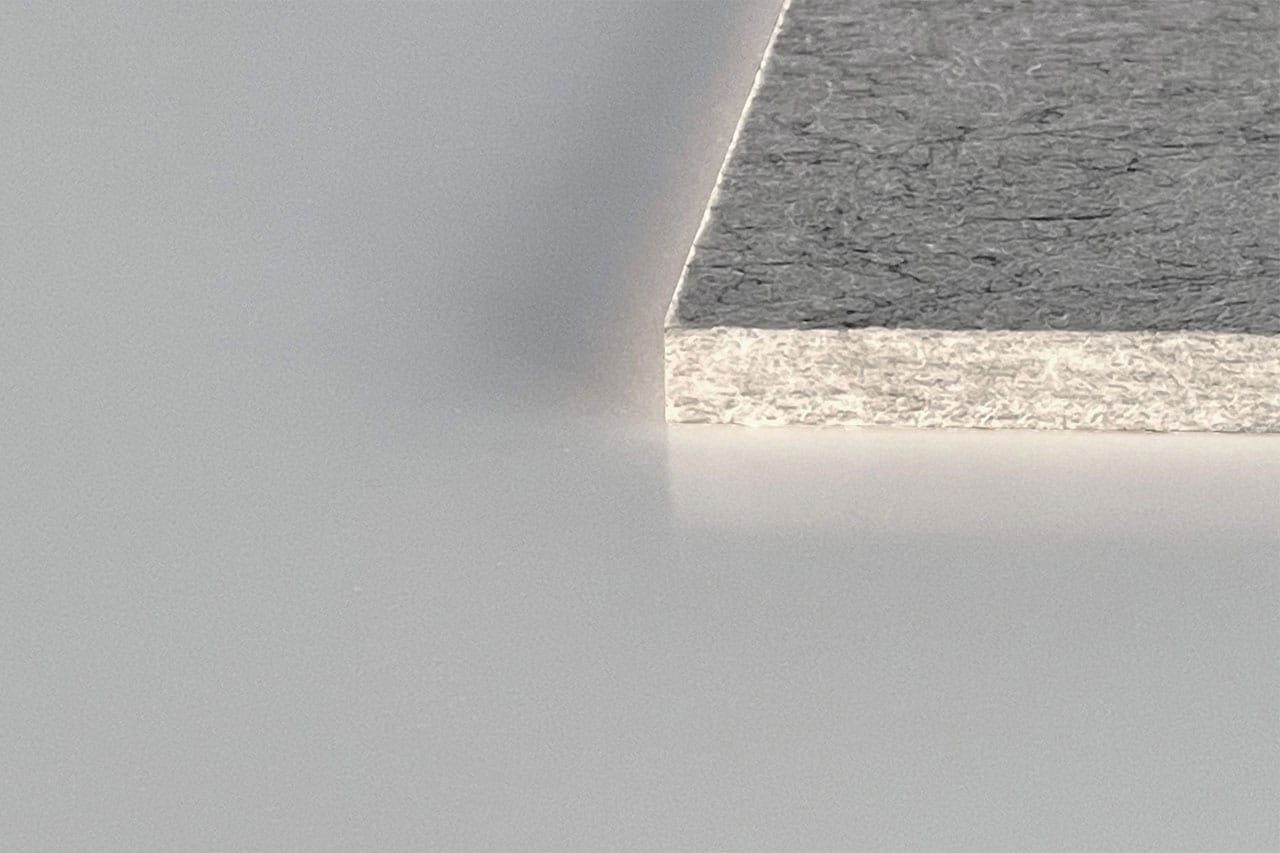

Polyx-Board-9mm

Board 9

Line graph showing absorption coefficient (y-axis) rising from near 0 at 315 Hz to about 0.9 at 5000 Hz (x-axis) per ASTM C423-17. The curve increases sharply after 1250 Hz.

Polyx™ Polyester Board of 9mm thickness absorbs sound and reduces reverberation with its high-density fibrous network.

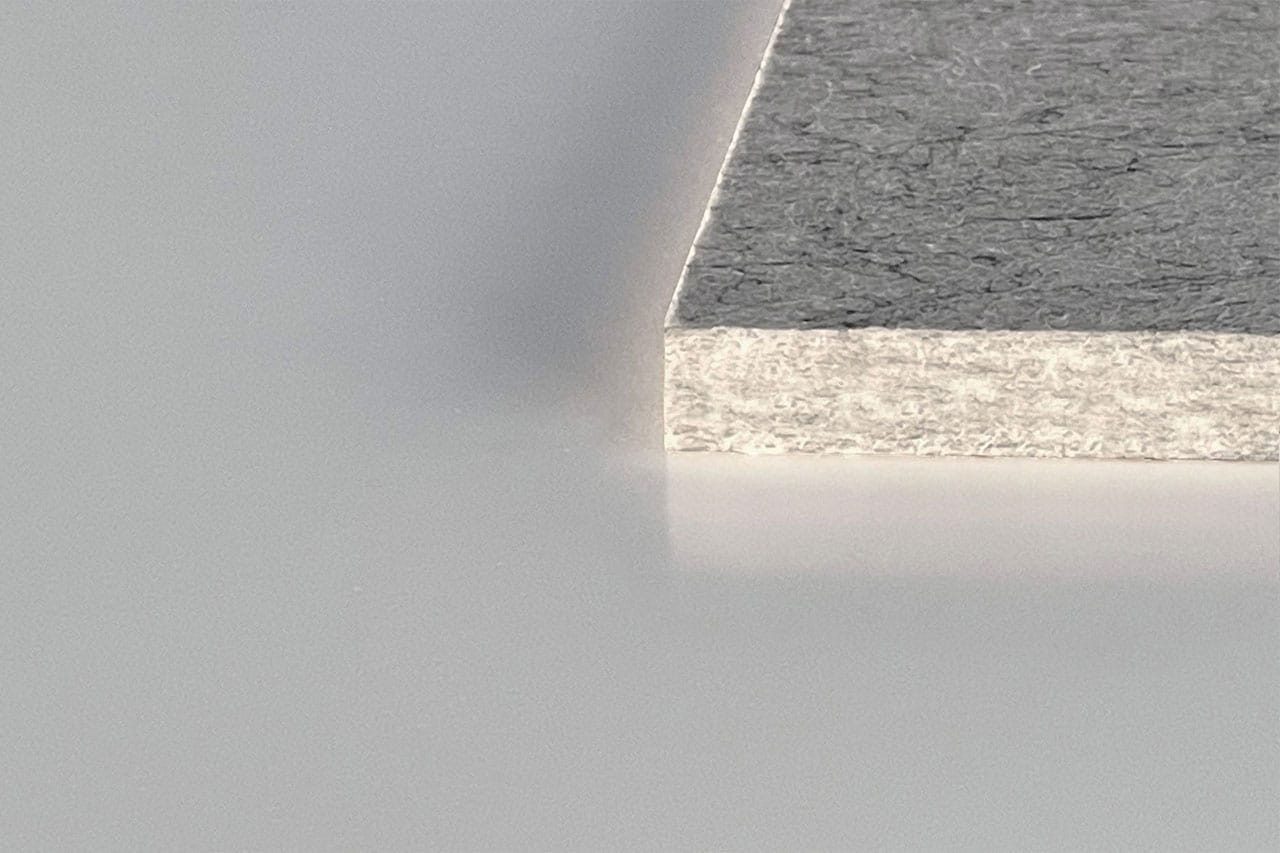

Polyx-Board-12mm

Board 12

A line graph shows absorption coefficient (α) increasing with 1/3 octave center frequency (Hz) from 0 at 315 Hz to about 1.1 at 5000 Hz, labeled ASTM C423-17.

Polyx™ Polyester Board of 12mm thickness absorbs sound and reduces reverberation with its high-density fibrous network.

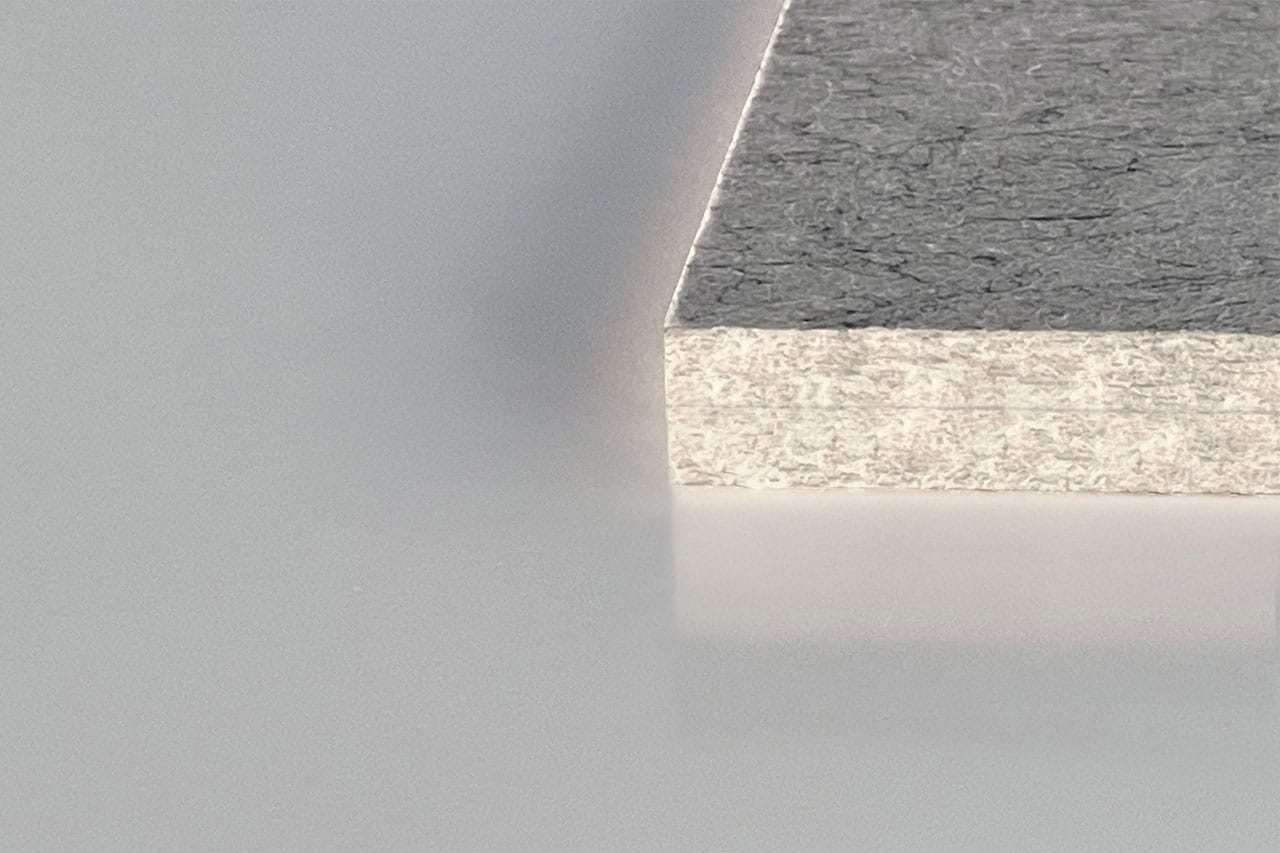

Polyx-Board-18mm

Board 18

A line graph showing absorption coefficient (α) versus 1/3 octave center frequency (Hz) from 315 to 5000. The absorption increases steadily, peaking above 1.0 at 5000 Hz. Labeled ASTM C423-17.

Polyx™ Polyester Board of 18mm thickness absorbs sound and reduces reverberation with its high-density fibrous network.

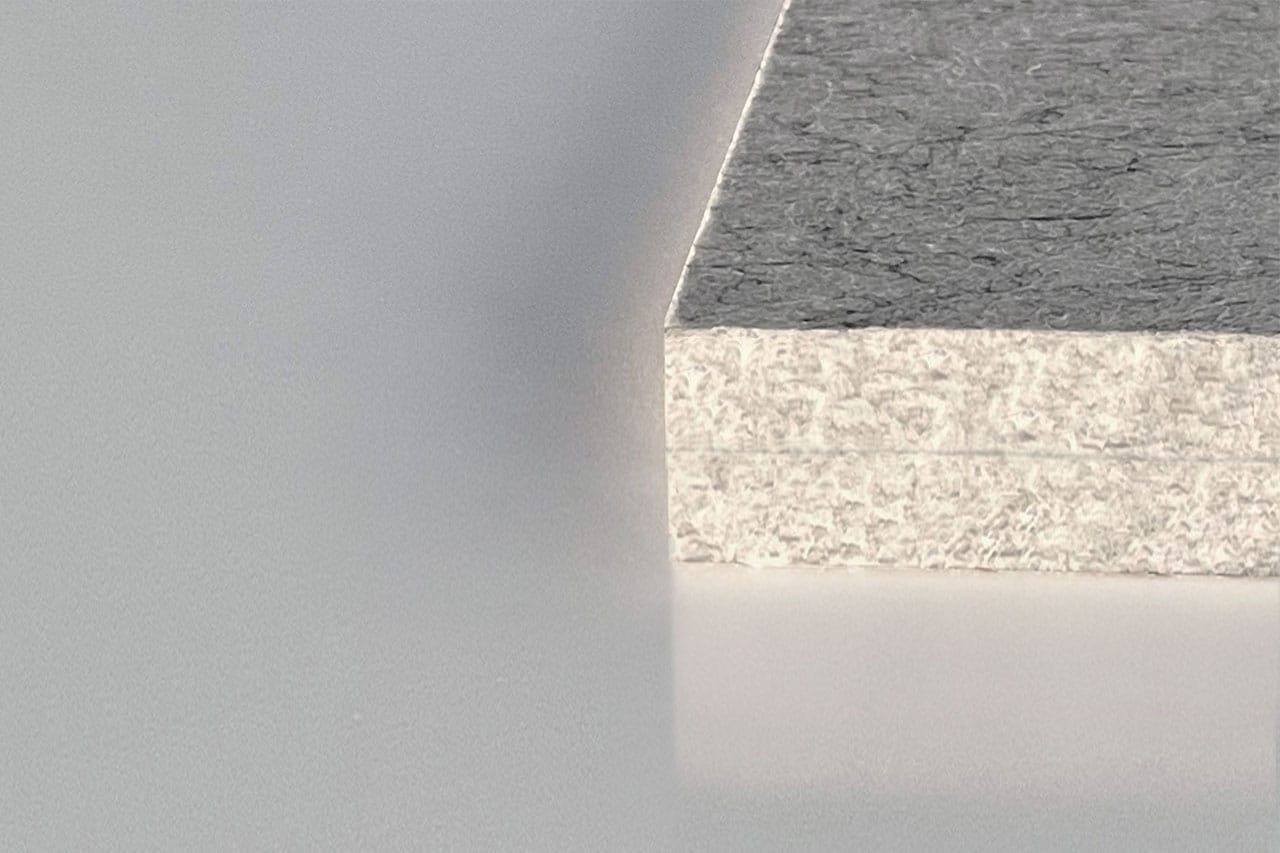

Polyx-Board-24mm

Board 24

Shaded graph shows absorption coefficient rising from 0 at low frequencies to about 1.1 at 5000 Hz, with frequency labels at 315, 1250, and 5000 Hz. Text: ASTM C423-17 above the graph.

Polyx™ Polyester Board of 24mm thickness absorbs sound and reduces reverberation with its high-density fibrous network.

Thermocompressed

Curve 38 2

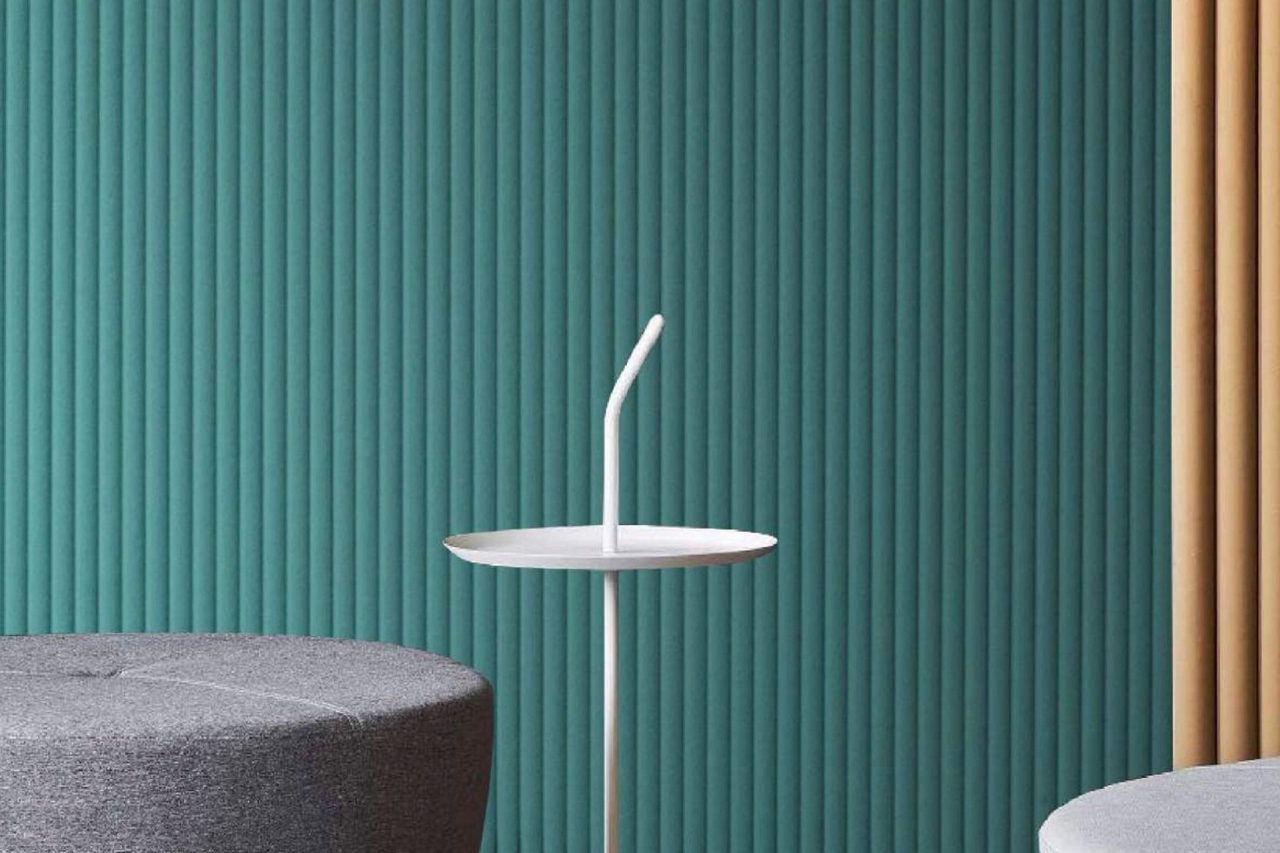

Curve 38-2

Curve SAC

Polyx™ Curve 38-2 polyester boards are crafted through tumbling and heat compression, ensuring durability, sound absorption, and reverberation control.

Curve 40 10

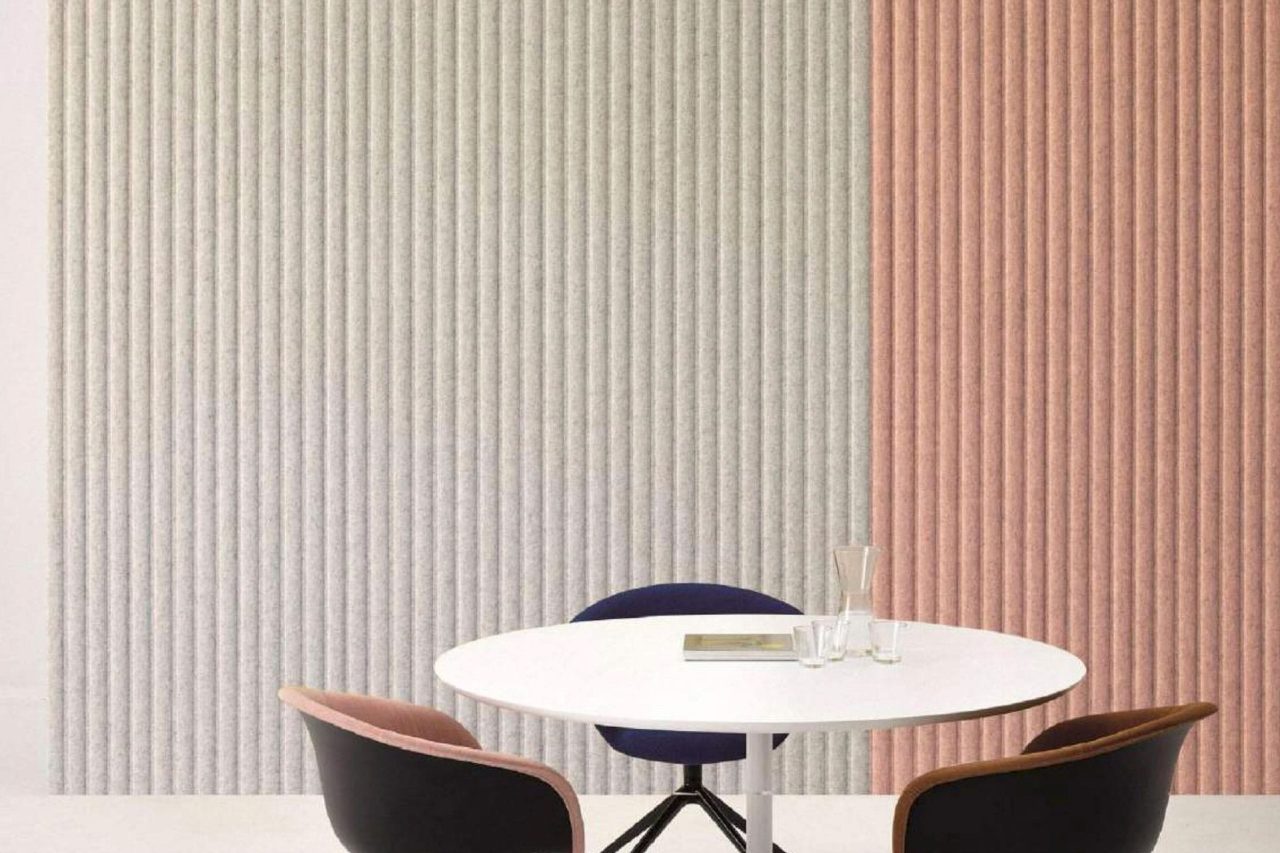

Curve 40-10

Curve SAC

Polyx™ Curve 40-10 polyester boards are crafted through tumbling and heat compression, ensuring durability, sound absorption, and reverberation control.

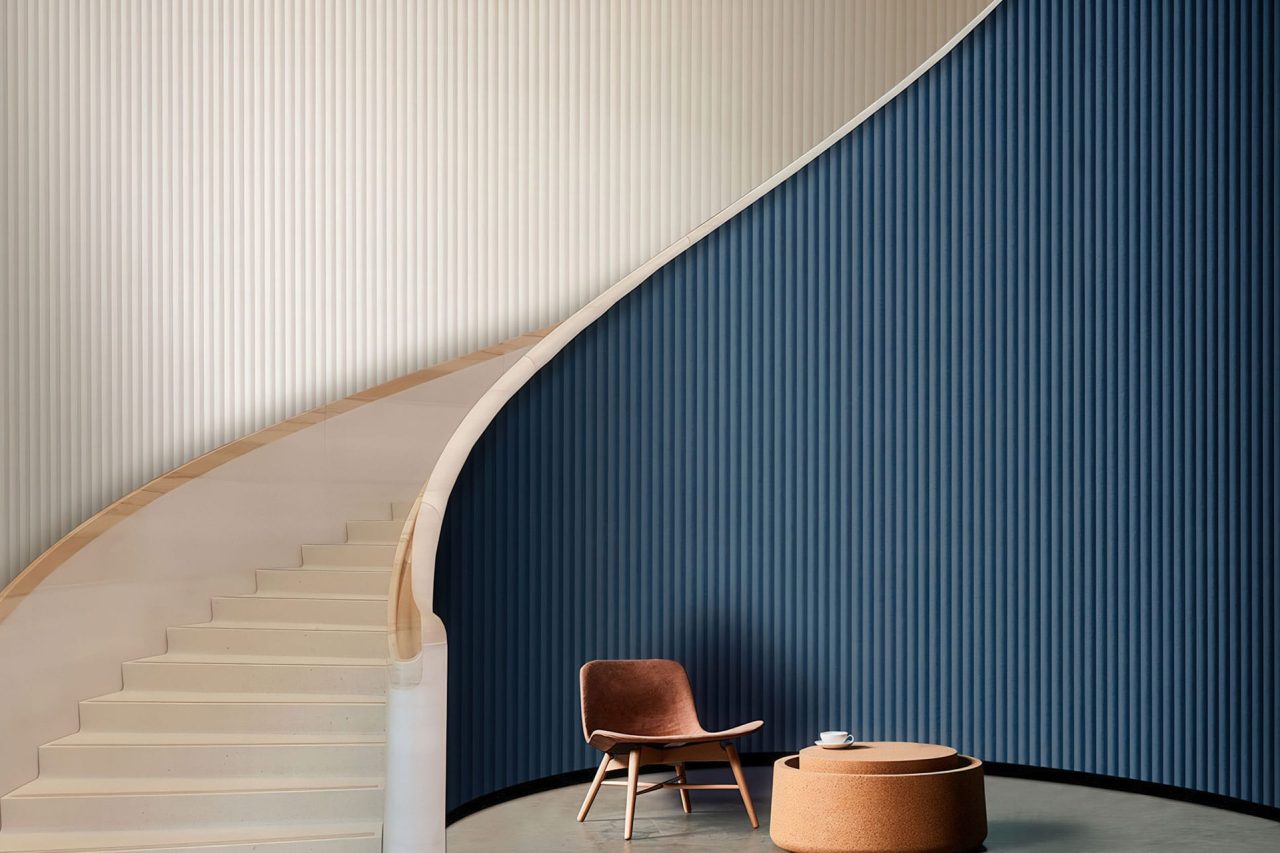

Curve 67

Curve 67

Curve SAC

Polyx™ Curve 67 polyester boards are crafted through tumbling and heat compression, ensuring durability, sound absorption, and reverberation control.

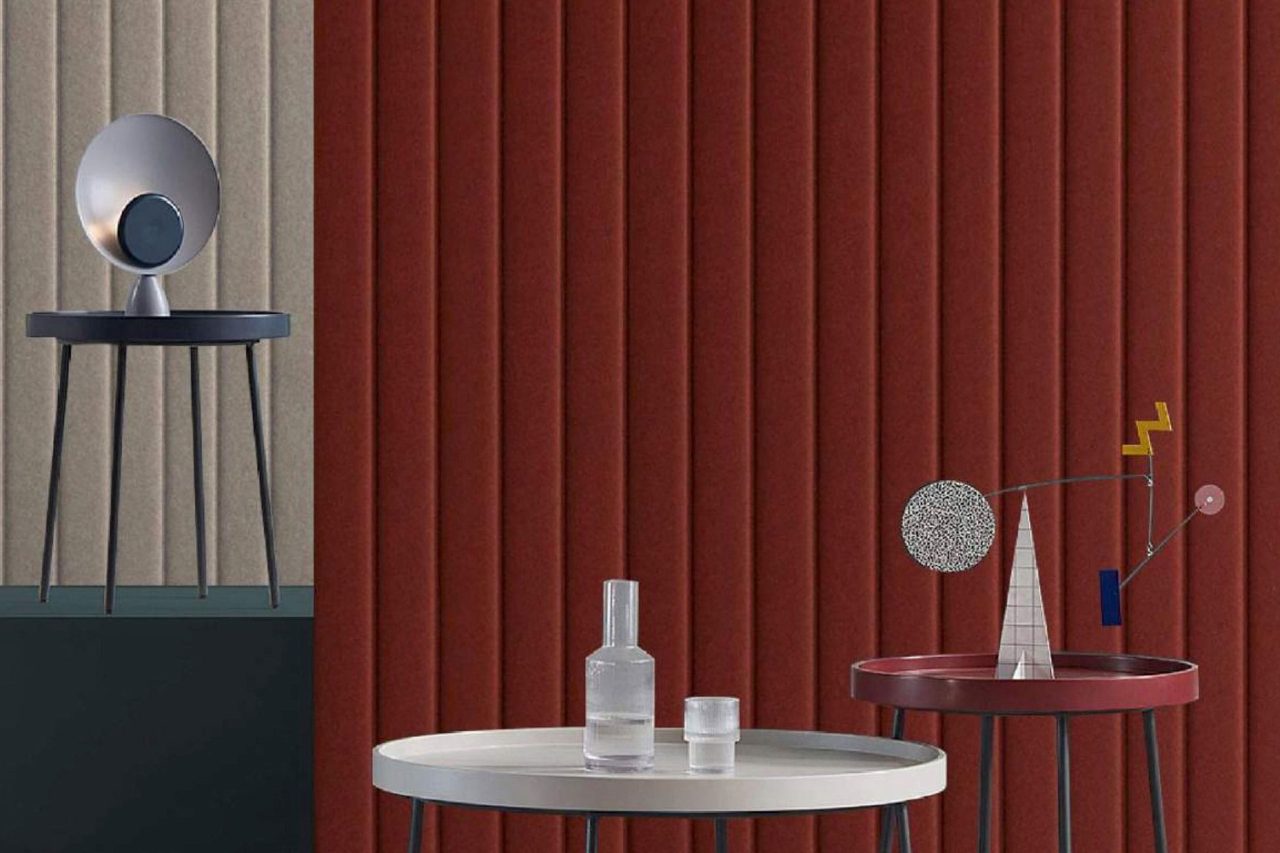

Curve 95 6

Curve 95-6

Curve SAC

Polyx™ Curve 95-6 polyester boards are crafted through tumbling and heat compression, ensuring durability, sound absorption, and reverberation control.

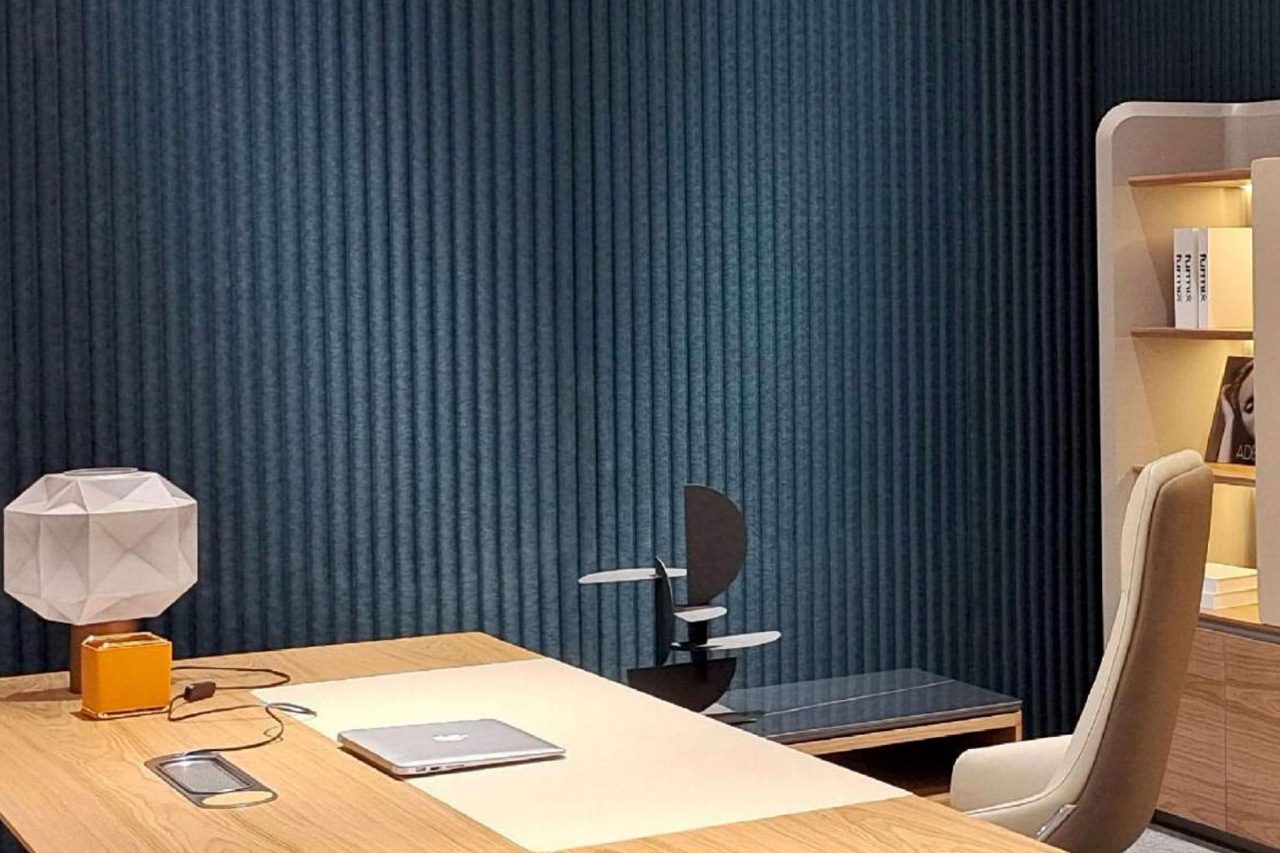

Wave 40 10

Wave 40-10

Wave SAC

Polyx™ Wave 40-10 polyester boards are crafted through tumbling and heat compression, ensuring durability, sound absorption, and reverberation control.

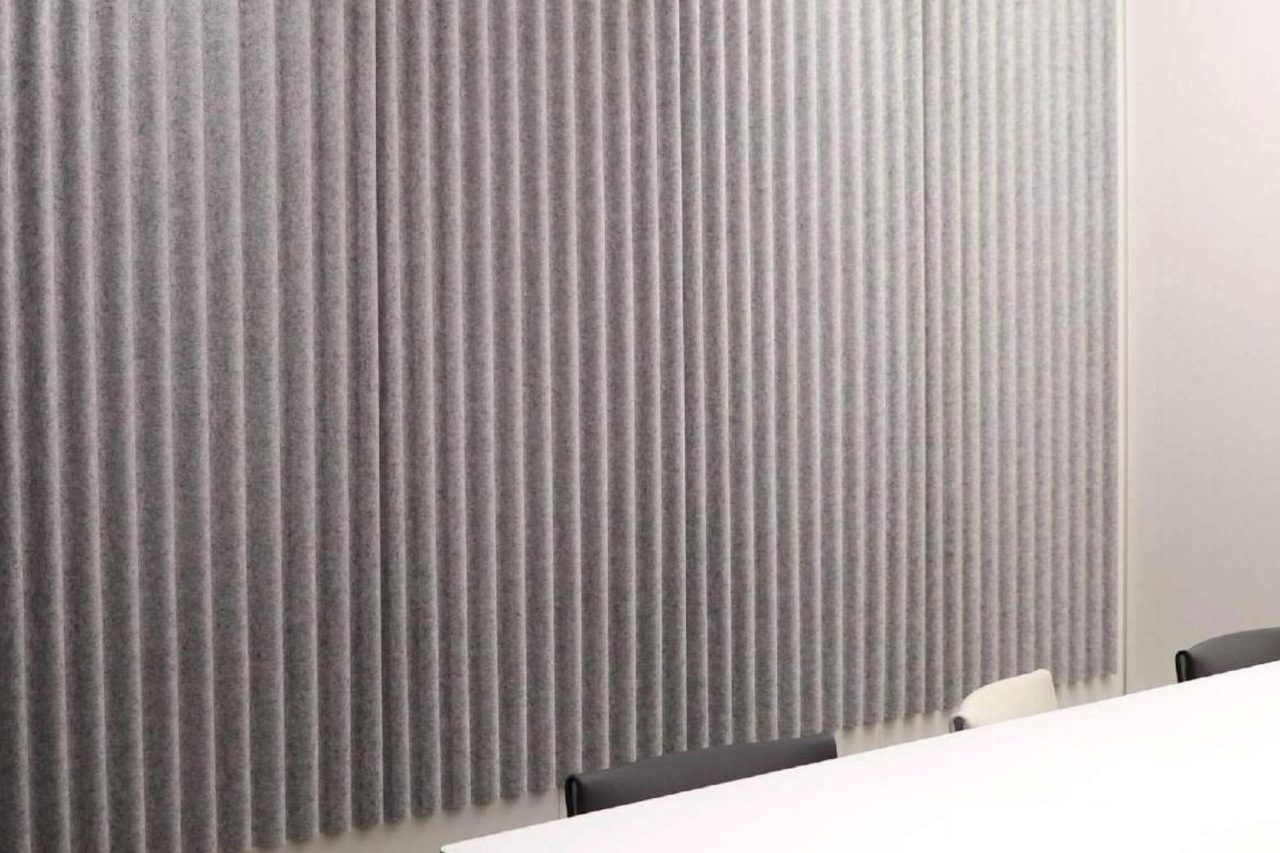

Wave 75 Edited

Wave 75

Wave SAC

Polyx™ Wave 75 polyester boards are crafted through tumbling and heat compression, ensuring durability, sound absorption, and reverberation control.

Wave 96 6 Edited

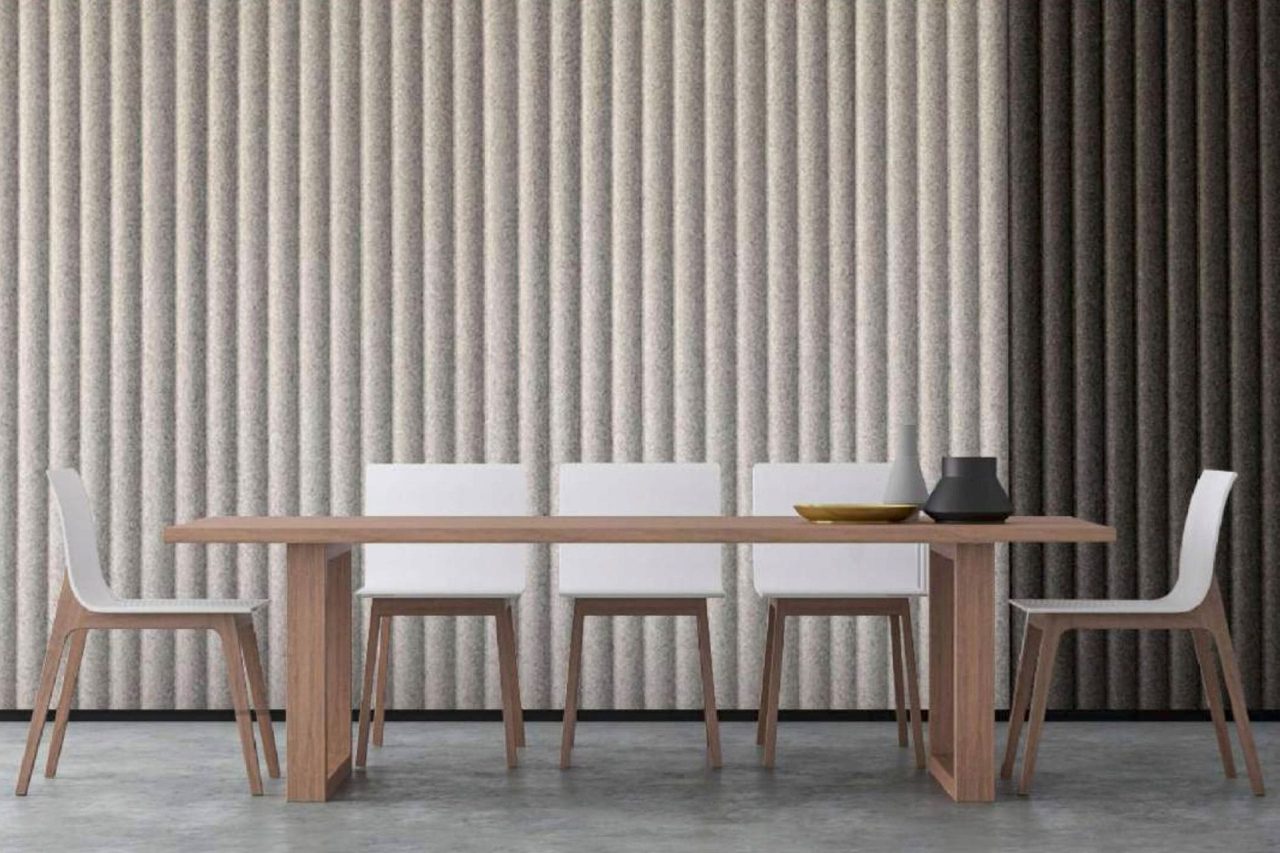

Wave 95-6

Wave SAC

Polyx™ Wave 95-6 polyester boards are crafted through tumbling and heat compression, ensuring durability, sound absorption, and reverberation control.

Wool

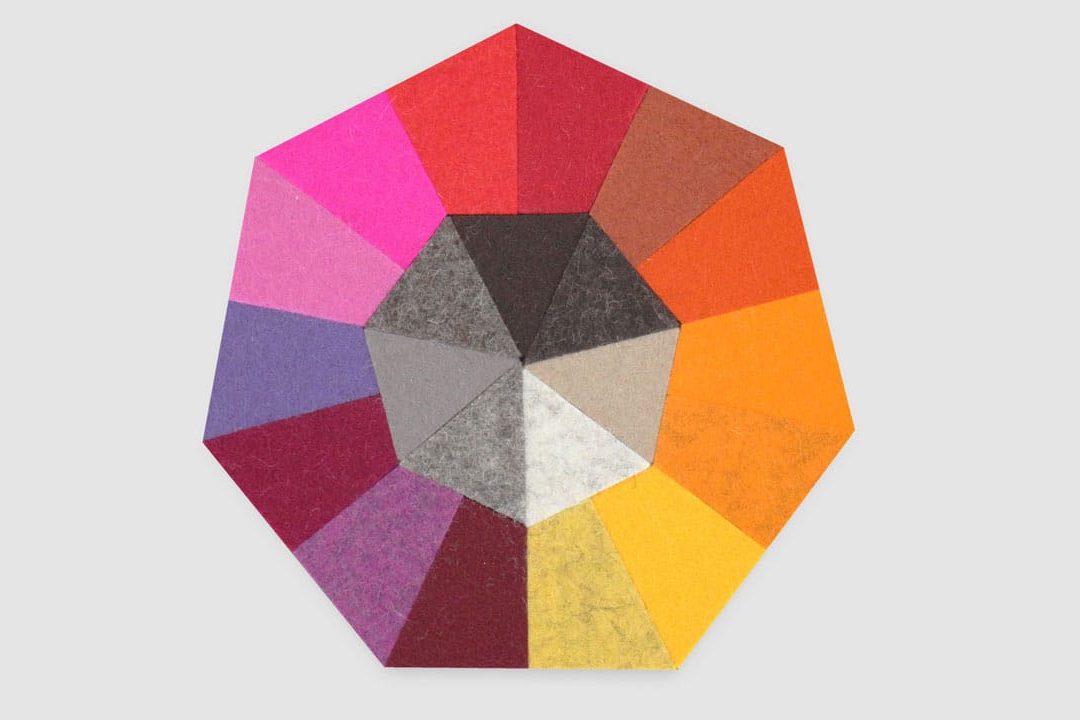

Wool Felt 3

Wool Felt 3

A graph showing absorption coefficient (α) vs. frequency (Hz) for ISO 354 with 20mm air gap. The coefficient increases from 0 to over 1.0, peaking near 5000 Hz. Frequencies range from 315 to 5000 Hz.

Wool Felt of thickness 3mm is an eco-friendly, biodegradable textile made from traditional wool, certified to ISO 9001:2008, offering both natural and synthetic options.

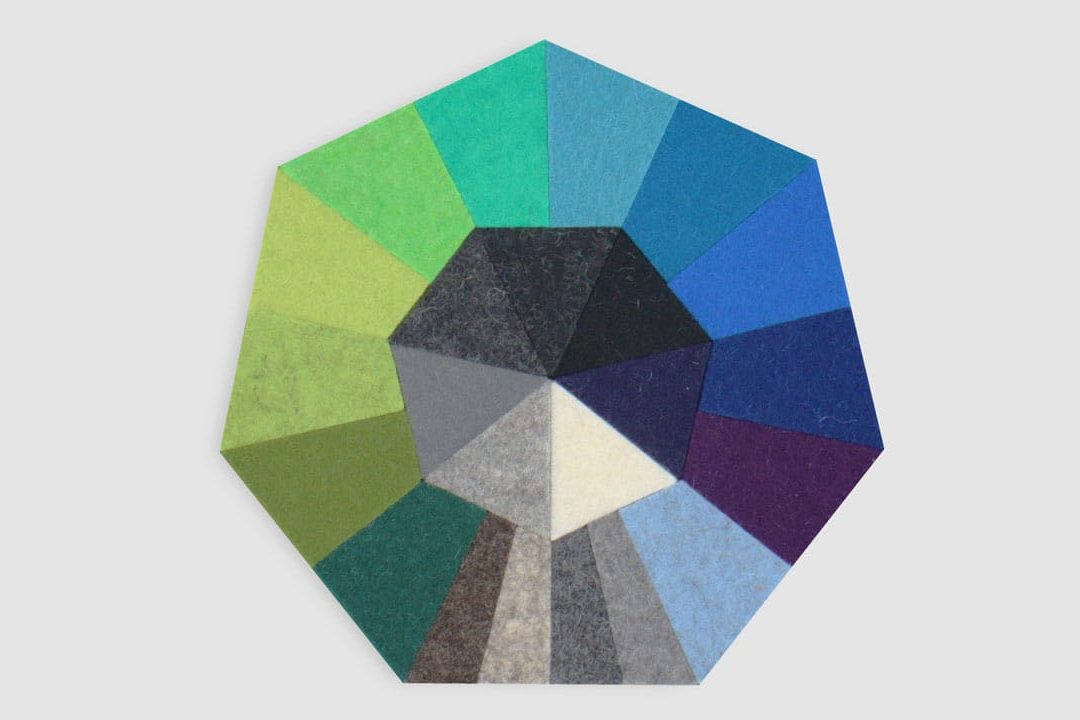

Wool Felt 5

Wool Felt 5

A line graph showing absorption coefficient (α) versus 1/3 octave center frequency (Hz) for ISO 354 with a 20mm air gap. The absorption peaks around 1250 to 5000 Hz, reaching up to 1.0.

Wool Felt of thickness 5mm is an eco-friendly, biodegradable textile made from traditional wool, certified to ISO 9001:2008, offering both natural and synthetic options.

Others

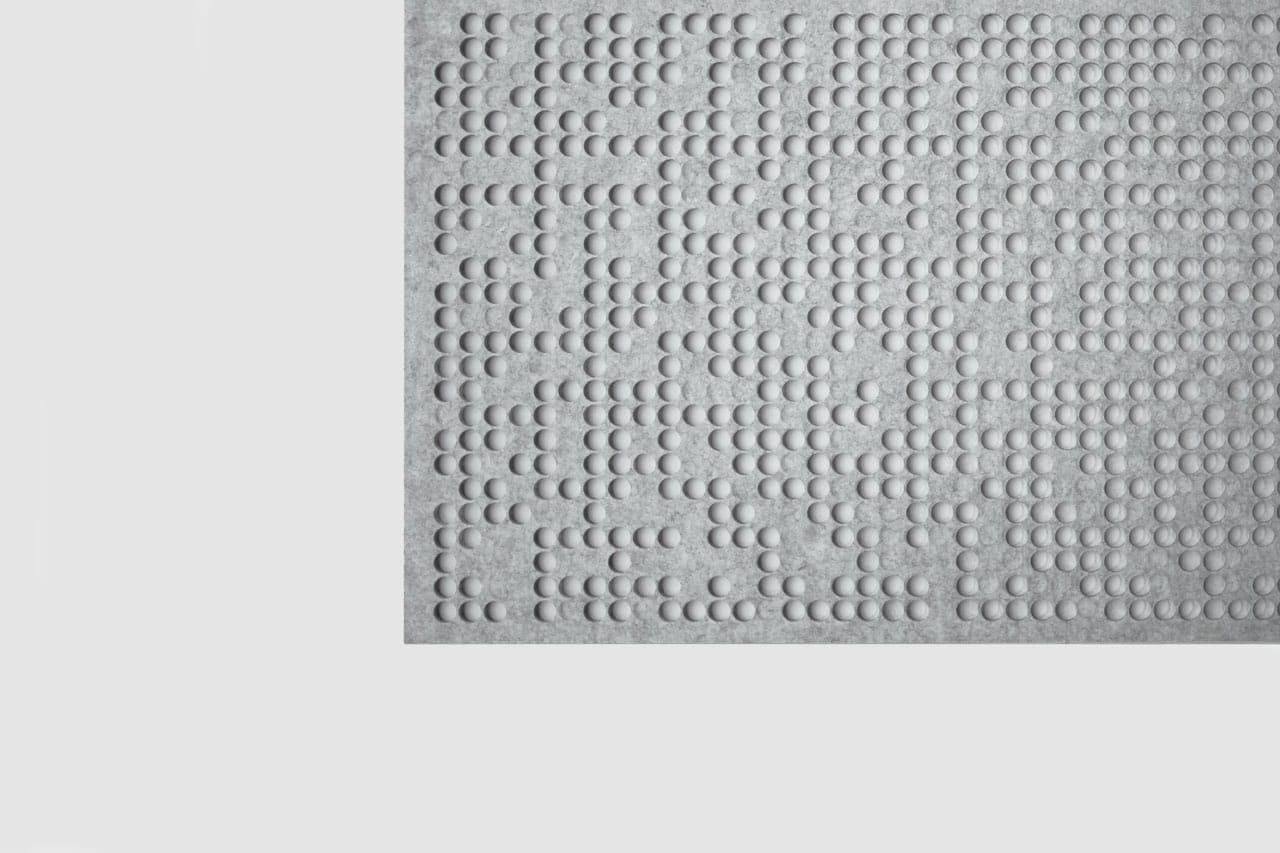

Polyx-Perforated

Perforated

A graph shows absorption coefficient (α) on the y-axis, ranging from 0.0 to 1.1, versus 1/3 octave center frequency (Hz) on the x-axis, ranging from 315 to 5000, with shaded area rising toward the right.

Polyx™ Perforated panels feature high-density perforations for seamless joins, delivering effective sound absorption and reduced reverberation.

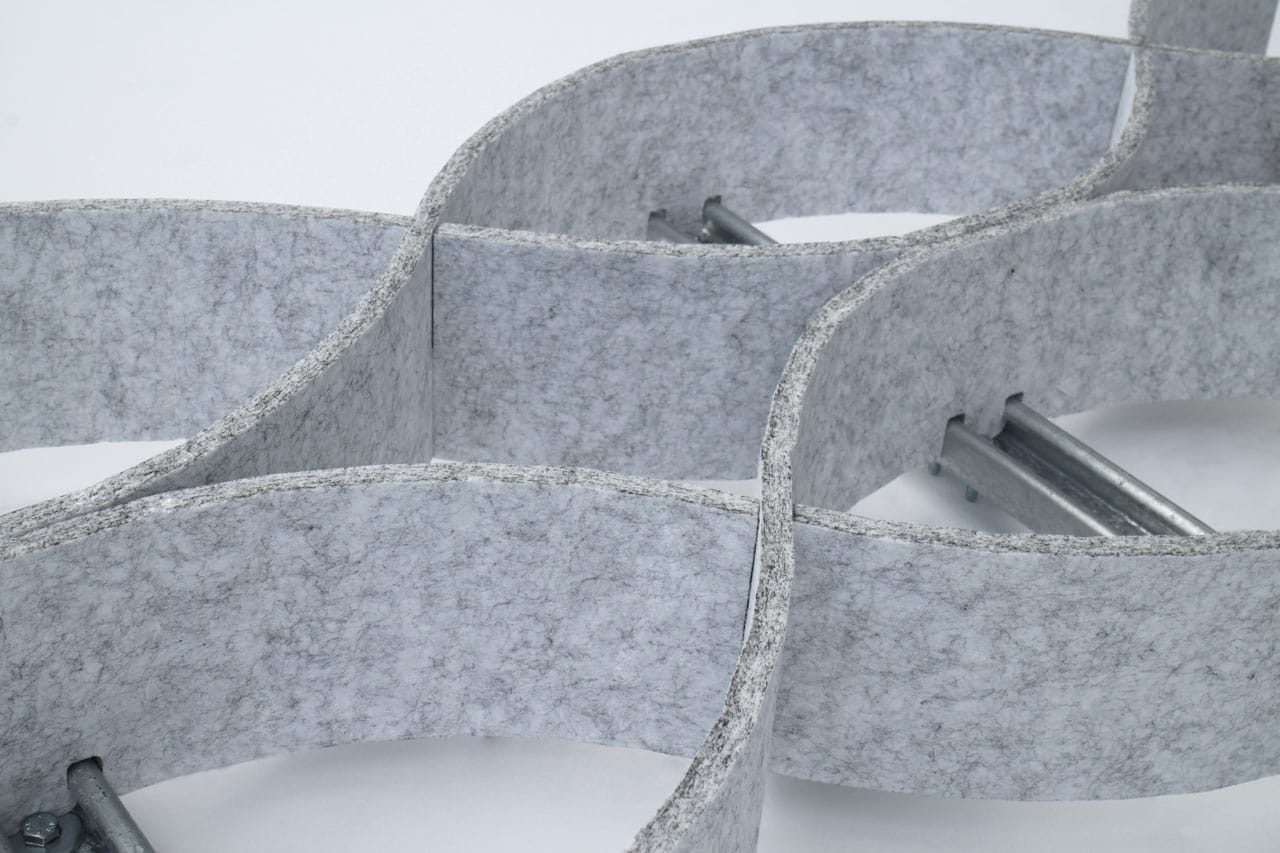

Waffle Baffle

Waffle Baffle

A graph titled ISO 354 with 200mm Air Gap shows absorption coefficient (α) on the y-axis and 1/3 octave center frequency (Hz) on the x-axis, ranging from 315 to 5000 Hz, with α values rising to nearly 1.0 at higher frequencies.

Polyx™ Waffle Baffle connects meandering baffles into Unistrut channels for easy installation, absorbing sound and reducing reverberation.

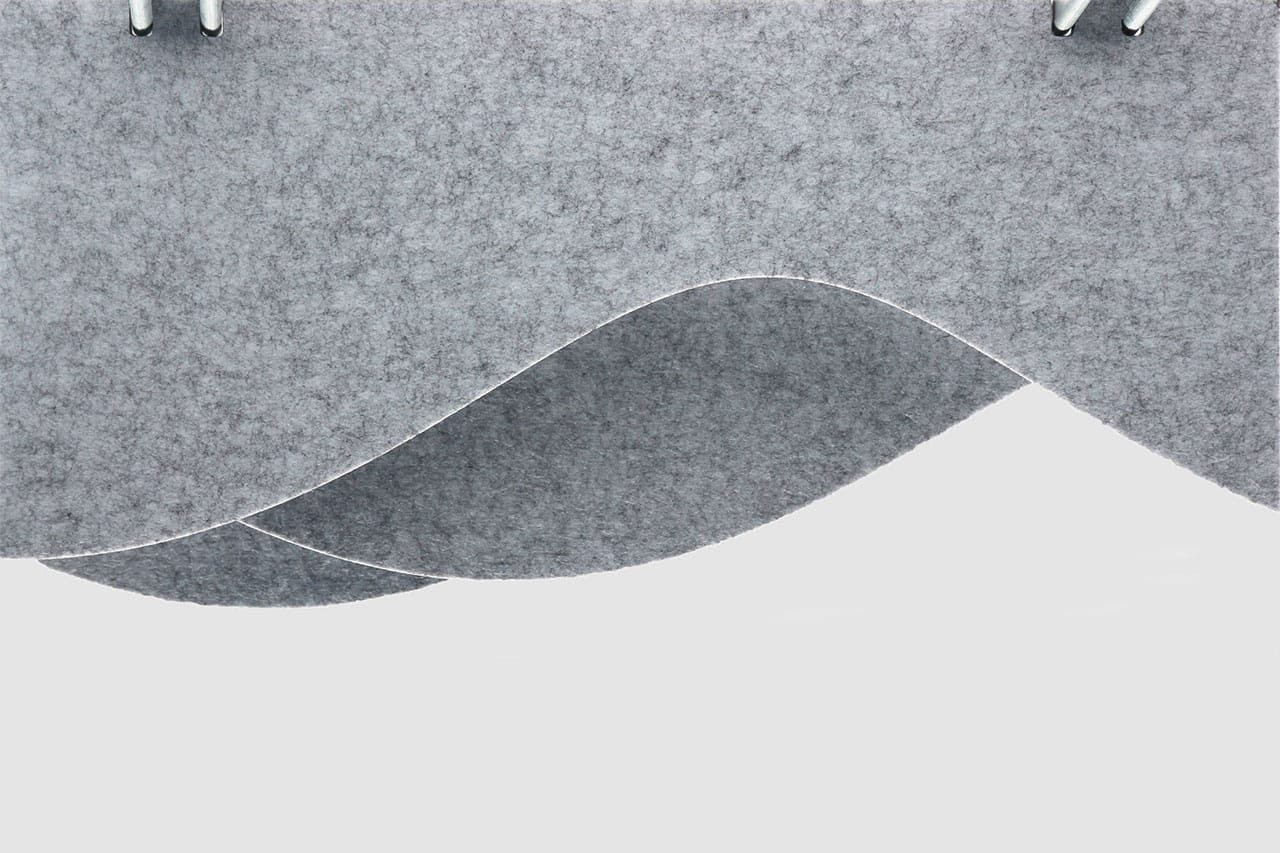

Wave-Baffle-1280px

Wave Baffle

A graph shows absorption coefficient (α) versus 1/3 octave center frequency (Hz), ranging from 315 to 5000 Hz. The absorption coefficient varies between 0.3 and 0.8, with a peak near 0.7.

Polyx™ Wave Baffle slots wave-shaped baffles into Unistrut channels for easy installation, delivering effective sound absorption and reduced reverberation.

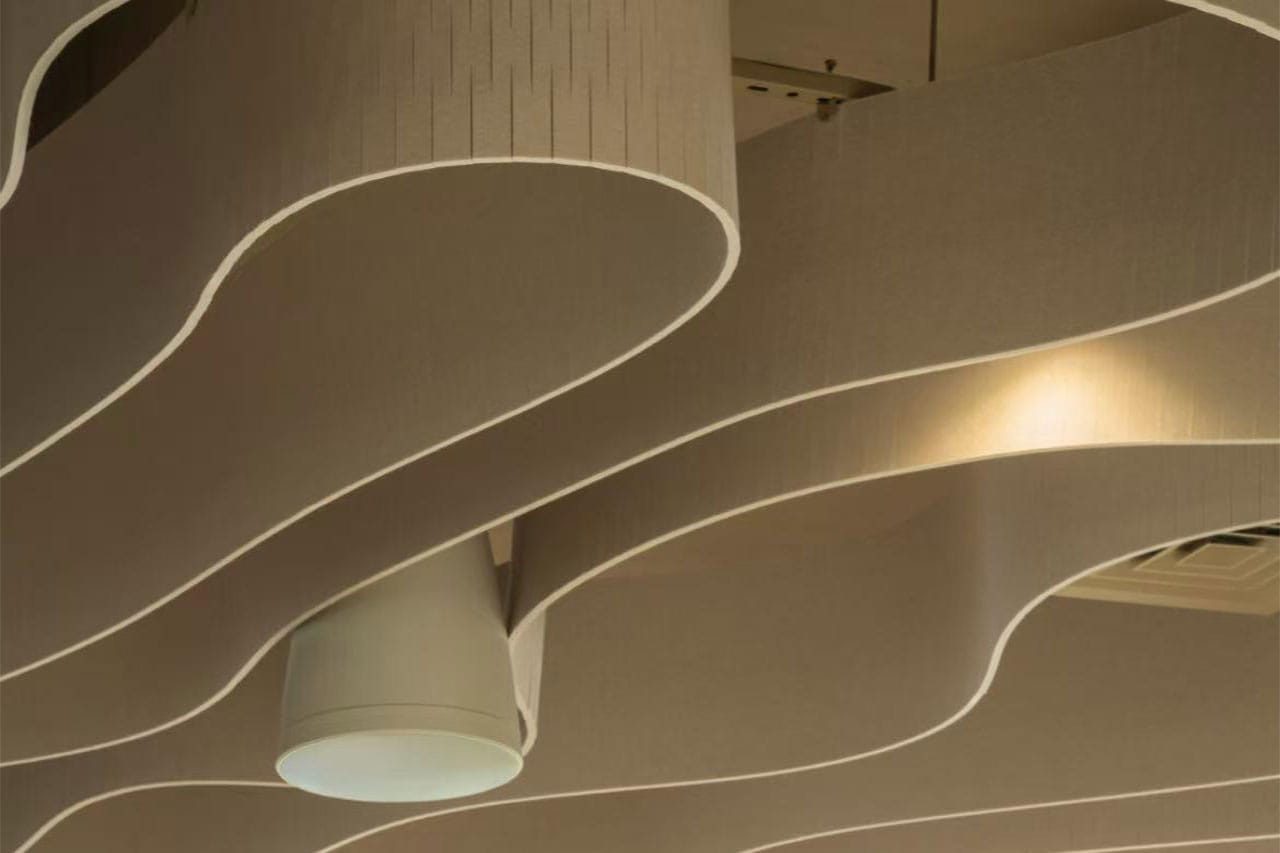

Polyx Contour Baffle

Contour Baffle

A graph titled ISO 354 with 200mm Air Gap shows absorption coefficient (α) on the y-axis and 1/3 octave center frequency (Hz) on the x-axis, ranging from 315 to 5000 Hz, with α values rising to nearly 1.0 at higher frequencies.

Polyx™ Contour Baffle features longitudinally curved baffles, slotted into Unistrut channels for easy installation, absorbing sound and reducing reverberation.

Polyx Printed 1280px

Printed

A graph shows absorption coefficient increasing from 0.0 to about 1.1 as the 1/3 octave center frequency rises from 100 Hz to 5000 Hz, based on ASTM C423-17 with 24mm Polyx™ material.

Polyx™ Printed Polyester Board, made from polyester fibers, absorbs sound and reduces reverberation, available in 9mm, 12mm, 18mm, and 24mm thicknesses.

Polyx-Wood-1280px

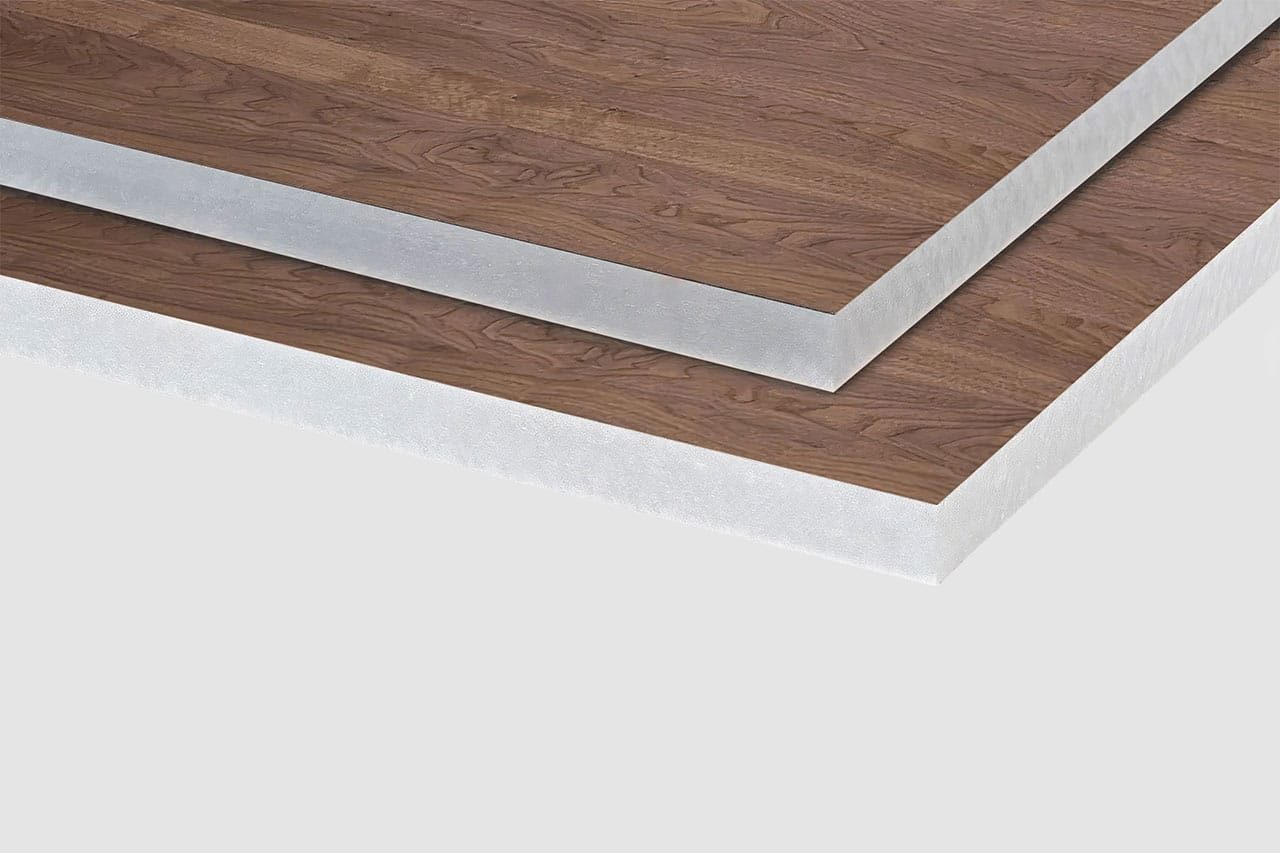

Wood

A graph titled ASTM C423-17 with 24mm Polyx shows absorption coefficient values from 0 to 1.1 on the y-axis and octave center frequency (Hz) from 100 to 5000 on the x-axis, with a shaded area rising to over 1.0.

Polyx™ Wood is a 100% PET board with a veneer-printed surface, absorbing sound and reducing reverberation, available in 9mm, 12mm, 18mm, and 24mm.

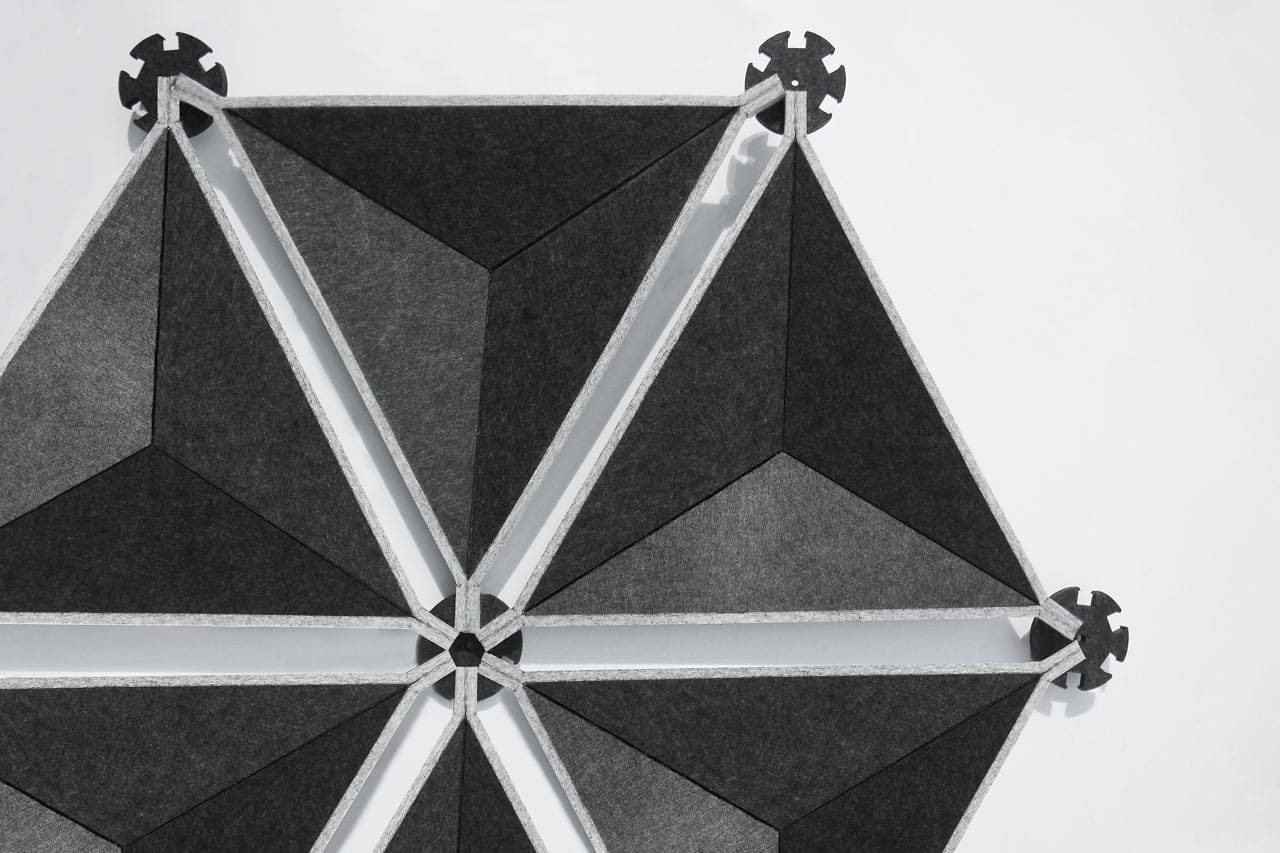

Tri-Hex

Tri-Hex

A graph showing absorption coefficient versus frequency (Hz) per ISO 354 with 100mm air gap. Absorption ranges from about 0.4 to 0.7 across 315 to 5000 Hz, with fluctuations.

Polyx™ Tri-Hex modular 3D panels form hexagonal units, with high-density polyester absorbing sound and reducing reverberation.

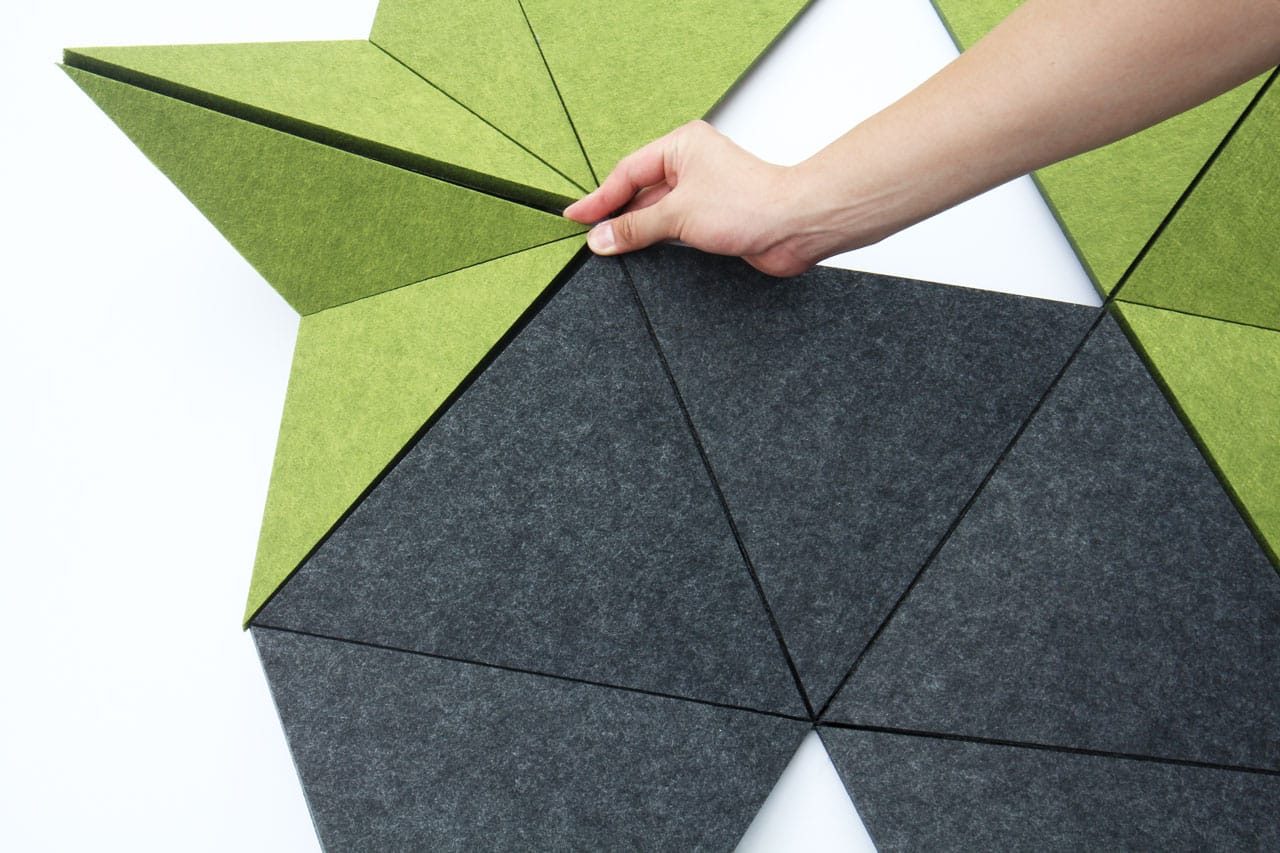

Polyx Tesellate

Tesellate

A graph showing absorption coefficient (α) versus 1/3 octave center frequency (Hz) from 315 to 5000, with absorption increasing gradually and peaking above 1.0 at 5000 Hz. Labeled ASTM C423-17.”.

Polyx™ Tessellate offers three 3D panel types—Kite, Tri, and Hex—that can be combined to absorb sound and reduce reverberation.

Project Highlight

12mm Polyester Wave Baffle

In the newly built Abu Dhabi SeaWorld’s Flamingo Point, the space features 12mm Polyx™ polyester ceiling baffles, intricately CNC cut into wave patterns, enhancing both design and acoustics. These baffles play a pivotal role in ensuring an exceptional auditory experience for visitors, harmonizing the blend of design and sound in the space.

How Does Polyx™ Polyester Acoustic Panel Work?

Polyx™ polyester acoustic panels enhance sound absorption using high-density PET felt boards and precision-engineered acoustic surfaces. These systems improve sound control, thermal comfort, and overall acoustic quality in any environment. Designed for modern interiors, they elevate visual appeal, resist moisture and mold, and deliver practical benefits for customers. As an innovation-driven brand, Polyx™ develops acoustic solutions that balance performance, durability, and refined interior aesthetics.

A collection of rectangular fabric samples in earth tones such as brown, beige, green, and cream, with green plant leaves and tiny vines placed artfully on top. The samples are stacked on a light grey background.

Sound Absorption

In rooms with reflective surfaces and high ceilings, sound waves create echo and excessive reverberation that reduce speech clarity. Polyx™ polyester acoustic panels are engineered to absorb sound at the source, helping to control noise levels, improve sound quality, and create a more comfortable acoustic space for offices, auditoriums, and commercial spaces.

polyx 3

Designed for Architects

Effective acoustics should blend seamlessly with interior design. Polyx™ polyester acoustic panels come in a wide range of textures, colors, and panel styles to suit modern offices and public spaces. These acoustic felt panels integrate sound control without disrupting the overall visual identity of the room and enhance comfort in daily use.

A neat arrangement of fabric sample squares in light colors such as white, beige, and shades of blue and green, laid out on a white background. Small leaves and pink flower petals are scattered between the samples.

Warranty Guaranteed

High-use environments require acoustic systems that last. Polyx™ polyester acoustic panels are crafted with durable, impact-resistant, and eco-conscious materials to deliver consistent acoustic performance. Supported by reliable warranty protection, they provide long-term stability, sound absorption benefits, and peace of mind for customers across a wide range of demanding projects.

Standards

Material: 100% PET Polyester
Standard Dimension: 1200mm x 2400mm
Felt Thickness: 2mm, 3mm
Board Thickness: 6mm, 9mm, 12mm, 25mm
Bevel Angle: 45°

  • Eco-Friendly Test:
    Oeko-Tex® Standard 100
  • Fire Classification Test:
    EN 13501-1 = Class B
  • Smoke Density Test:
    EN 13501-1 = s1 d0
An array of green felt fabric samples arranged in various shades of green, with small leaves and plants placed around them, creating a nature-inspired aesthetic.

Frequently Asked Questions

Polyx™ polyester acoustic panels are designed to improve sound absorption, reduce echo, and enhance speech clarity in offices, classrooms, studios, auditoriums, and commercial interiors. These lightweight PET panels also support thermal comfort, resist moisture and mold, and provide a safe, eco-conscious acoustic solution for modern spaces.

Polyester acoustic panels are made from compressed PET fibers, offering lightweight installation, design flexibility, and excellent acoustic absorption. Mineral panels provide higher fire performance, while fabric panels allow stretched finishes with concealed seams. Each option serves different acoustic, aesthetic, and budget requirements.

Polyx™ panels absorb sound through their dense fibrous PET structure, capturing noise energy across speech frequencies. This reduces reverberation, minimizes echo, and improves overall clarity in meeting rooms, open offices, learning spaces, and commercial environments.

Yes. Because they are lightweight, durable, moisture-resistant, and easy to maintain, Polyx™ panels are ideal for offices, retail stores, hospitality venues, classrooms, home studios, and many other commercial interiors requiring effective acoustic control.

Absolutely. Polyx™ panels come in multiple thicknesses, colors, finishes, and CNC-cut patterns. They can be installed on walls, ceilings, baffles, clouds, or shapes, allowing designers to customize both the visual look and the acoustic performance of any space.
