Timberix™
Timberix™ reduce echoes by trapping and diffracting sound in the grooves and perforation found on the surface. The sound that passes through the perforation is further absorbed by an acoustic substrate such as fibreglass or mineral wool, which reduces reverberation of the space.
Most Popular
Grooved
Perforated
Microperforated
Timberix™ Microperforated are micro-holes only perceptible at short eye distance (+/- 250 000 holes/m2) and laminated on a 15mm thick MDF board.
Microperforated
Material: E1 MDF, FR MDF, MgO Composite Board
Structure: Base Material, Finishing & Fleece
Finishing: Melamine, Veneer, Laminate, Paint
Dimension: 2400mm x 128mm or 192mm
Standard Thickness: 12mm, 15mm, 18mm
Standard Pattern: 3.6-1.8-0.5, 8-8-1, etc.
-
Eco-Friendly Test:
EN 13986 = E1 -
Fire Classification Test:
EN 13501-1 = Class B -
Smoke Density Test:
EN 13501-1 = s1 d0
Grooved
Material: E1 MDF, FR MDF, MgO Composite Board
Structure: Base Material, Finishing & Fleece
Finishing: Melamine, Veneer, Laminate, Paint
Dimension: 2420mm x 128mm or 192mm
Standard Thickness: 12mm, 15mm, 18mm
Standard Pattern: 13-3, 14-2, 28/4, 59/5
-
Eco-Friendly Test:
EN 13986 = E1 -
Fire Classification Test:
EN 13501-1 = Class B -
Smoke Density Test:
EN 13501-1 = s1 d0
Perforated
Material: E1 MDF, FR MDF, MgO Composite Board
Structure: Base Material, Finishing & Fleece
Finishing: Melamine, Veneer, Laminate, Paint
Dimension: 2400mm x 128mm or 192mm
Standard Thickness: 12mm, 15mm, 18mm
Standard Pattern: 16-16-6, 32-32-6, etc.
-
Eco-Friendly Test:
EN 13986 = E1 -
Fire Classification Test:
EN 13501-1 = Class B -
Smoke Density Test:
EN 13501-1 = s1 d0

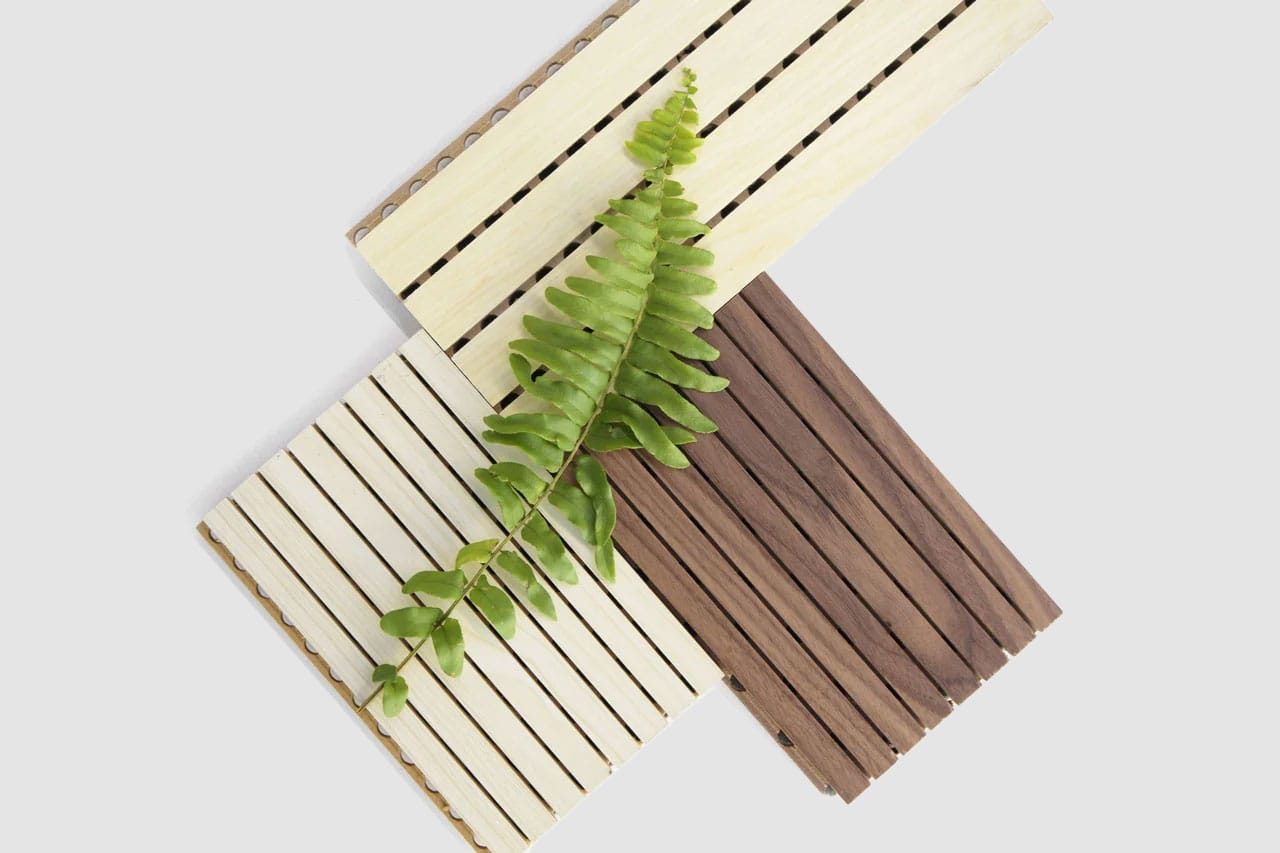

Grooved

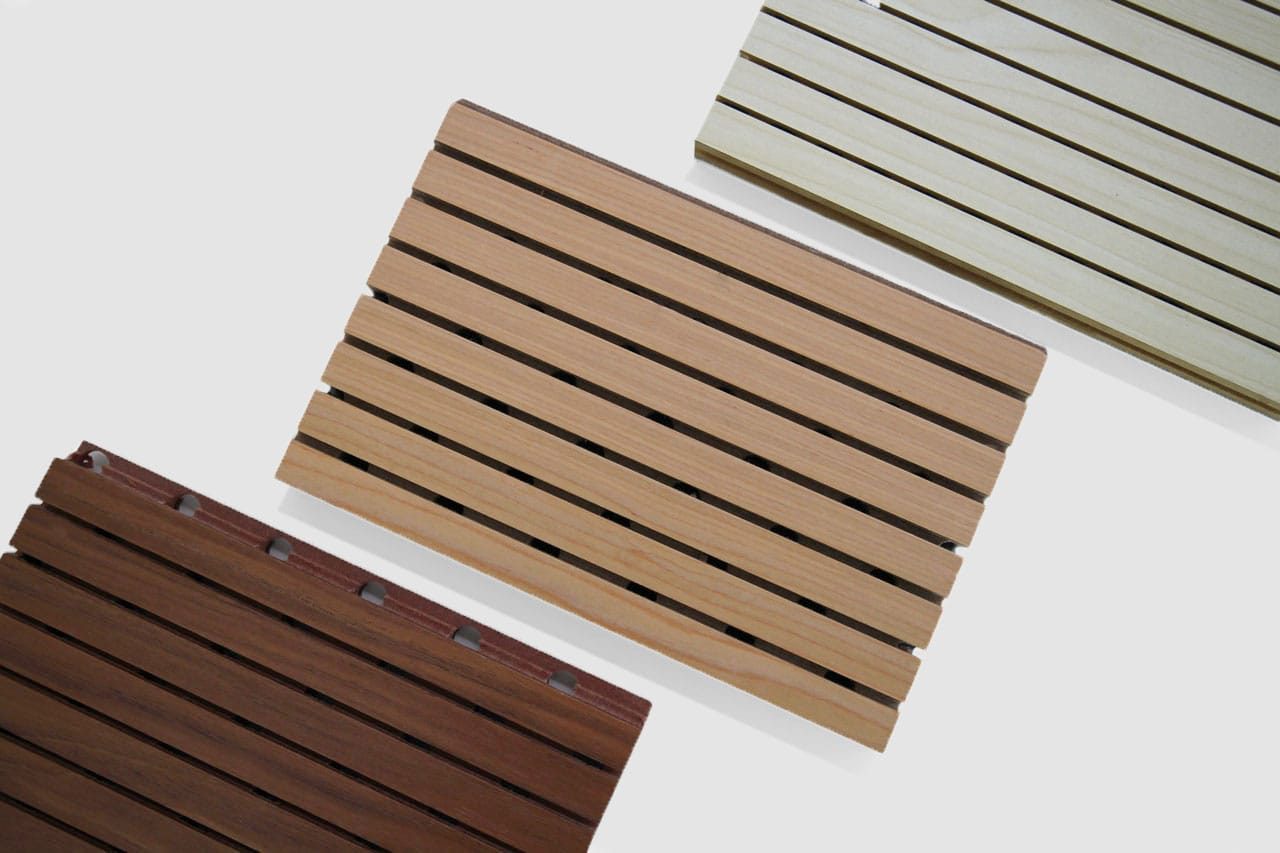

Grooved 12/4
Timberix™ 12-4 panels reduce echoes by trapping sound and absorbing high and low frequencies.

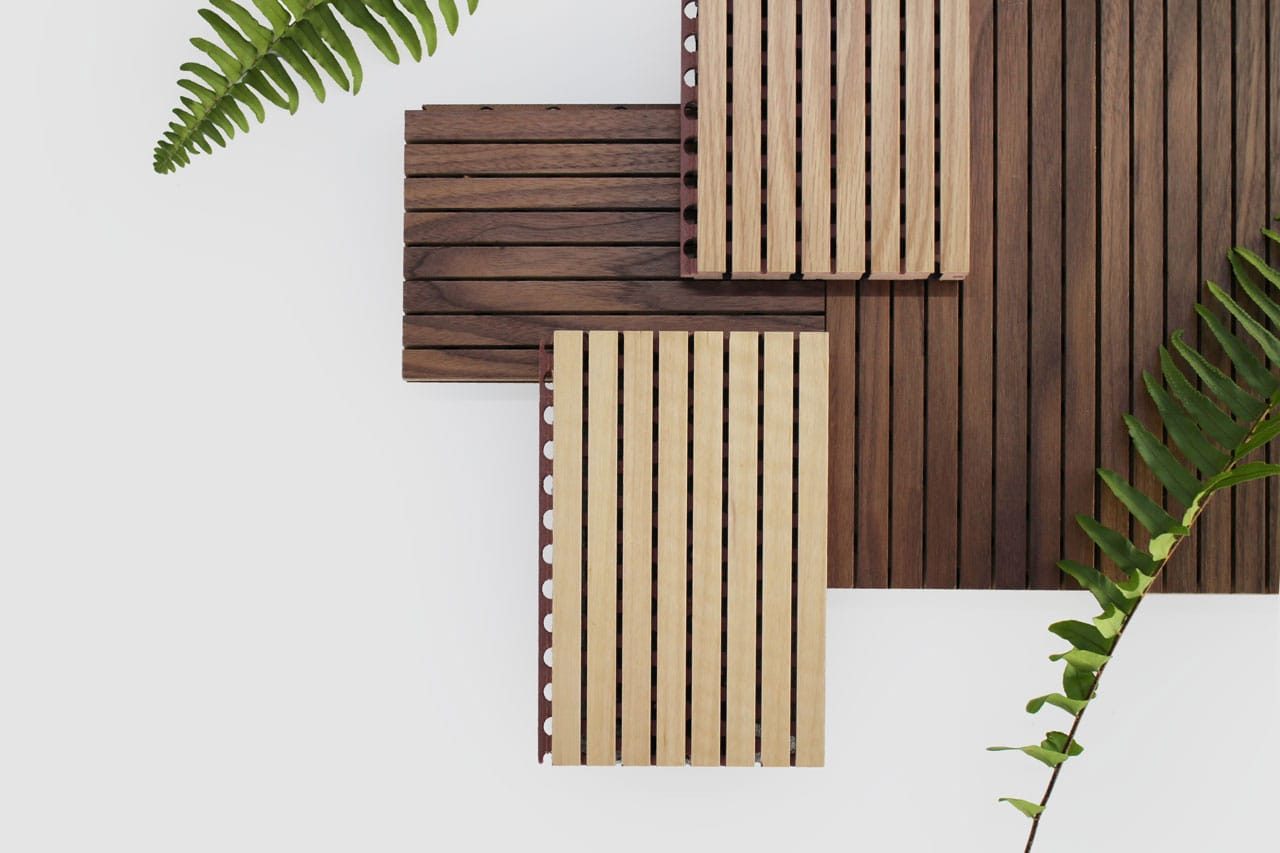

Grooved 13/3
Timberix™ 13-3 panels reduce echoes by trapping sound and absorbing high and low frequencies.

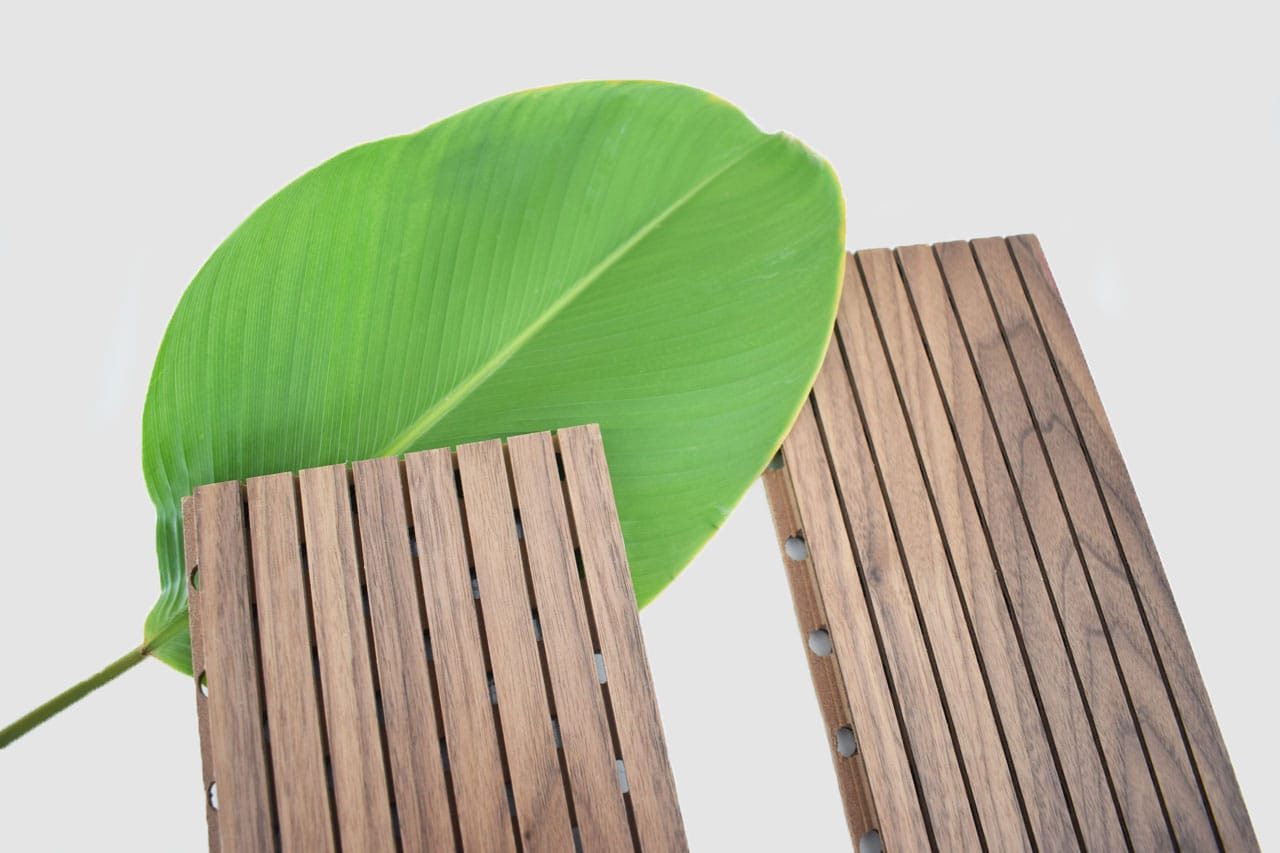

Grooved 14/2
Timberix™ 14-2 panels reduce echoes by trapping sound, with 50mm rockwool absorbing high and low frequencies.

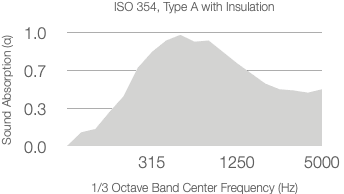

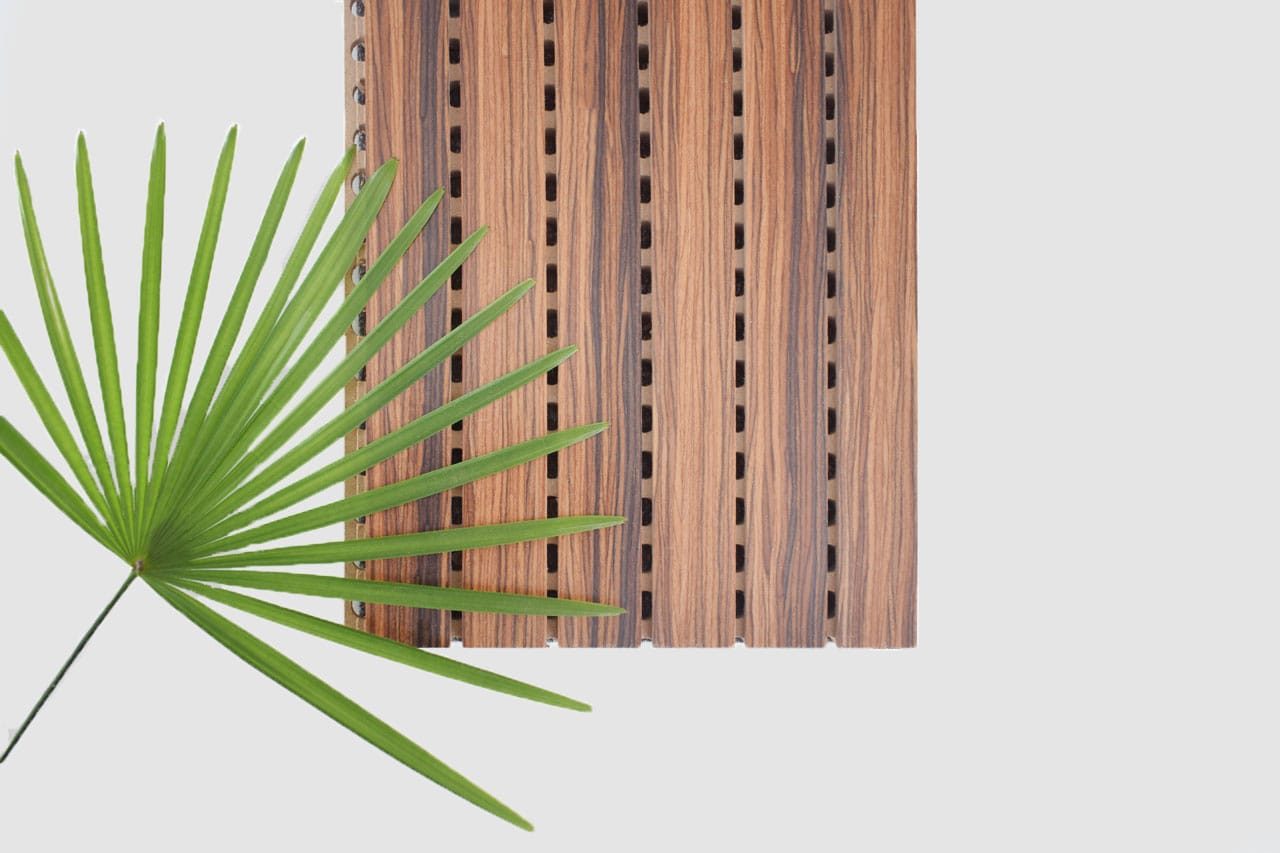

Grooved 28/4
Timberix™ 28-4 panels reduce echoes by trapping sound, with 50mm rockwool absorbing high and low frequencies.

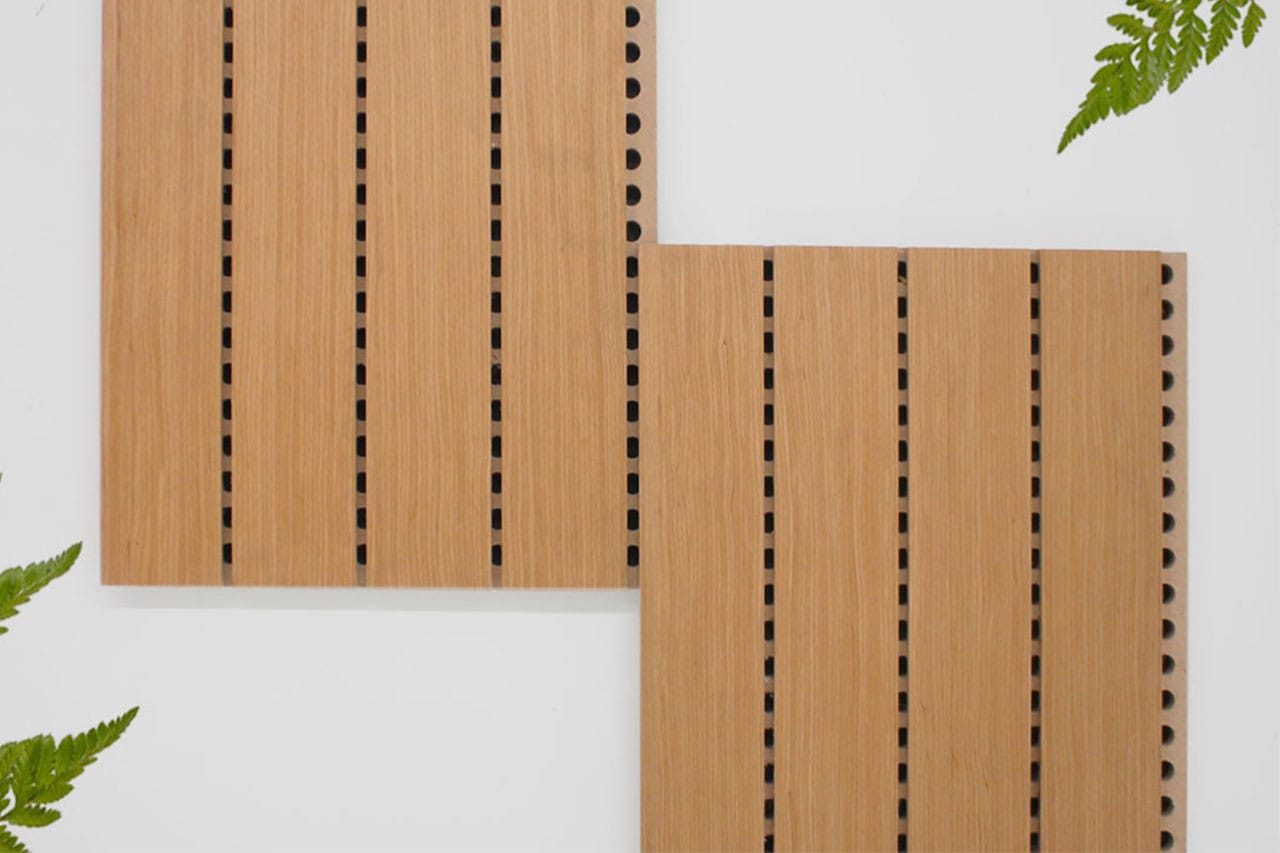

Grooved 59/5
Timberix™ 59-5 panels reduce echoes by trapping sound and absorbing high and low frequencies.

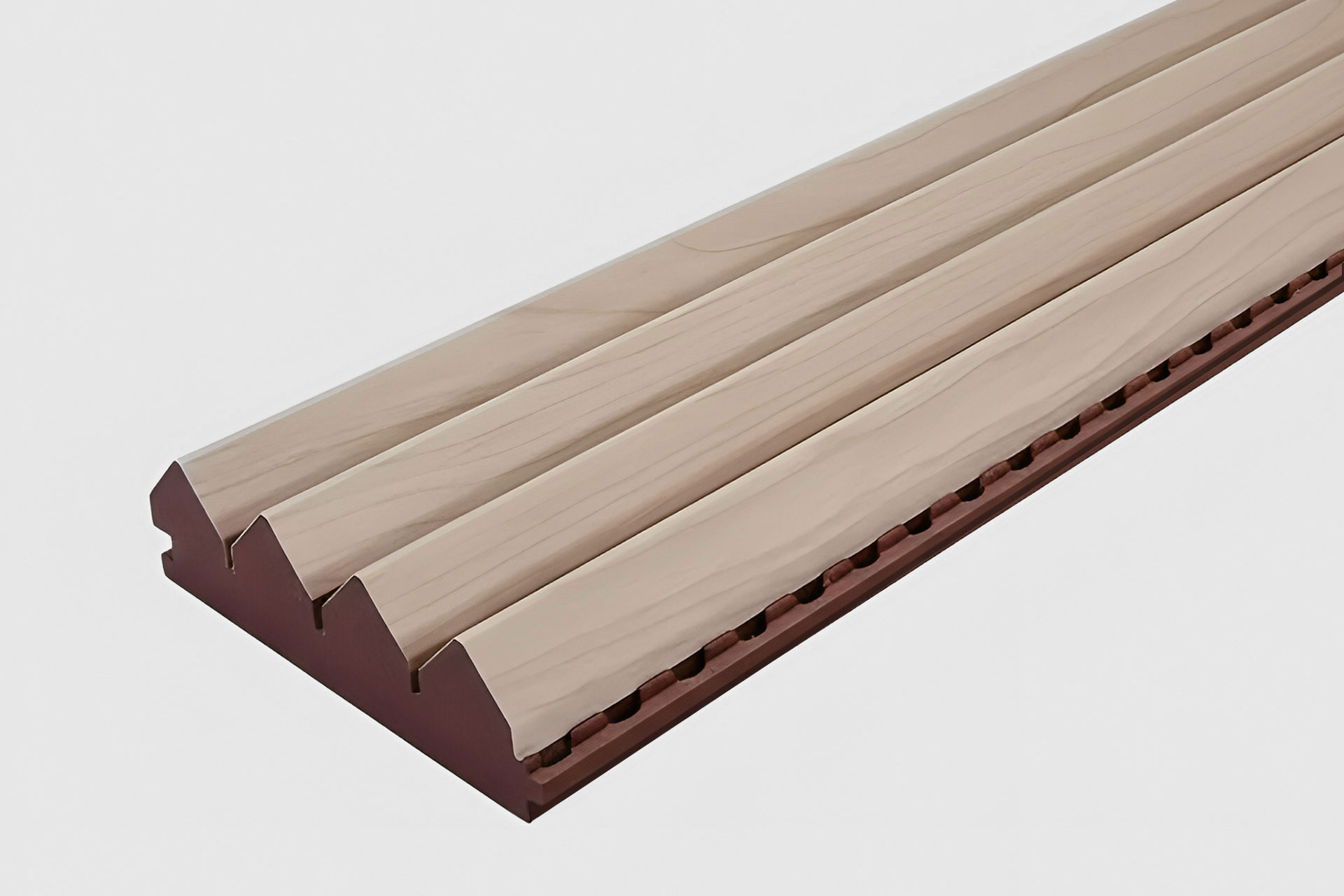

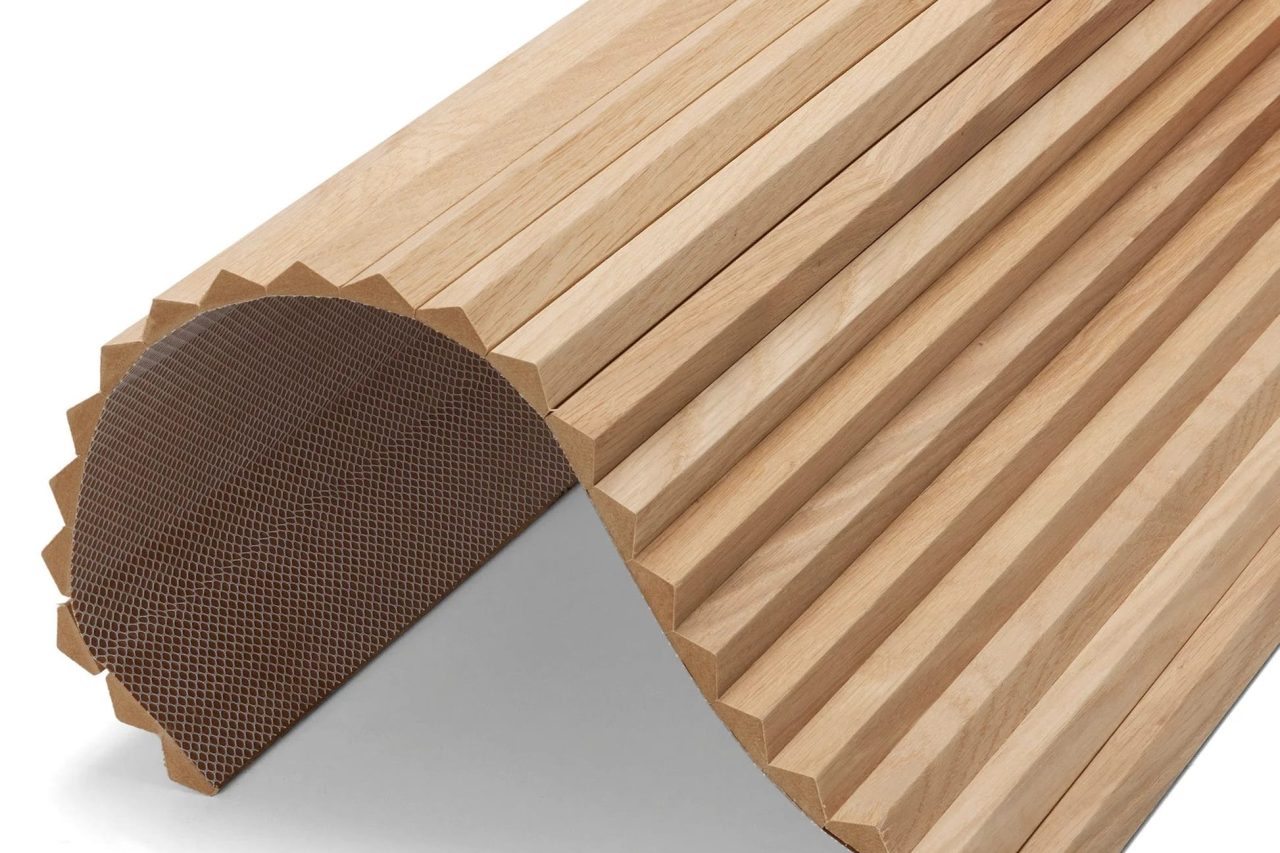

V-Grooved
Timberix™ V-grooved panels reduce echoes by trapping sound and absorbing high and low frequencies.
Perforated

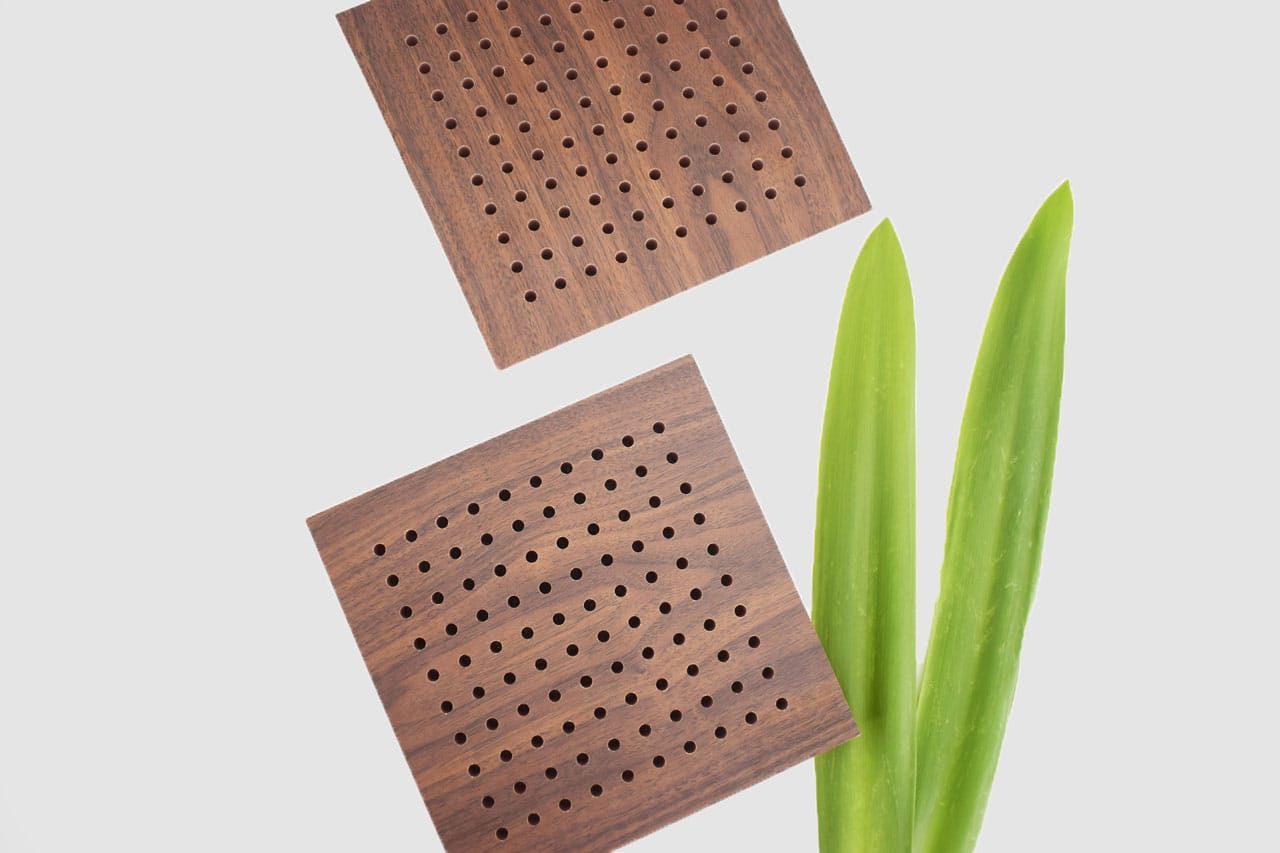

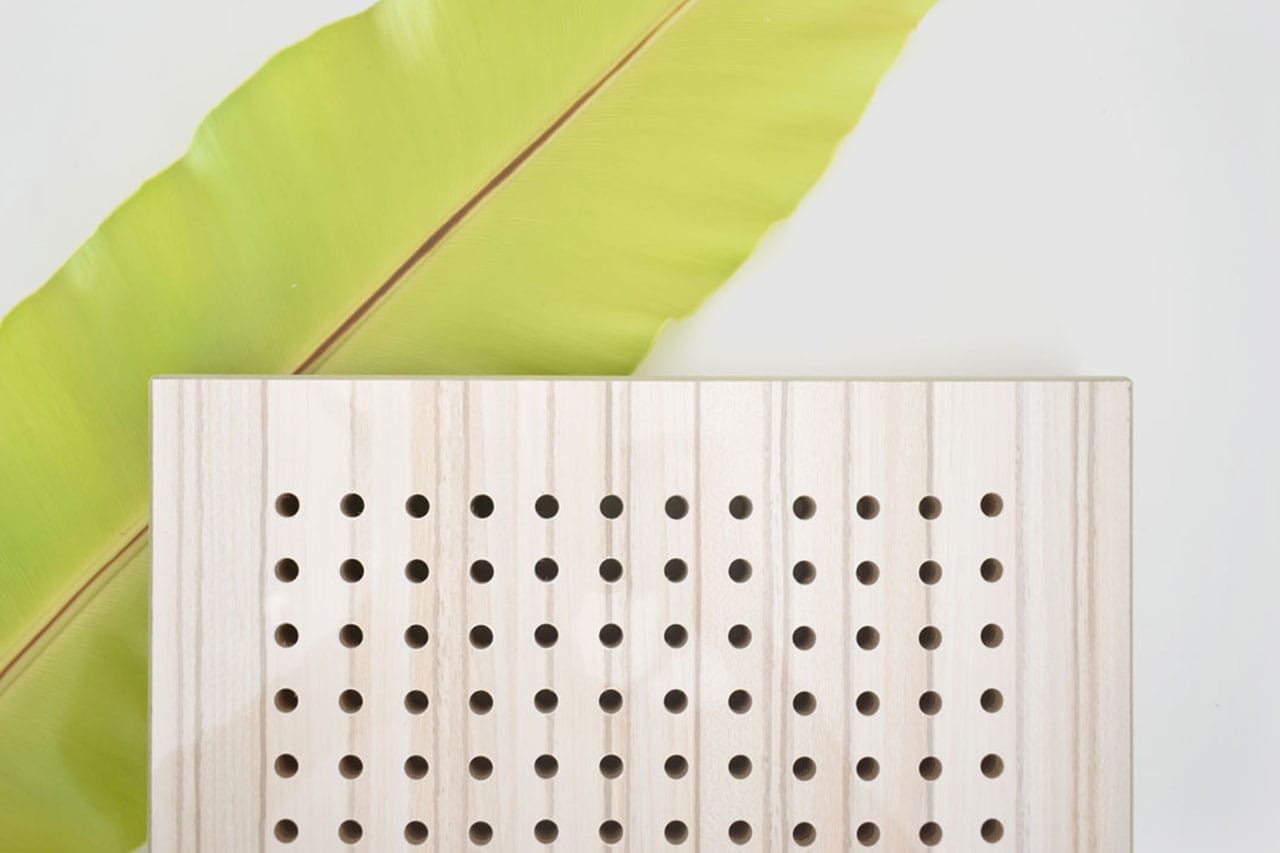

Perforated E 16/16/8
Timberix™ E 16/16/8 panels trap sound with a 2-layer perforation, while an acoustic substrate reduces reverberation.

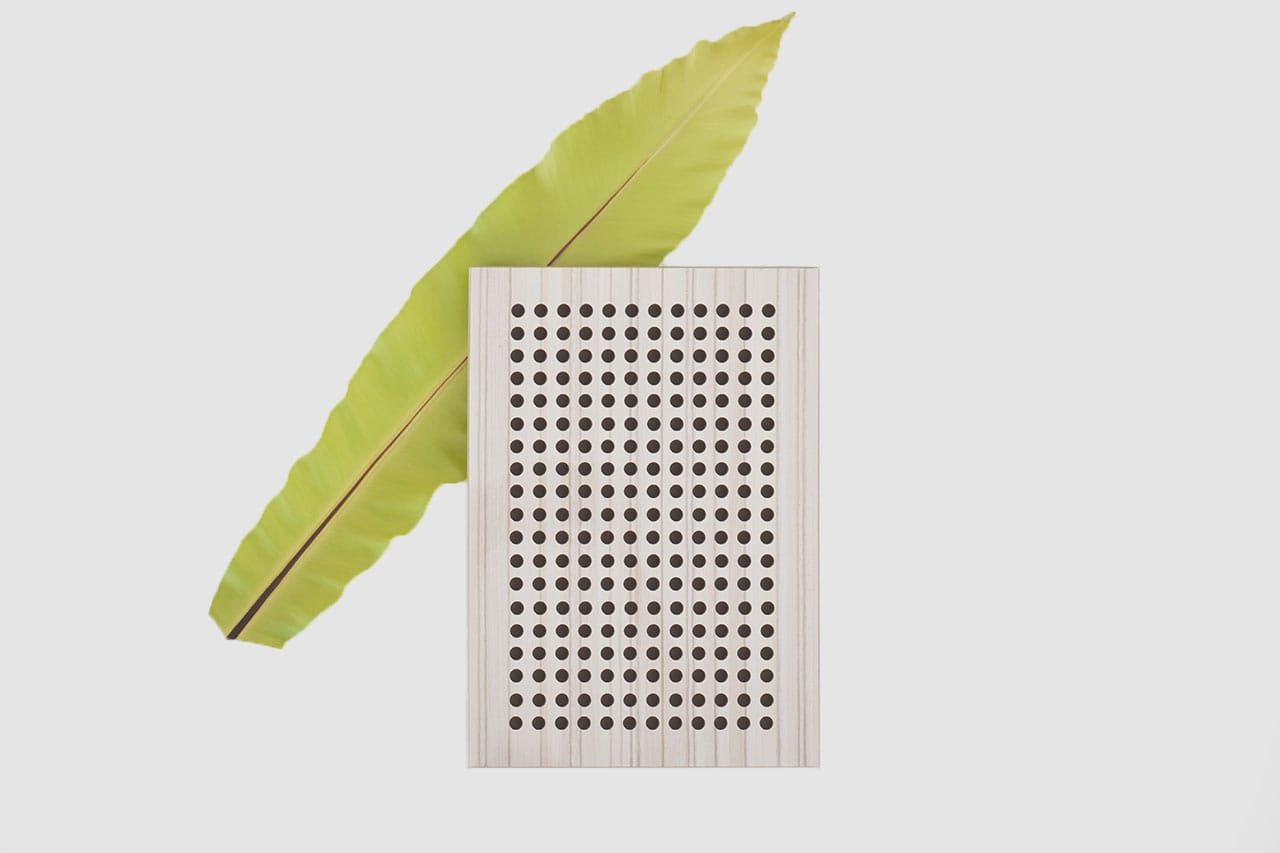

Perforated E 16/16/10
Timberix™ E 16/16/10 panels trap sound with a 2-layer perforation, while an acoustic substrate reduces reverberation.

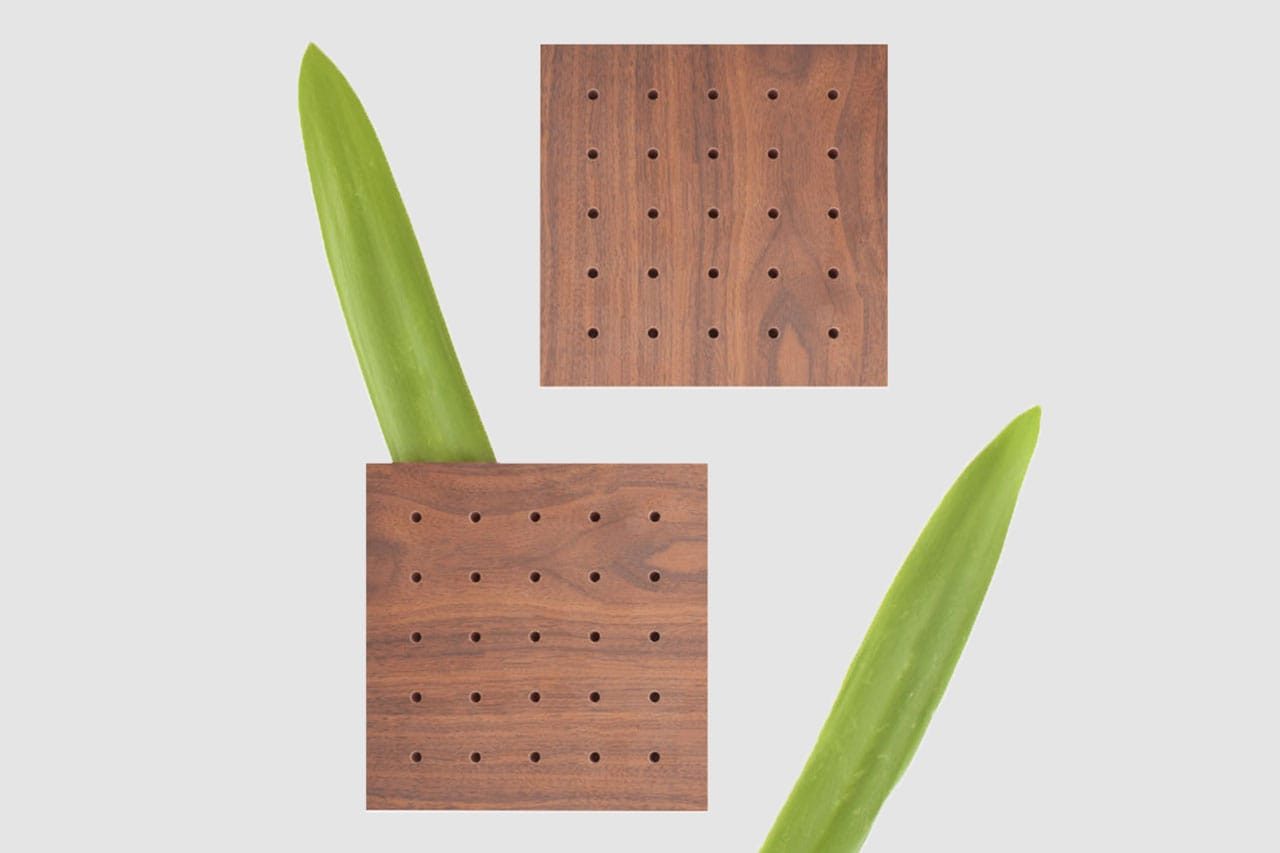

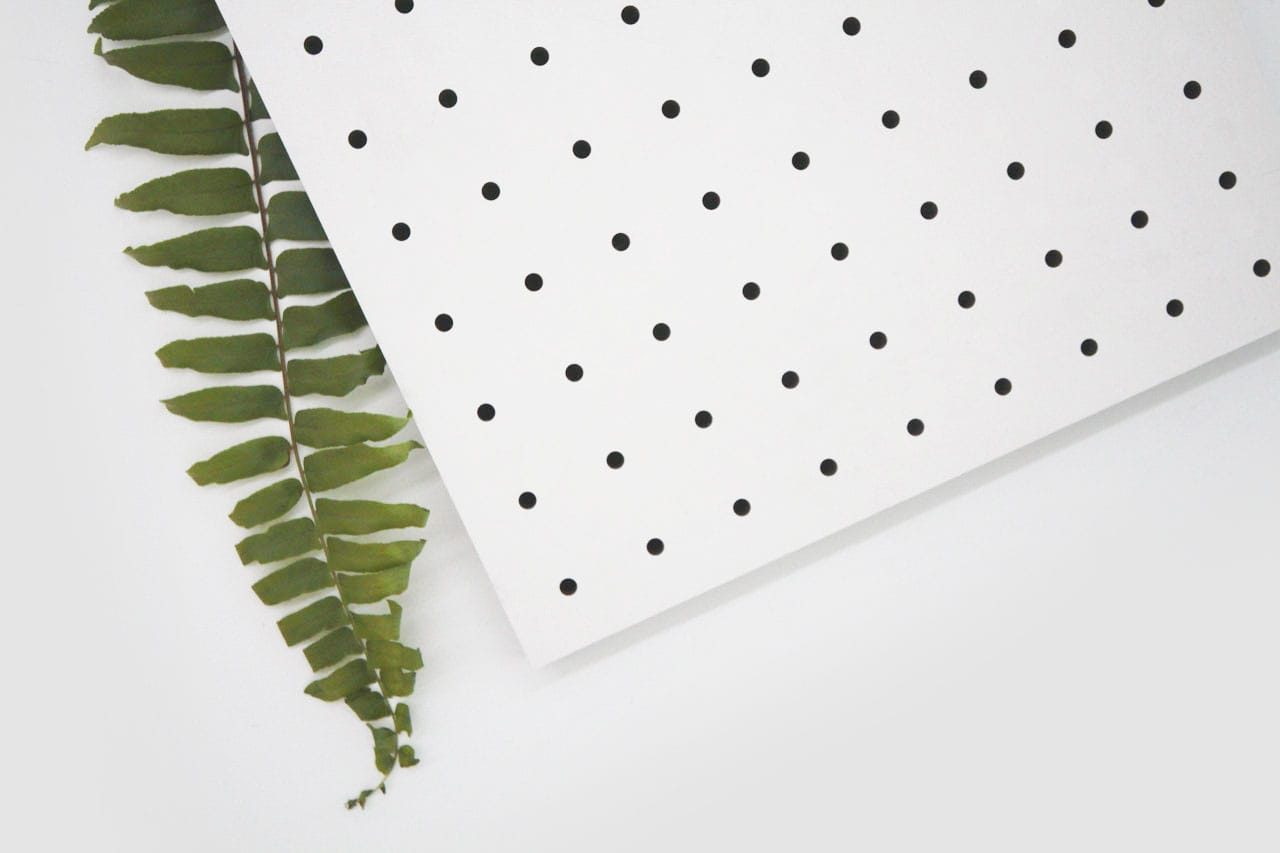

Perforated E 32/32/6
Timberix™ E 32/32/6 panels trap sound with a 2-layer perforation, while an acoustic substrate reduces reverberation.

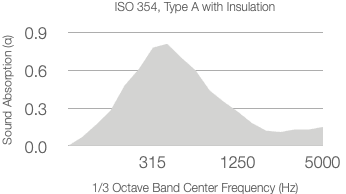

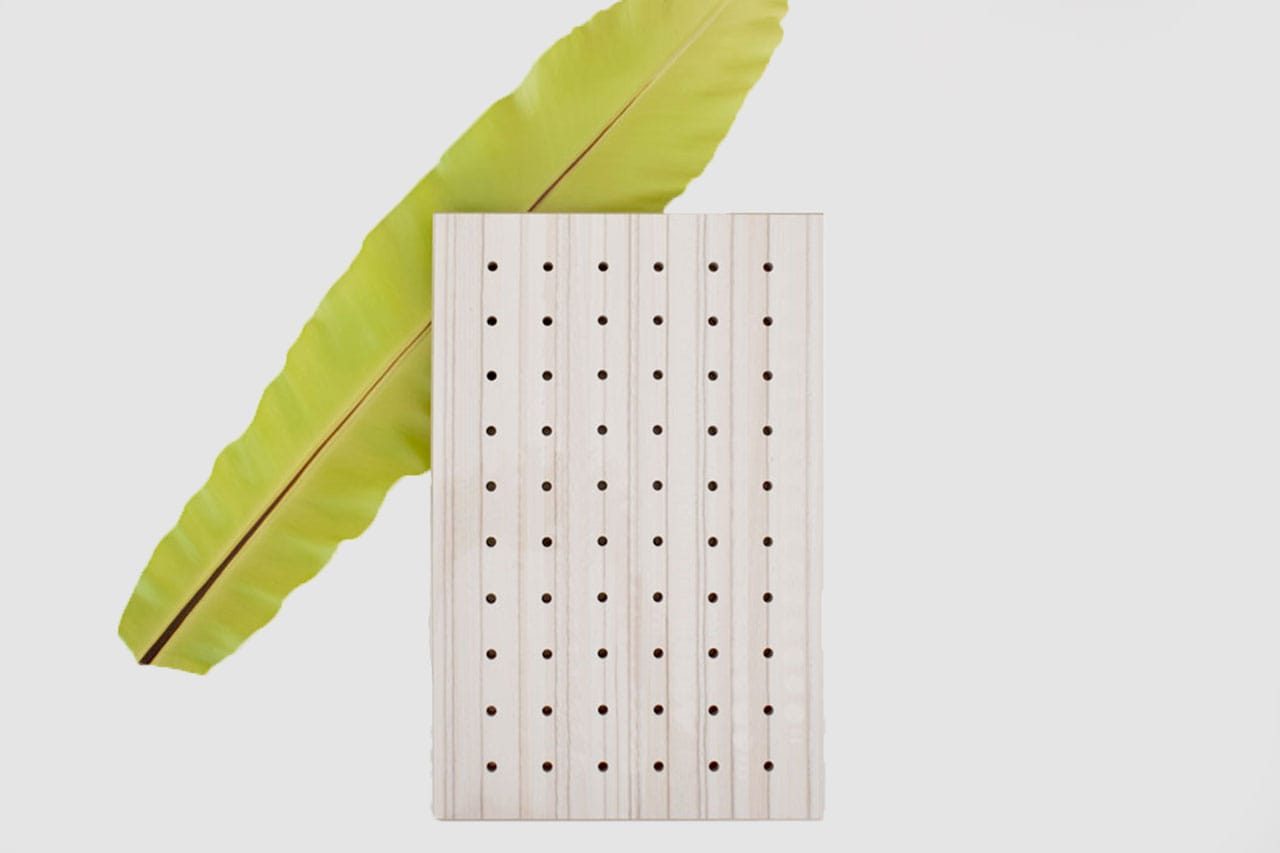

Perforated E 32/32/8
Timberix™ E 32/32/8 panels trap sound with a 2-layer perforation, while an acoustic substrate reduces reverberation.

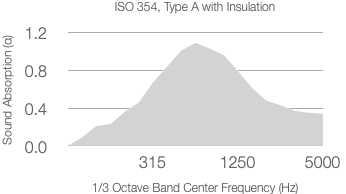

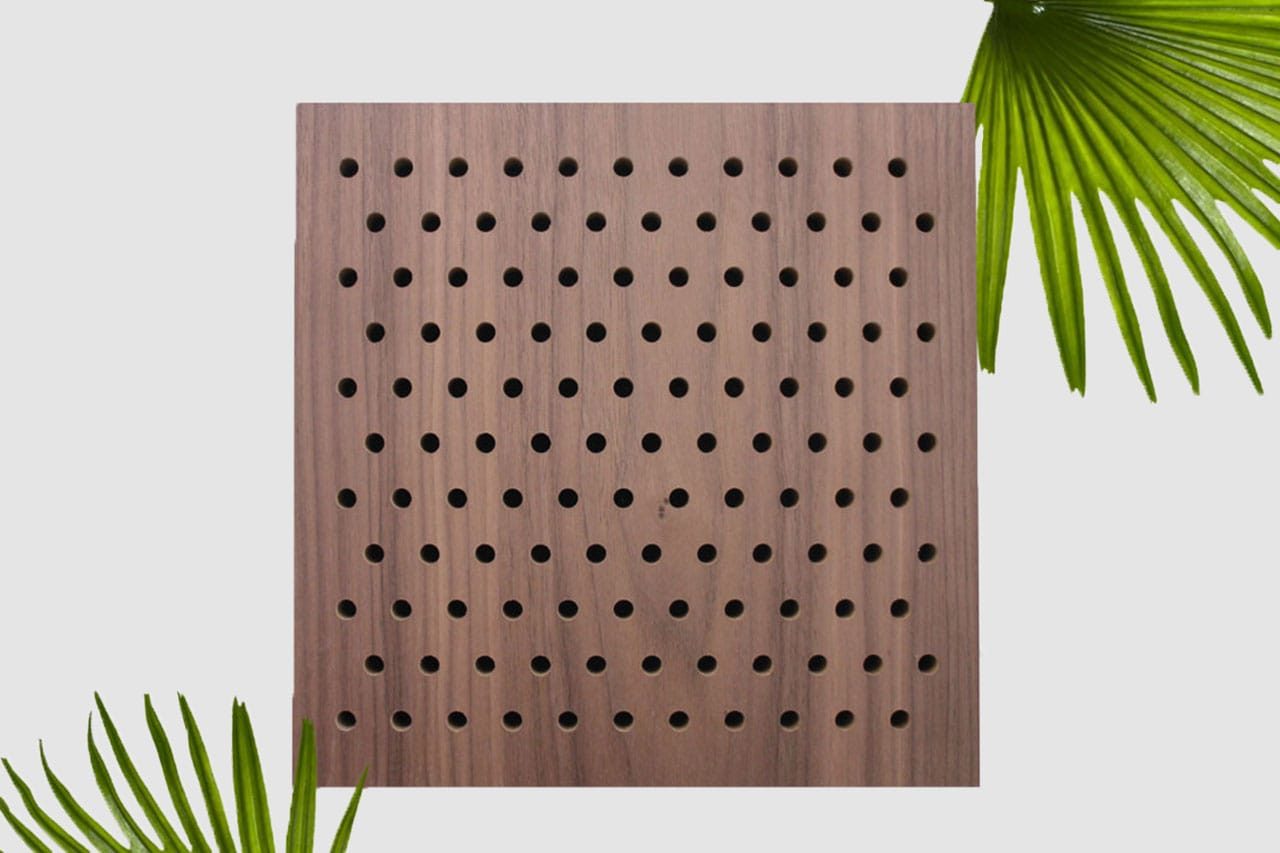

Perforated V 16/16/6
Timberix™ V 16/16/6 panels trap sound with a 2-layer perforation, while an acoustic substrate reduces reverberation.

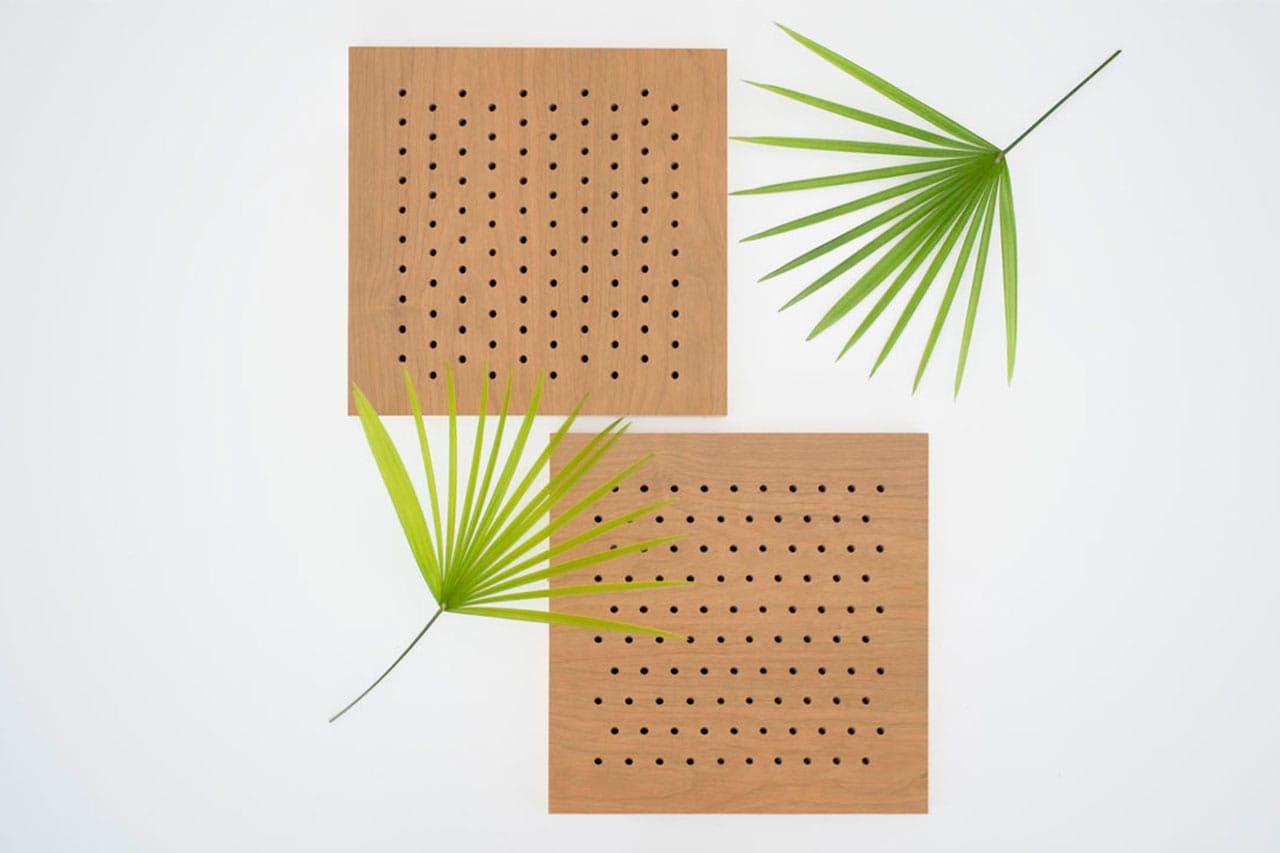

Perforated V 16/16/8
Timberix™ V 16/16/8 panels trap sound with a 2-layer perforation, while an acoustic substrate reduces reverberation.

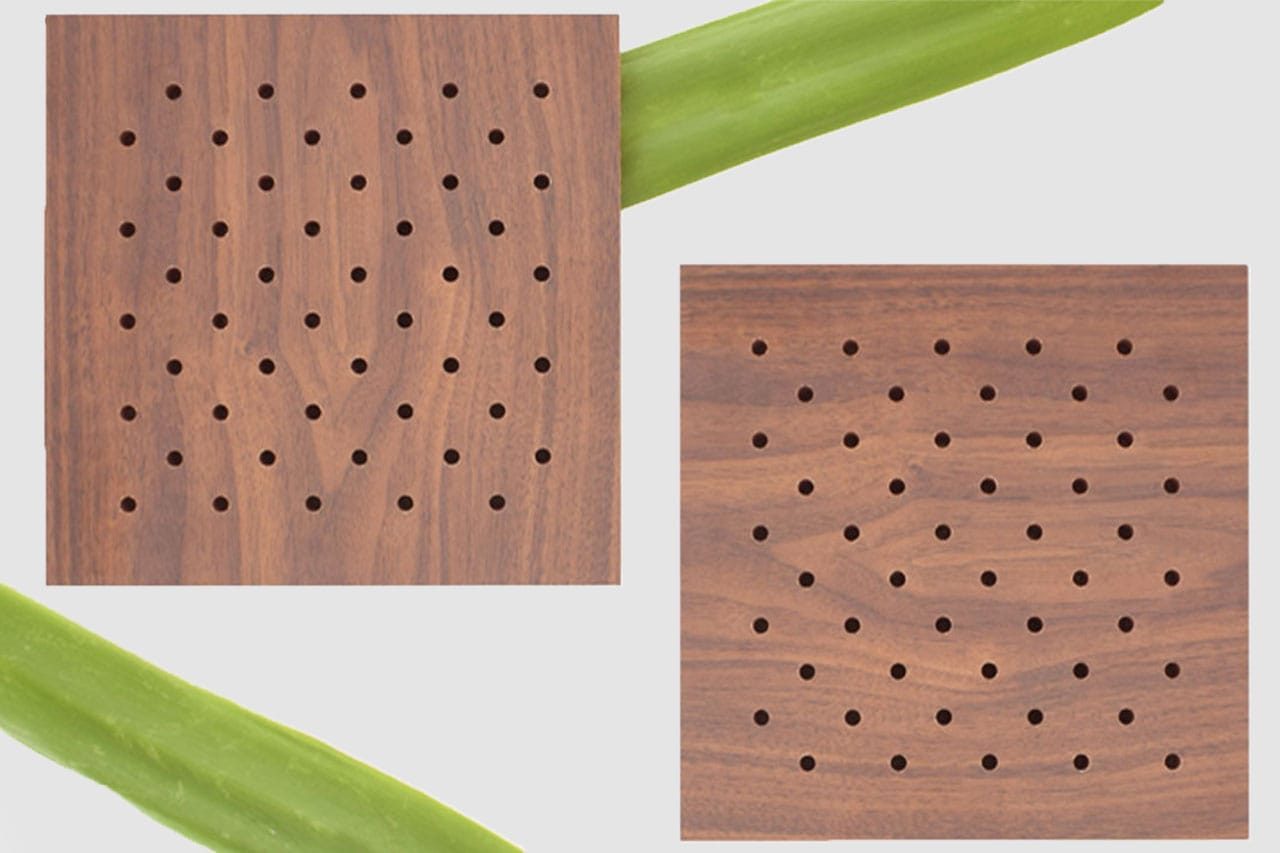

Perforated V 32/32/6
Timberix™ V 32/32/6 panels trap sound with a 2-layer perforation, while an acoustic substrate reduces reverberation.

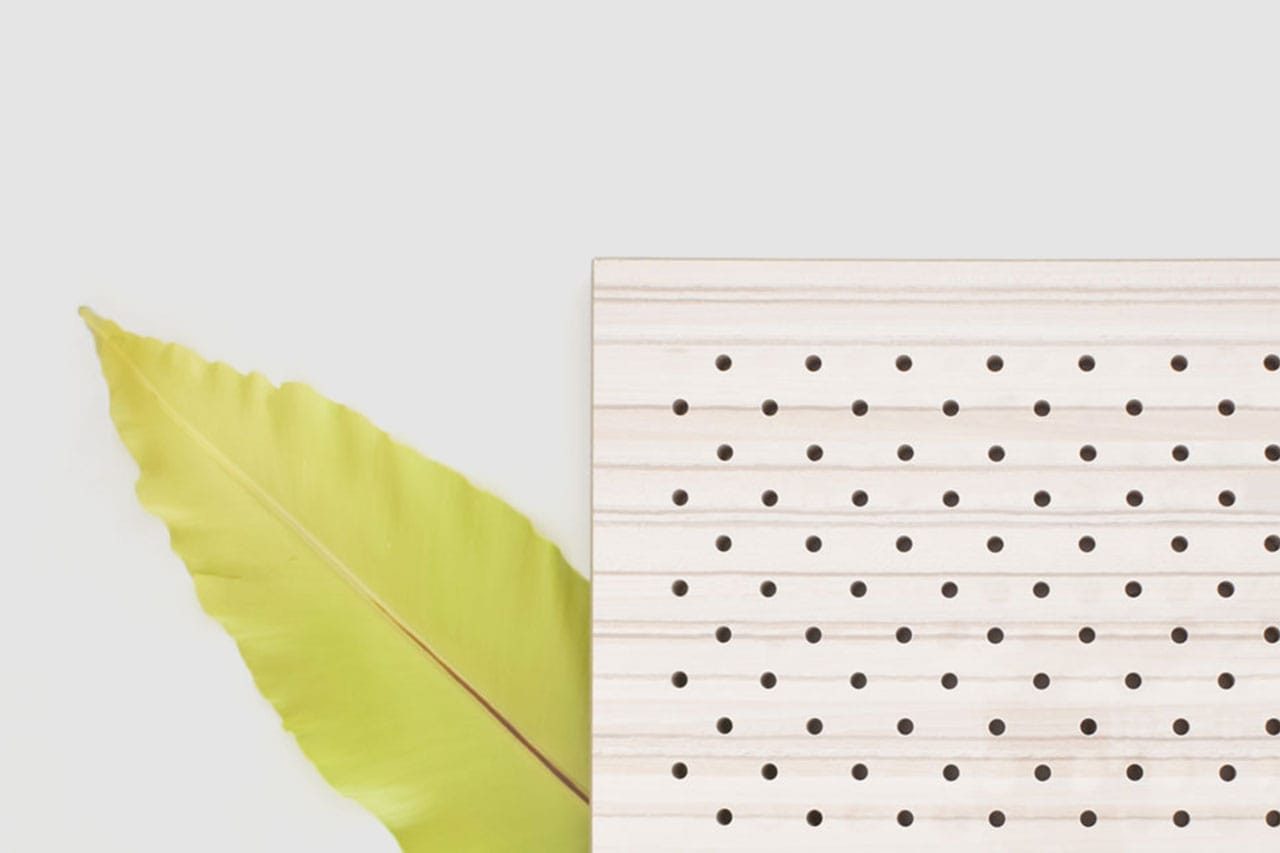

Perforated V 32/32/8
Timberix™ V 32/32/8 panels trap sound with a 2-layer perforation, while an acoustic substrate reduces reverberation.

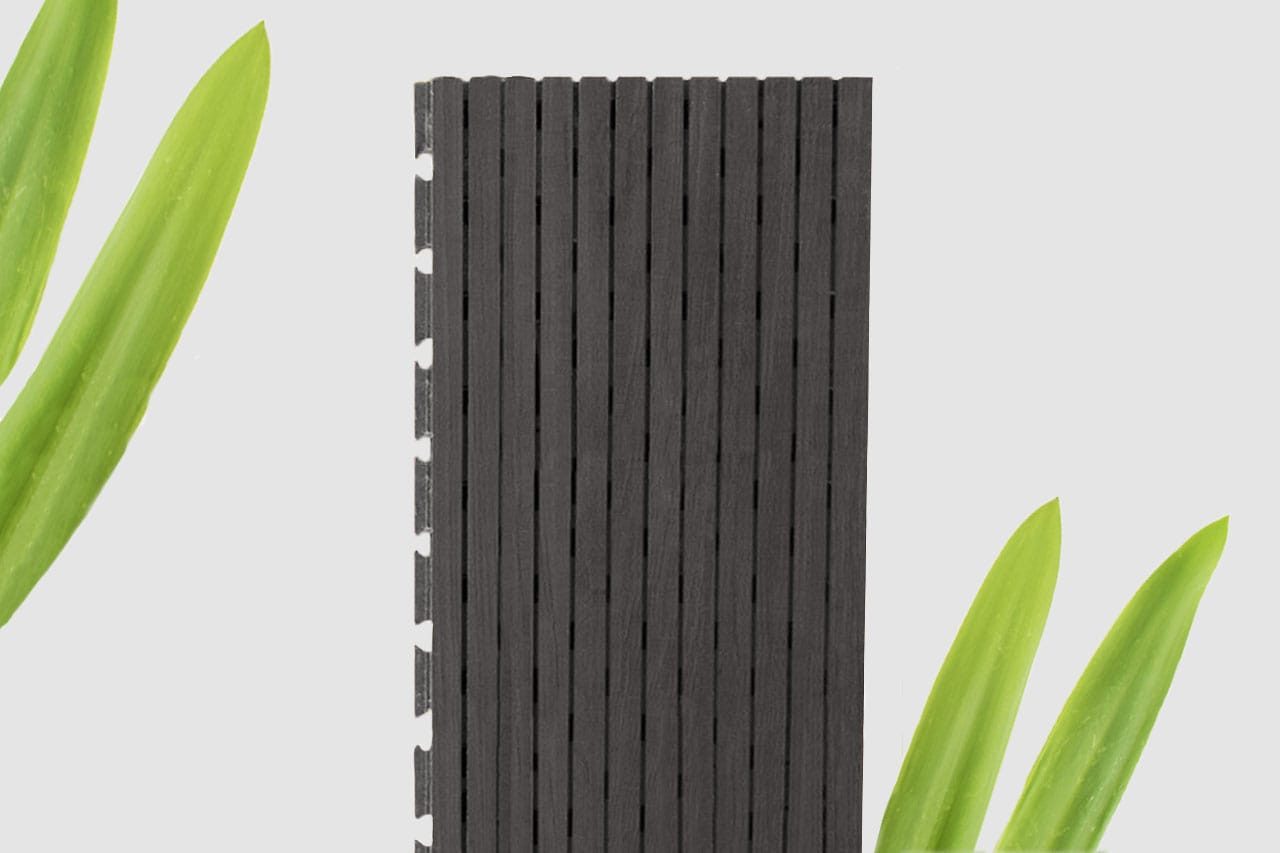

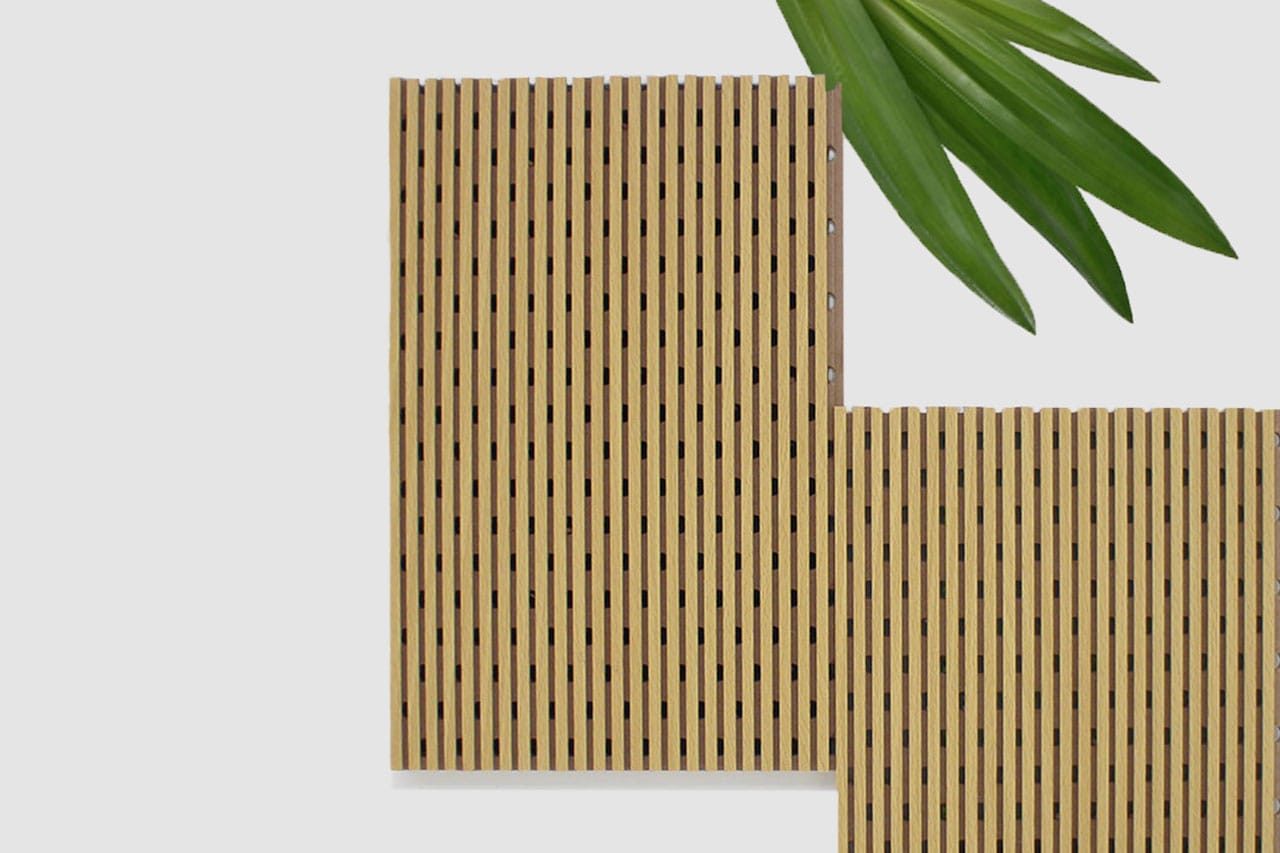

Microgrooved

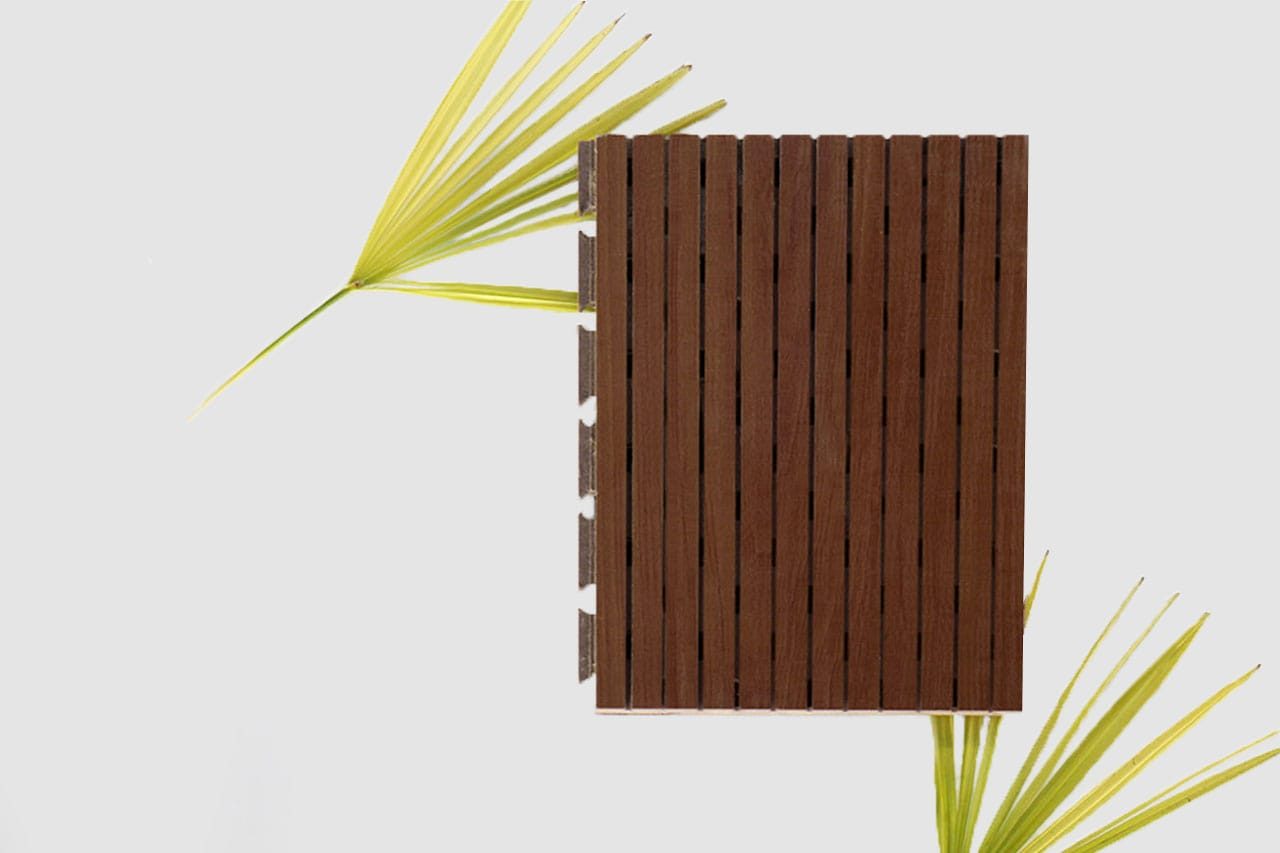

Microgrooved 8/2
Timberix™ 8-2 Microgrooved panels use smaller grooves to reduce echoes and absorb high-frequency sound.

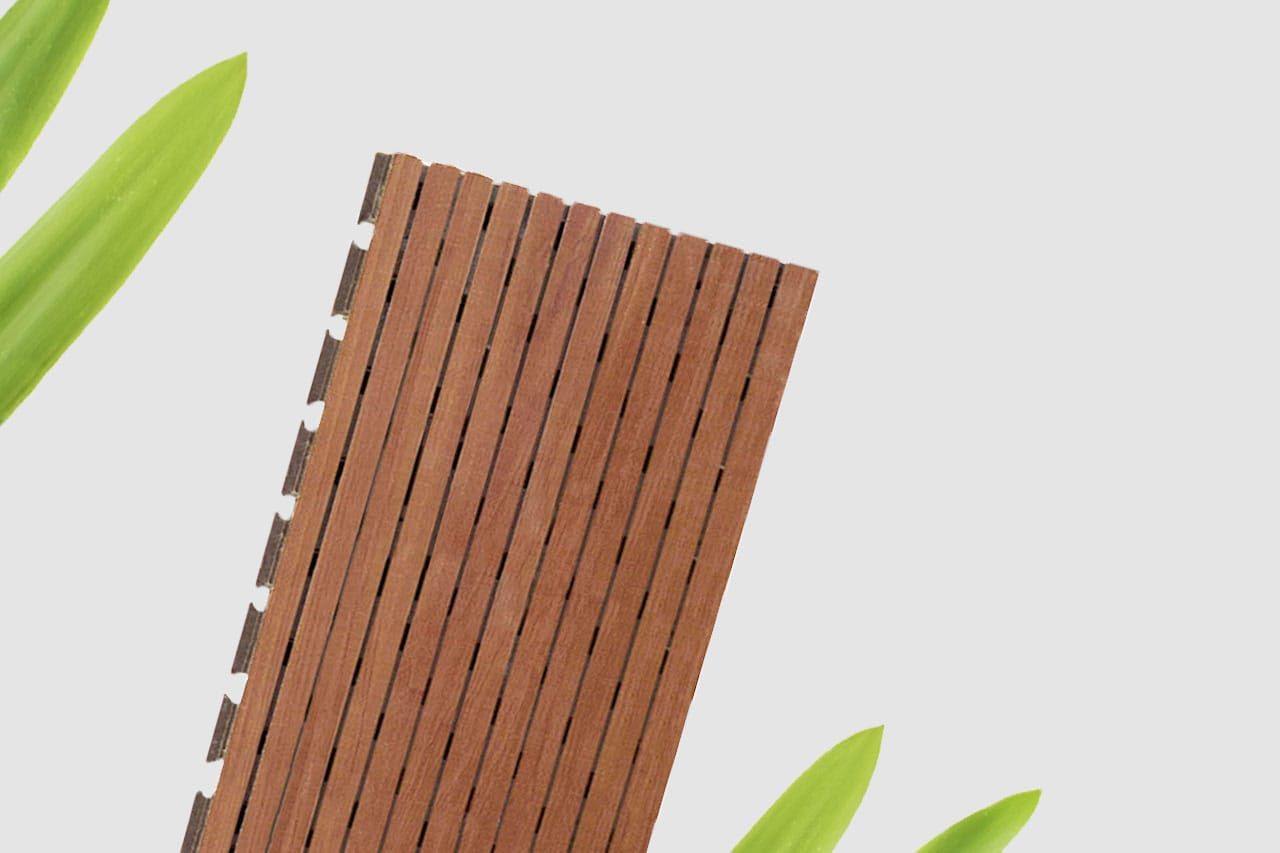

Microgrooved 9/2
Timberix™ 9-2 Microgrooved panels use smaller grooves to reduce echoes and absorb high-frequency sound.

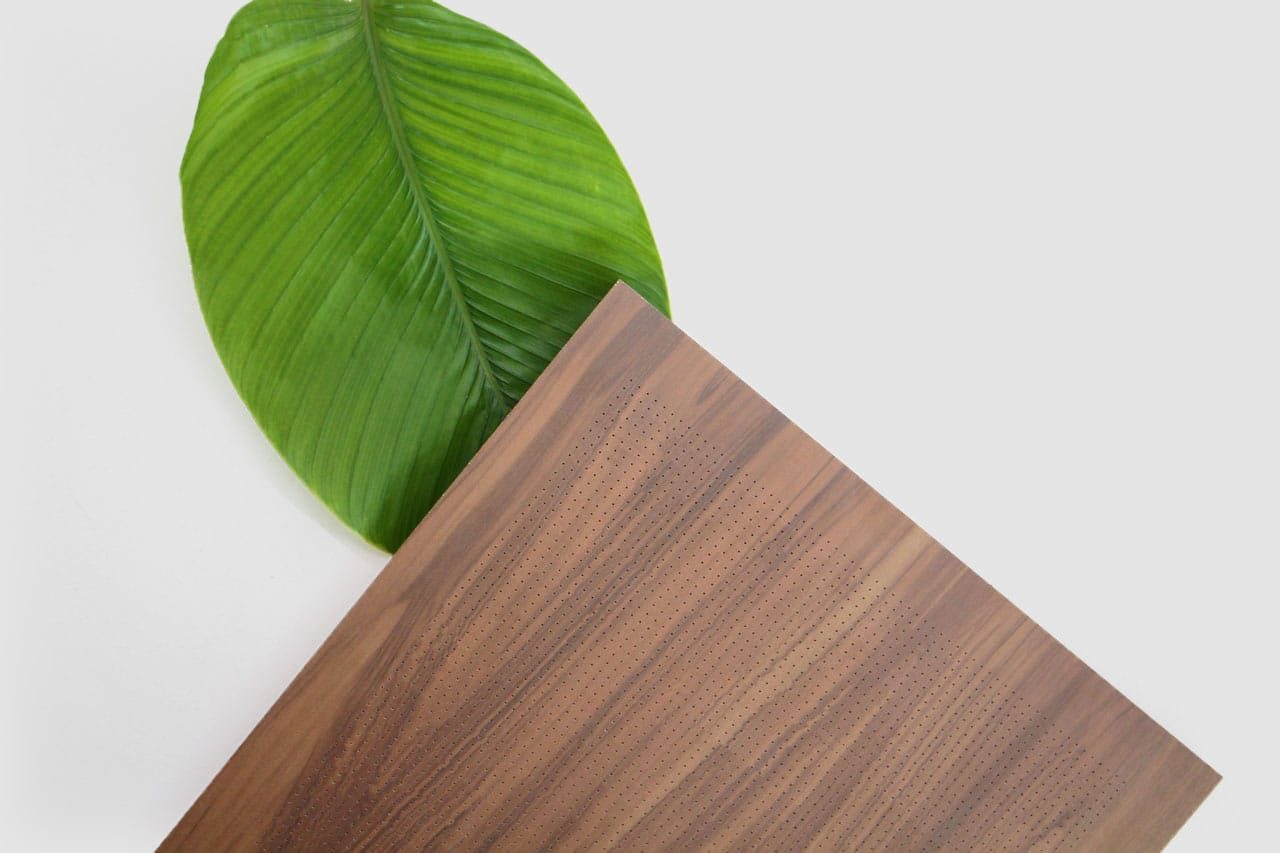

Milliperforated

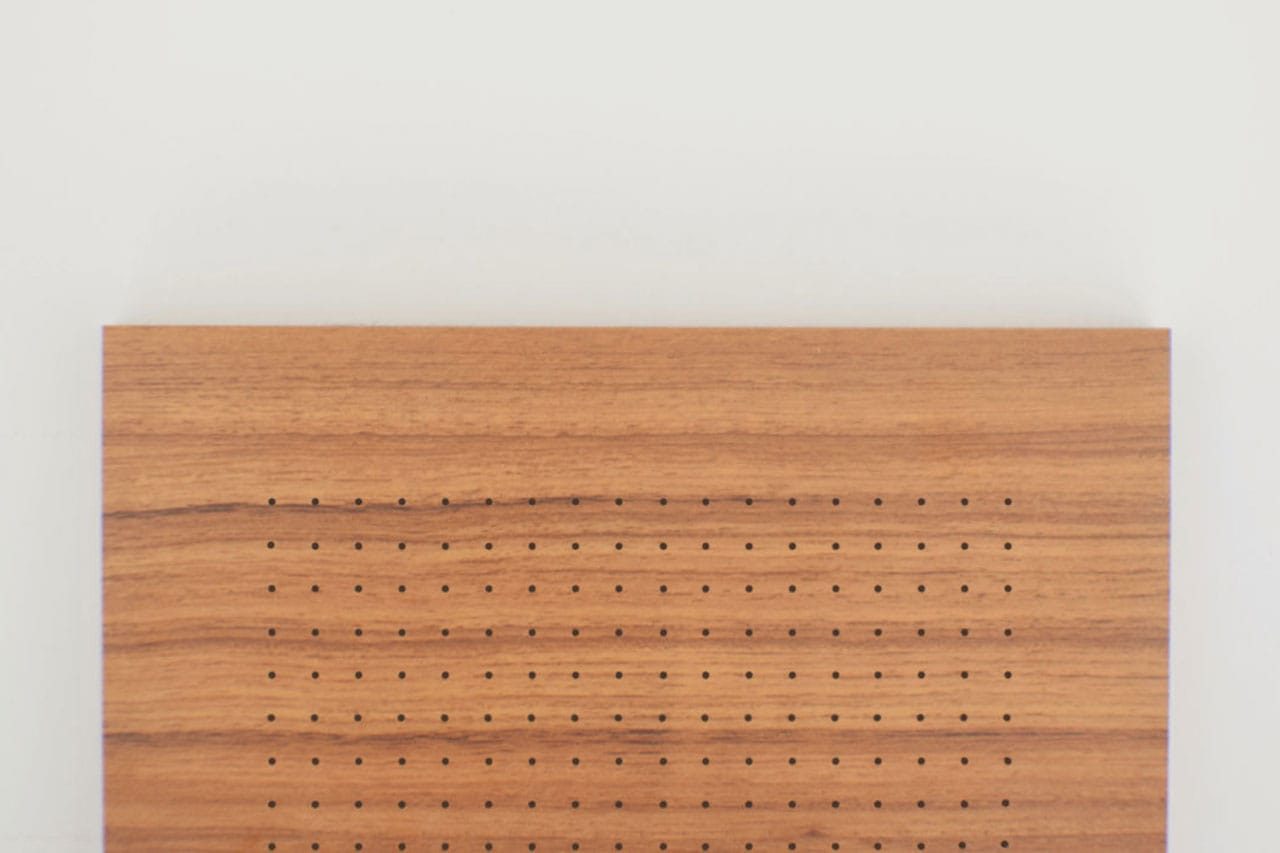

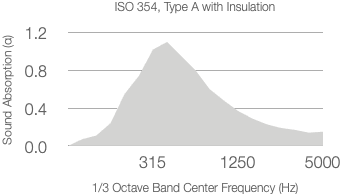

Milliperforated E 8/8/1
Timberix™ E 8/8/1 Milliperforated panels trap sound with a 2-layer perforation and an acoustic substrate to reduce reverberation.

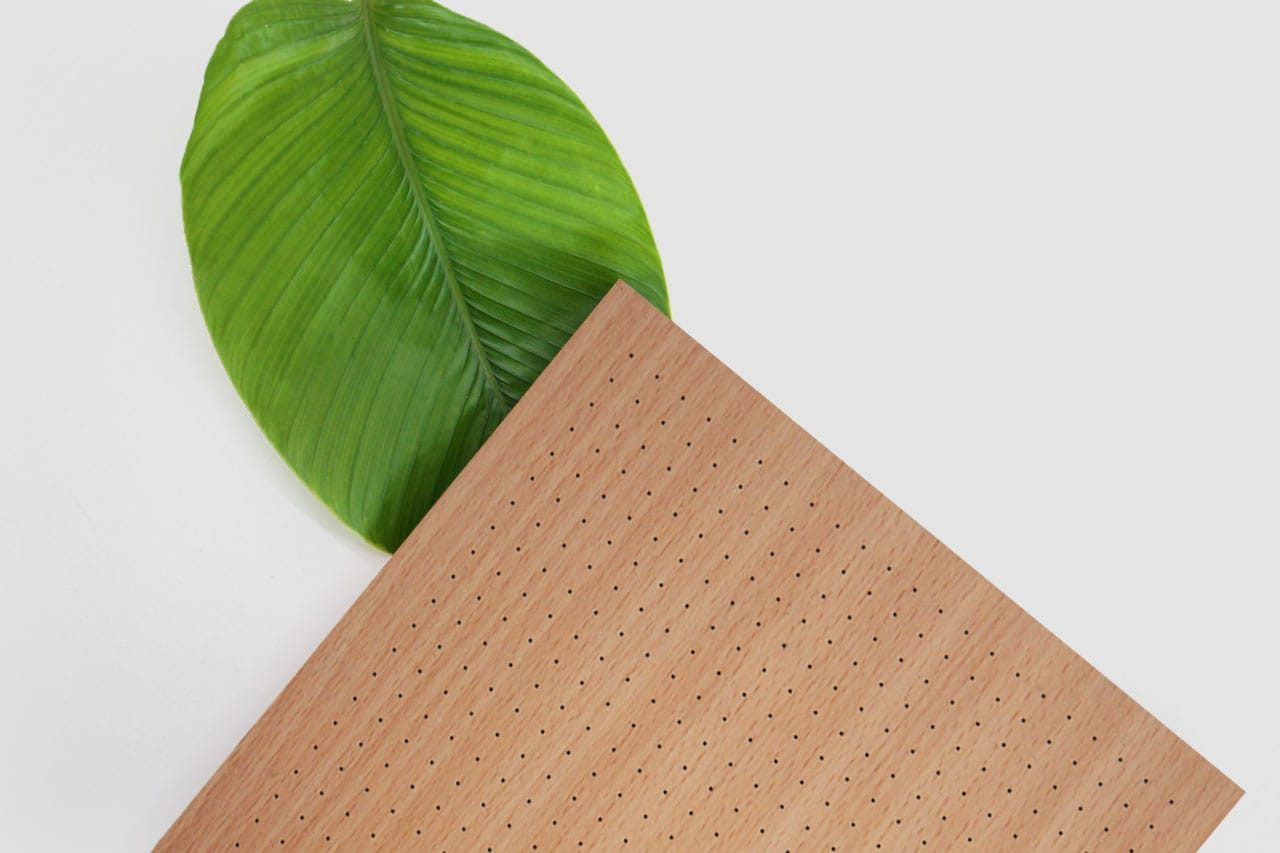

Milliperforated E 8/8/2
Timberix™ E 8/8/2 Milliperforated panels trap sound with a 2-layer perforation and an acoustic substrate to reduce reverberation.

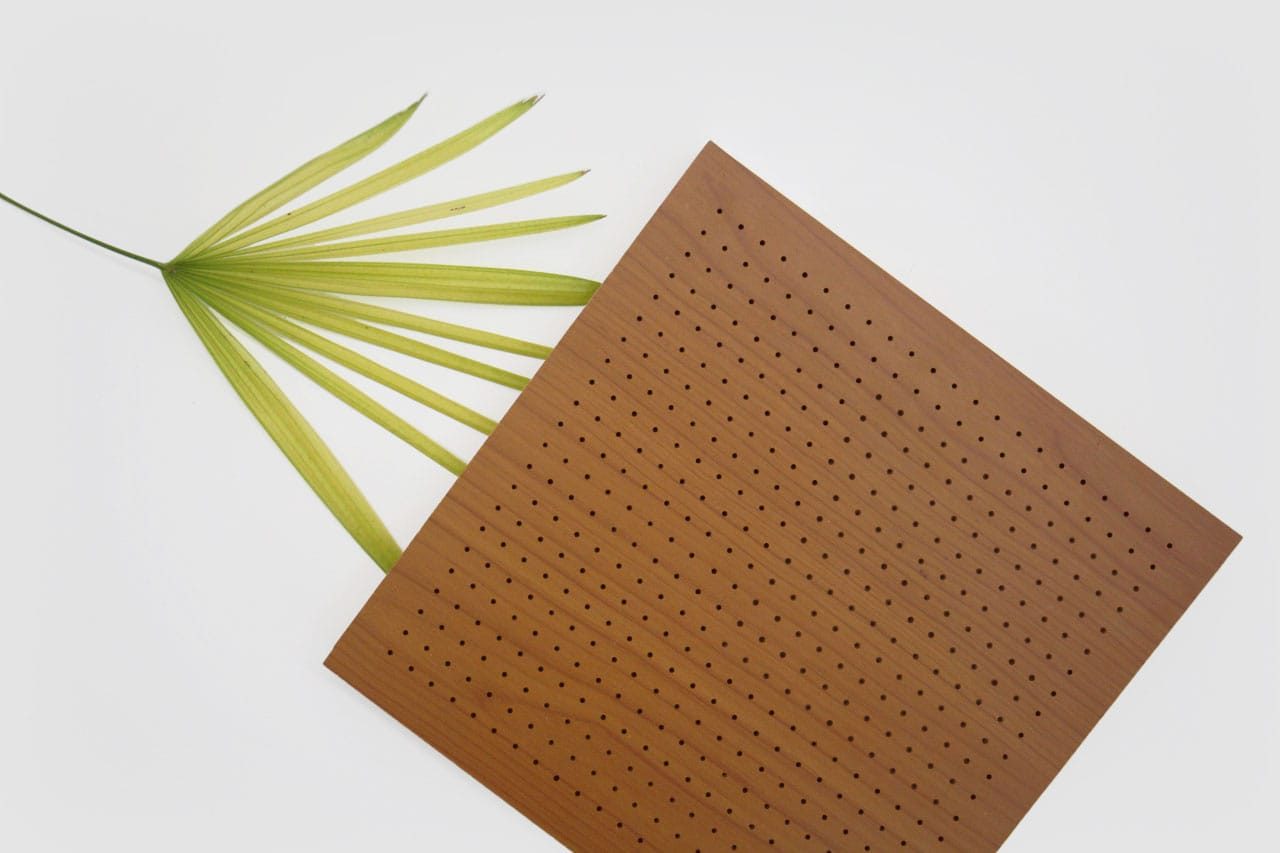

Milliperforated E 8/8/3
Timberix™ E 8/8/3 Milliperforated panels trap sound with a 2-layer perforation and an acoustic substrate to reduce reverberation.
Milliperforated E 16/16/3
Timberix™ E 16/16/3 Milliperforated panels trap sound with a 2-layer perforation and an acoustic substrate to reduce reverberation.

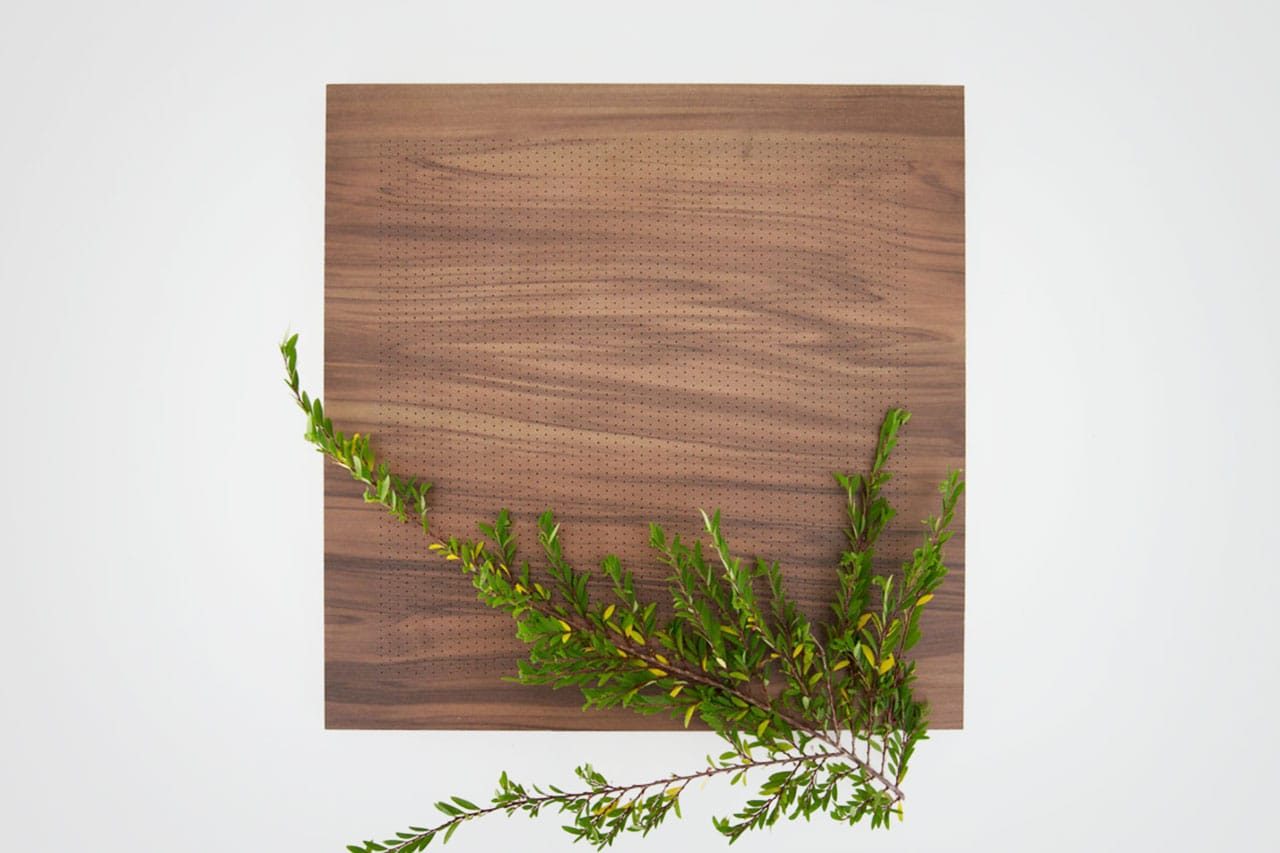

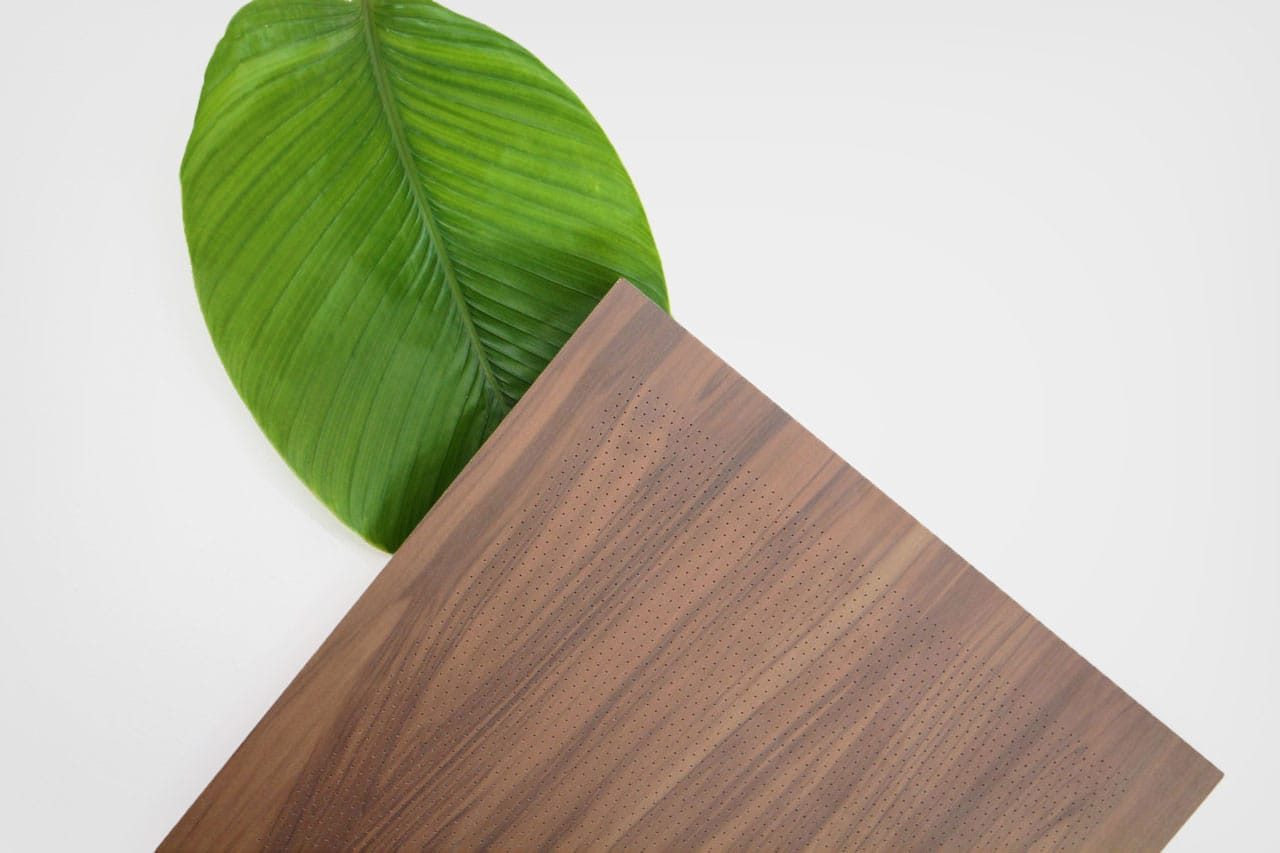

Milliperforated V 8/8/1
Timberix™ V 8/8/1 Milliperforated panels trap sound with a 2-layer perforation and an acoustic substrate to reduce reverberation.

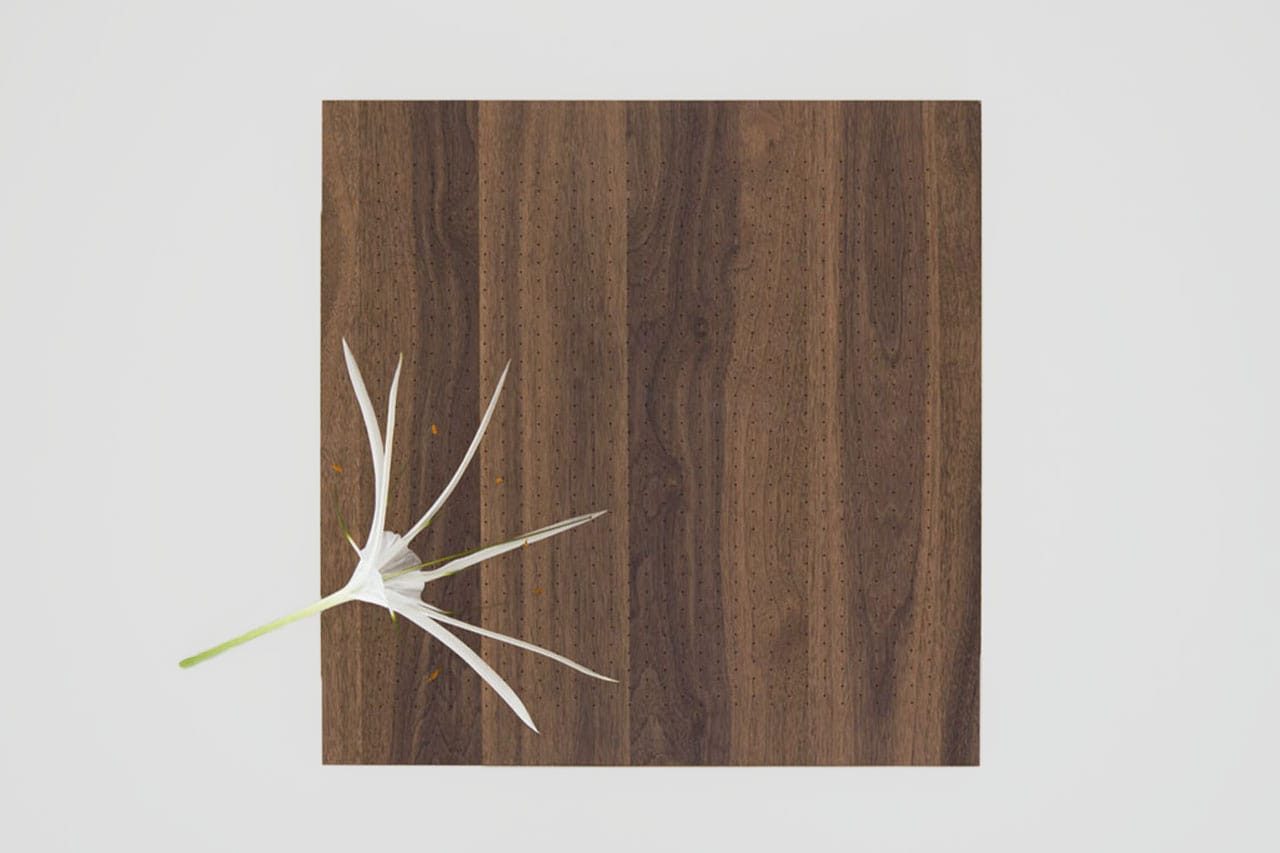

Milliperforated V 8/8/3
Timberix™ V 8/8/3 Milliperforated panels trap sound with a 2-layer perforation and an acoustic substrate to reduce reverberation.
Microperforated

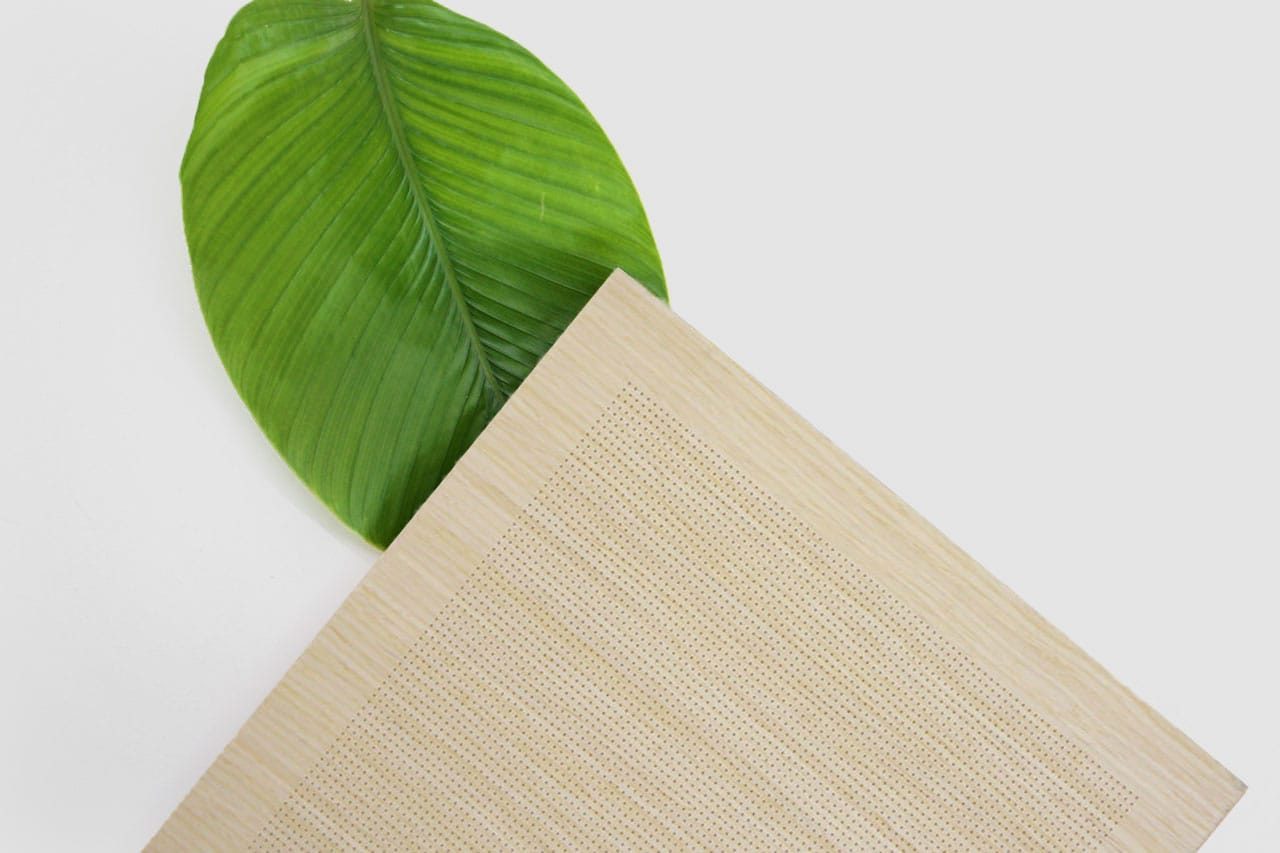

Microperforated E 3/3/0.5
Timberix™ E 3/3/0.5 Microperforated panels trap sound with a 2-layer perforation and reduce reverberation using an acoustic substrate.

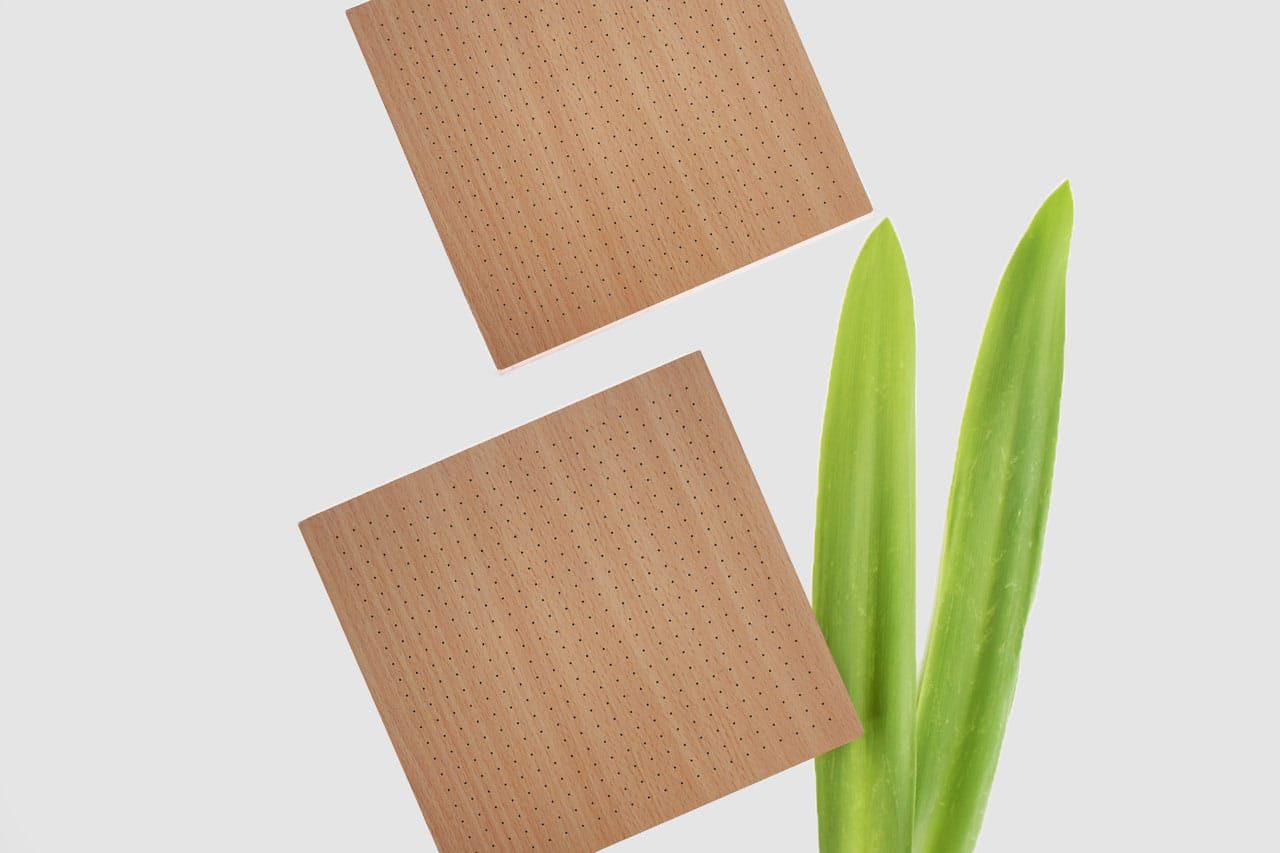

Microperforated E 8/8/0.5
Timberix™ E 8/8/0.5 Microperforated panels trap sound with a 2-layer perforation and reduce reverberation using an acoustic substrate.

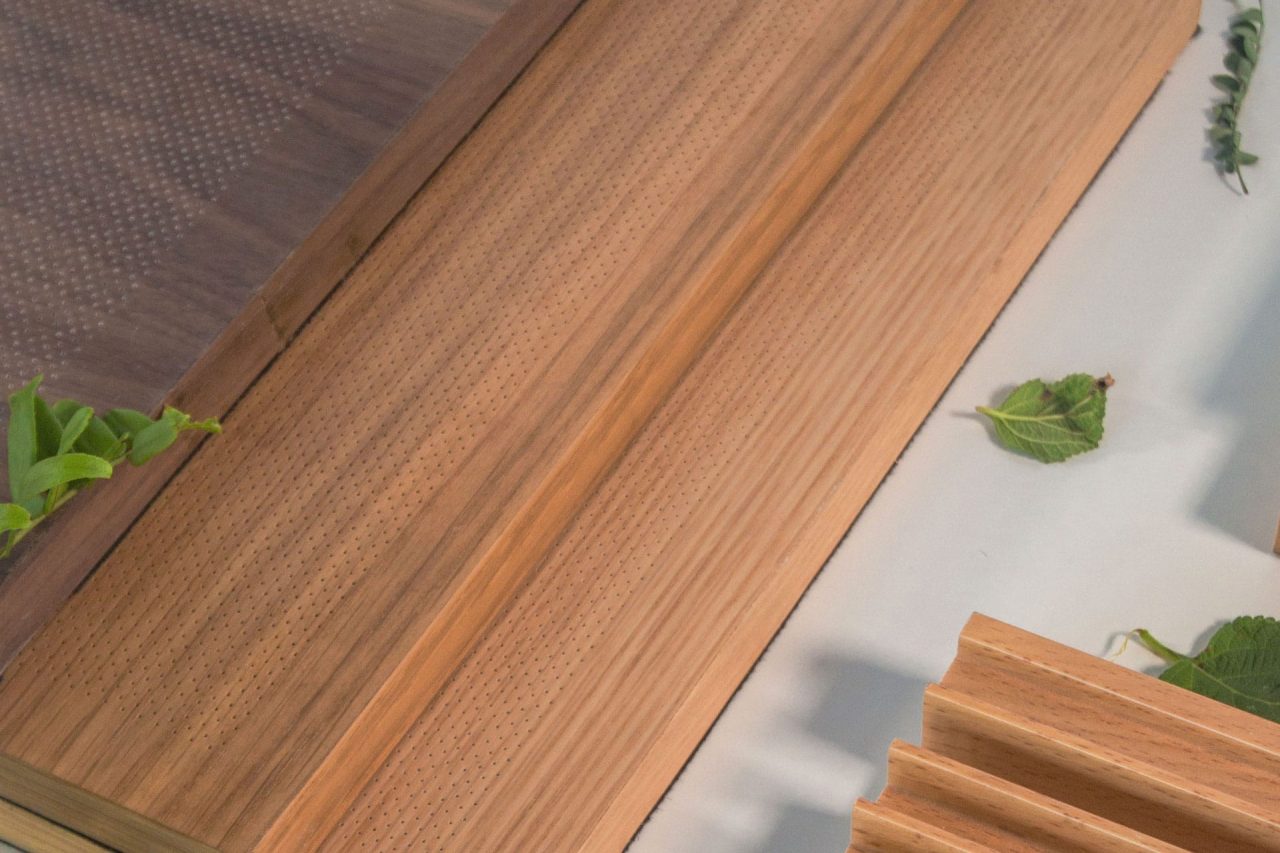

Microperforated V 1.8/1.8/0.5
Timberix™ V 1.8/1.8/0.5 Microperforated panels trap sound with a 2-layer perforation and reduce reverberation using an acoustic substrate.

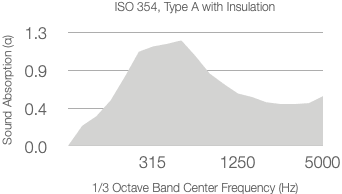

Microperforated V 3.6/1.8/0.5
Timberix™ V 3.6/1.8/0.5 Microperforated panels trap sound with a 2-layer perforation and reduce reverberation using an acoustic substrate.

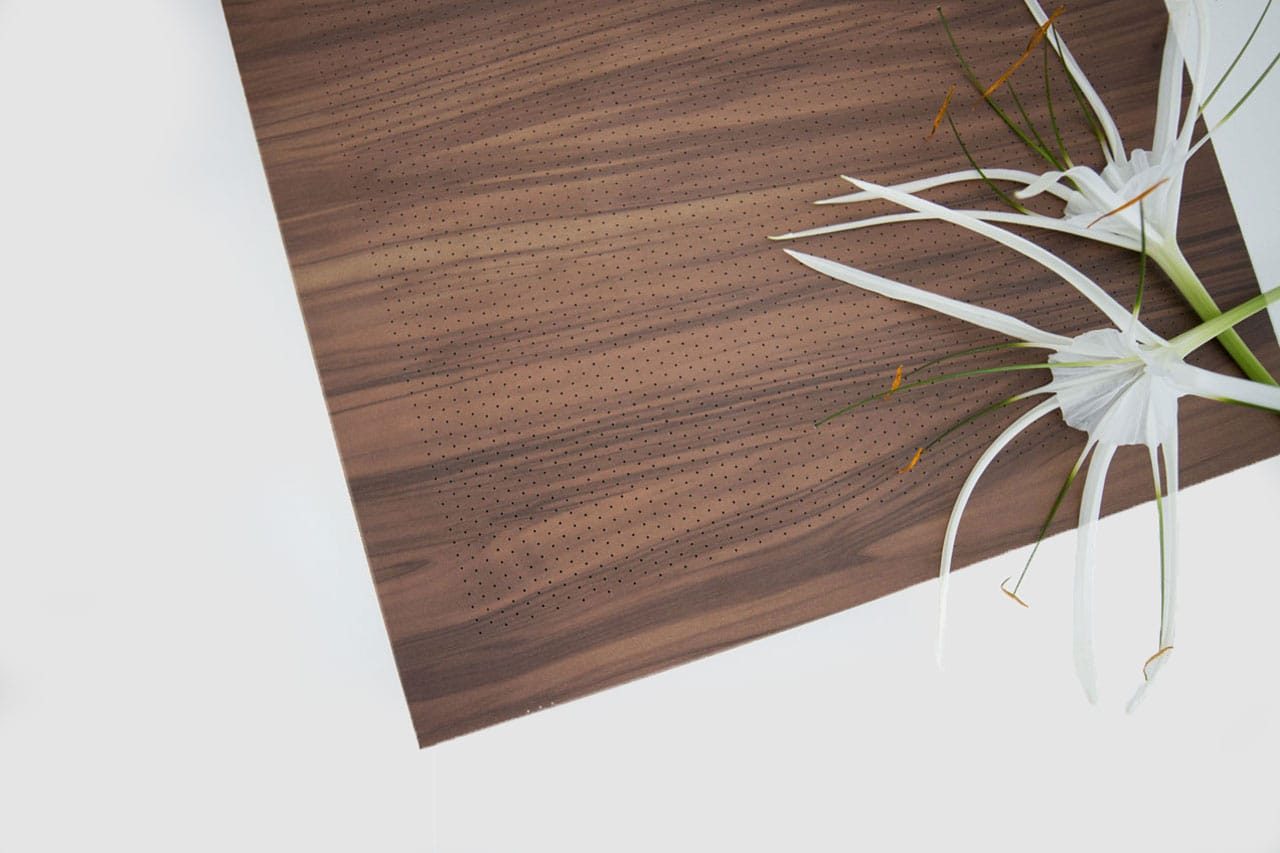

Microperforated V 4/4/0.5
Timberix™ V 4/4/0.5 Microperforated panels trap sound with a 2-layer perforation and reduce reverberation using an acoustic substrate.
Special

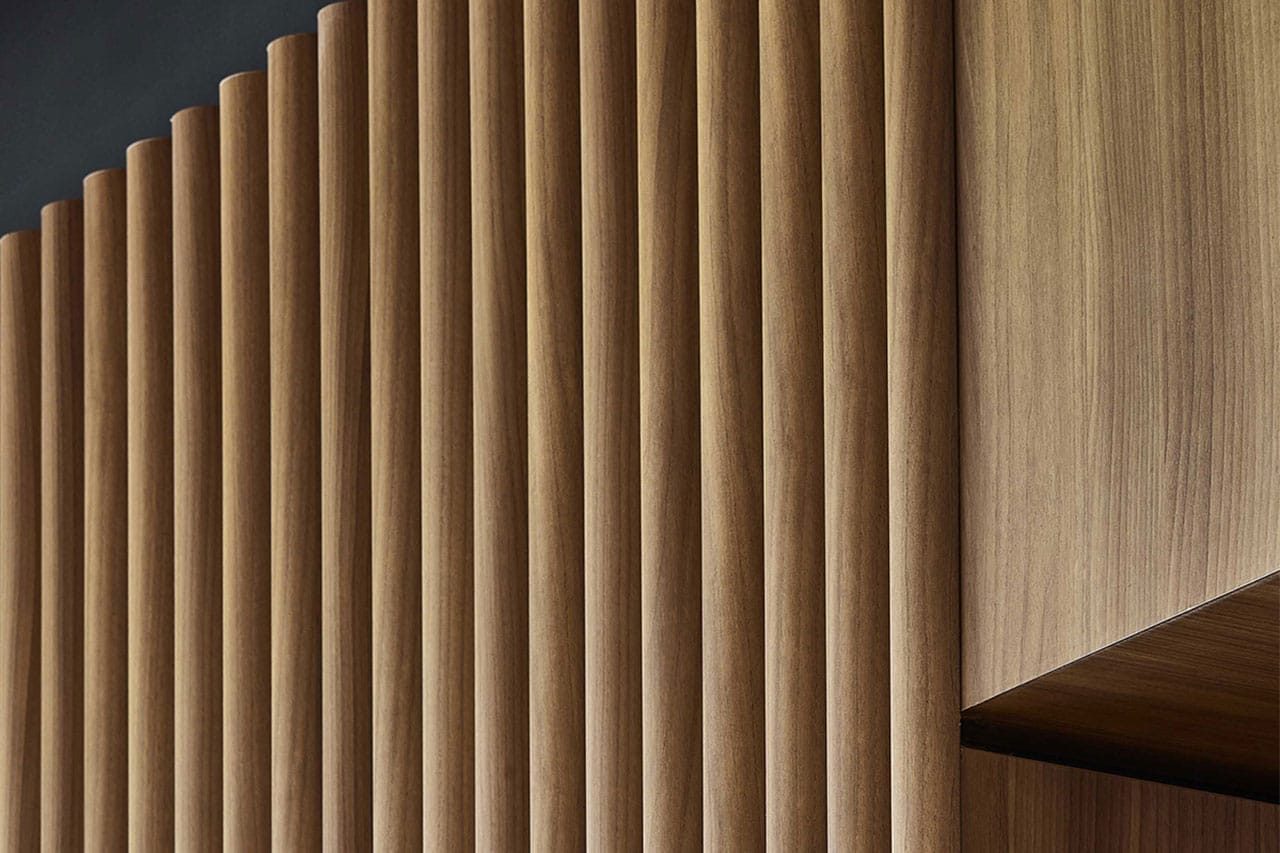

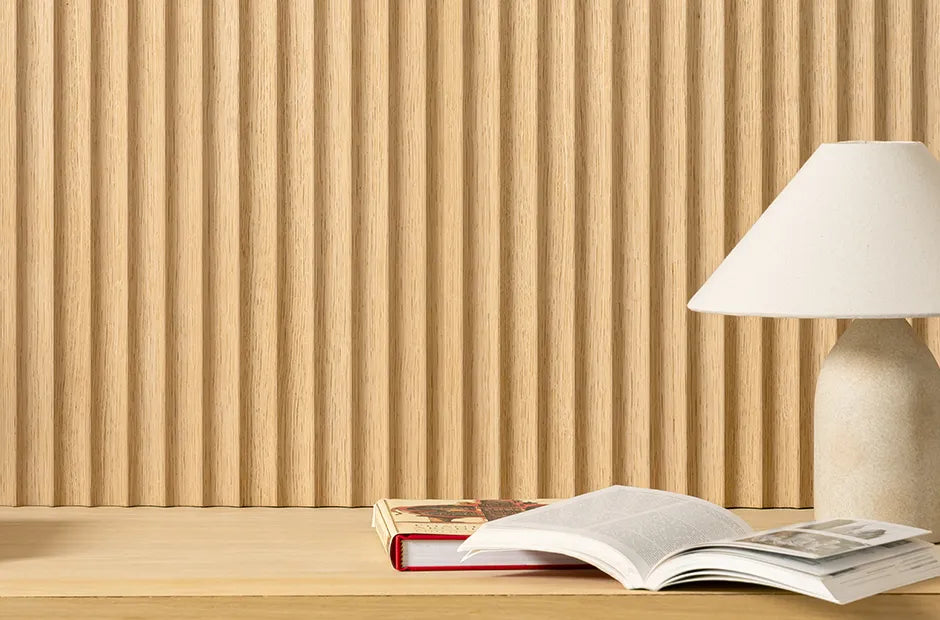

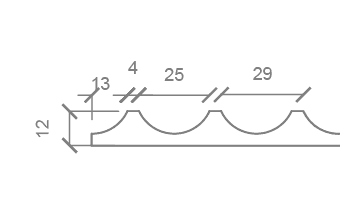

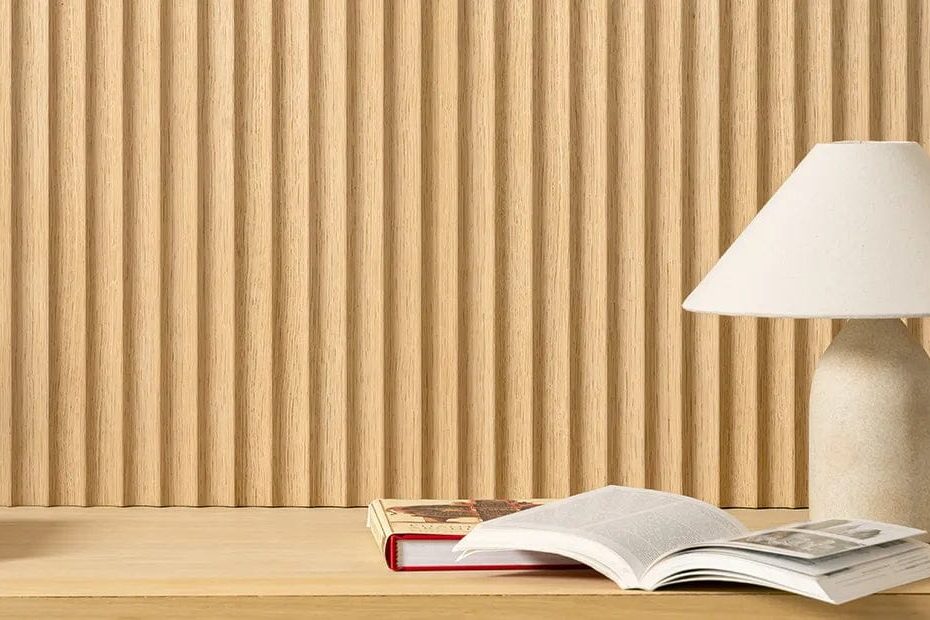

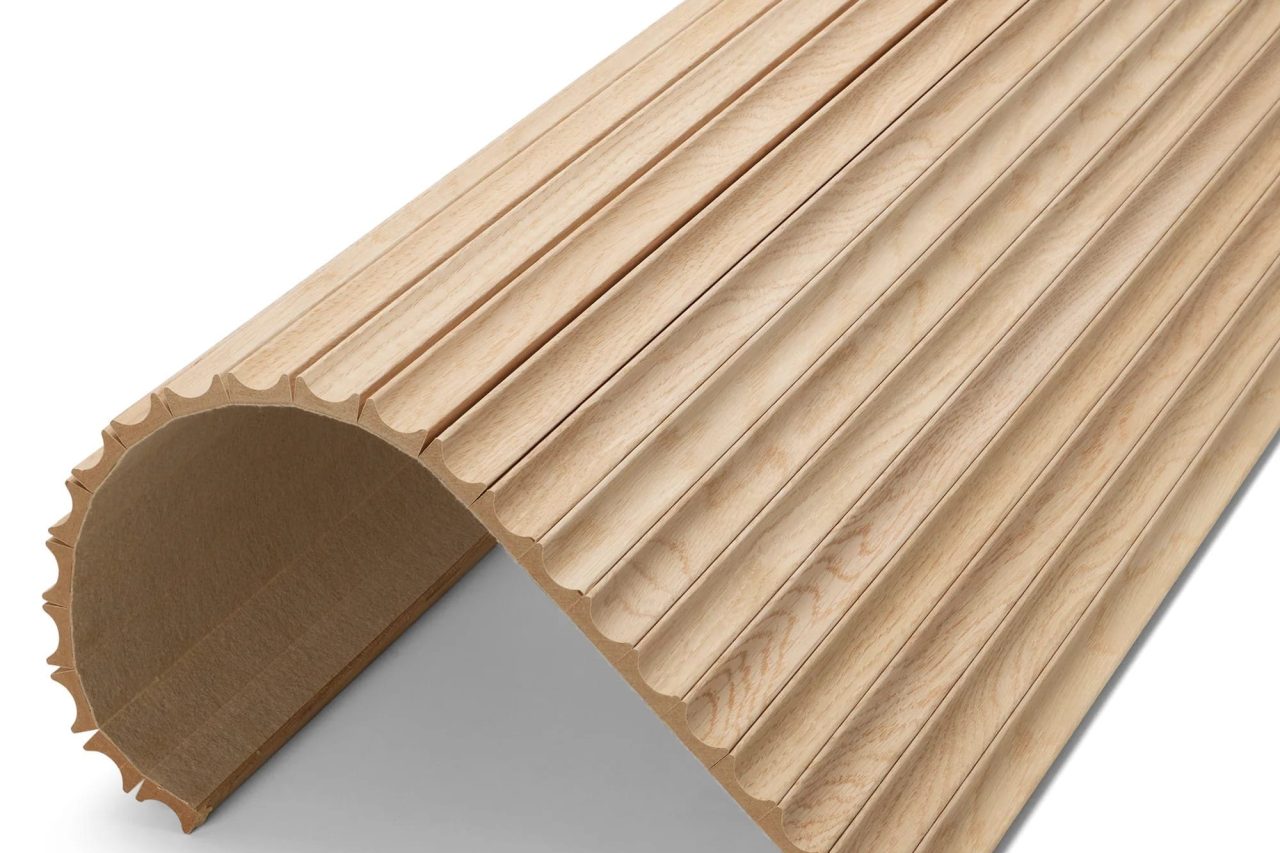

Fluted
Timberix™ Wooden Fluted Panels diffuse sound through surface slots, while an acoustic substrate absorbs noise to reduce reverberation.
Project Highlight

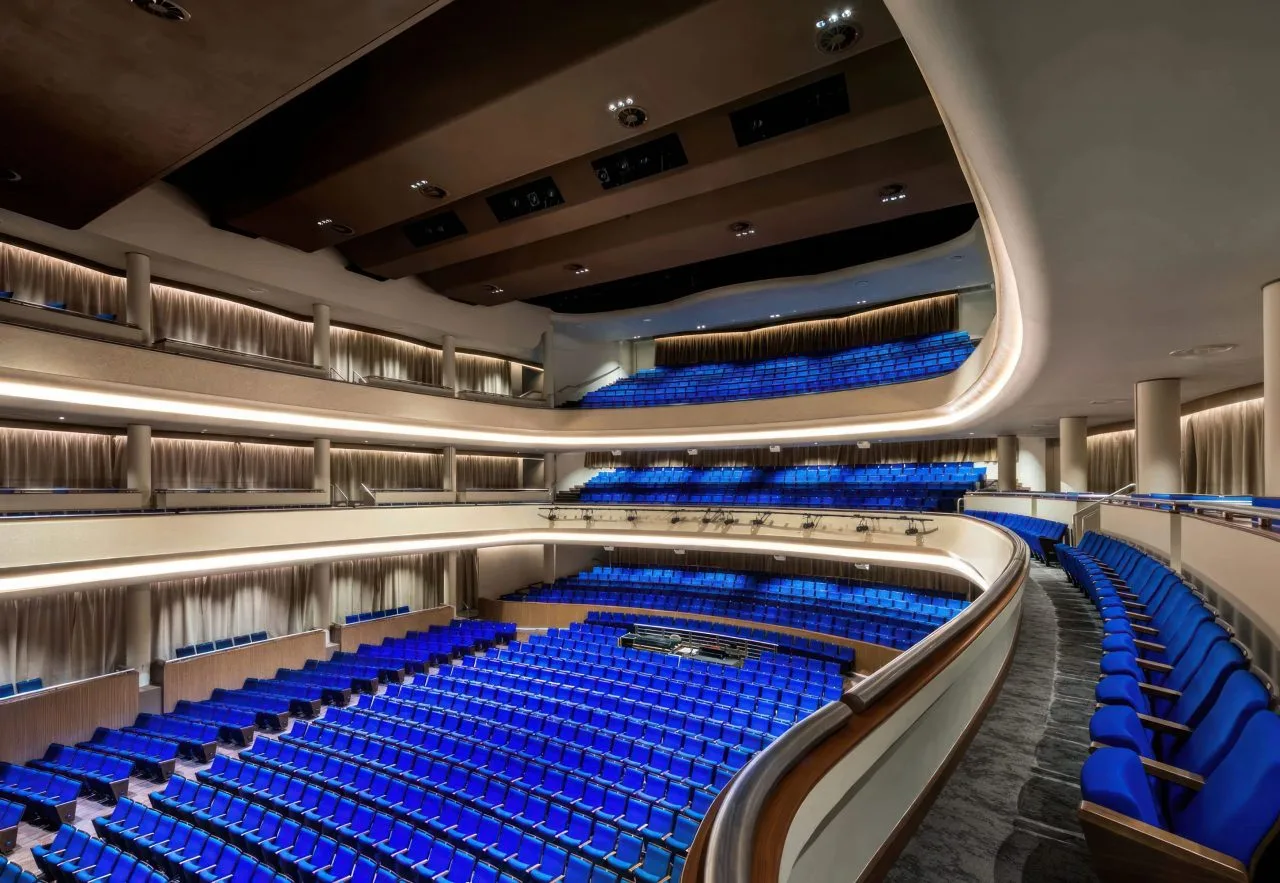

Timberix™ 20/4
The University Cultural Centre, is a world class performing arts centre that facilitates 22 student arts excellence groups in music, dance, theatre and film. The performance hall was designed to achieve an RT60 time of 1.8 – 2.5 seconds. Timberix grooved panels with grooves 20/4, and ugyen and walnut finish were installed onto the walls to achieve the reverberation time.
How Does Timberix™ Timber Acoustic Panel Work?
Timberix™ Timber Acoustic Panels enhance sound absorption using engineered timber slats, perforated wood surfaces, and high-quality natural wood cores. These systems improve sound control, thermal comfort, and overall acoustic quality in every room. Designed in line with architectural interiors, they elevate office and residential décor, resist moisture and mold risk, and deliver practical benefits for customers. As an innovation-driven company, Timberix™ develops timber acoustic solutions that balance acoustic performance, durability, and refined interior aesthetics.
Sound Absorption
In rooms with reflective surfaces and high ceilings, sound waves create echo and excessive reverberation that reduce speech clarity. Timberix™ Timber Acoustic Panels are engineered to absorb sound at the source, helping to control noise levels, improve sound quality, and create a more comfortable environment in offices, auditoriums, and other spaces.
Designed for Architects
Effective acoustics should blend seamlessly with interior design. Timberix™ Timber Acoustic Panels come in a wide range of wood finishes, groove profiles, and panel styles to suit modern offices and public spaces. These timber panels integrate sound control without disrupting the natural warmth and visual identity of the room.
Warranty Guaranteed
High-use environments require acoustic systems that last. Timberix™ Timber Acoustic Panels are engineered with durable, fire-rated, and eco-conscious materials to deliver consistent acoustic performance. Supported by reliable warranty protection, they provide long-term stability, thermal comfort, and peace of mind for customers.
Frequently Asked Questions
Timberix™ Timber Acoustic Panels are designed to improve sound absorption, reduce echo, and enhance speech clarity in offices, classrooms, auditoriums, hospitality venues, and commercial interiors. They also provide thermal comfort, natural material warmth, and fire-rated performance, making them a functional and decorative solution for modern spaces.
Timber acoustic panels deliver a refined architectural finish with groove patterns and microperforations that control sound effectively. Polyester panels are lightweight and flexible, while wood wool panels offer a textured, natural aesthetic. Each material provides unique acoustic, visual, and functional benefits depending on project requirements.
Timber acoustic panels improve acoustics through precision-cut grooves, perforations, and backing materials that absorb and diffuse sound. This reduces reverberation, minimizes echo, and enhances clarity in workspaces, meeting rooms, auditoriums, and other reflective environments.
Yes. They are ideal for offices, retail interiors, hospitality settings, education facilities, and residential applications. Their durability, acoustic performance, and premium aesthetic make them well-suited for both functional and design-driven environments.
Absolutely. Timber acoustic panels can be customized in groove patterns, perforation styles, finishes, colors, thicknesses, and panel sizes. This allows designers to achieve specific acoustic goals while maintaining a cohesive visual identity across interior spaces.
